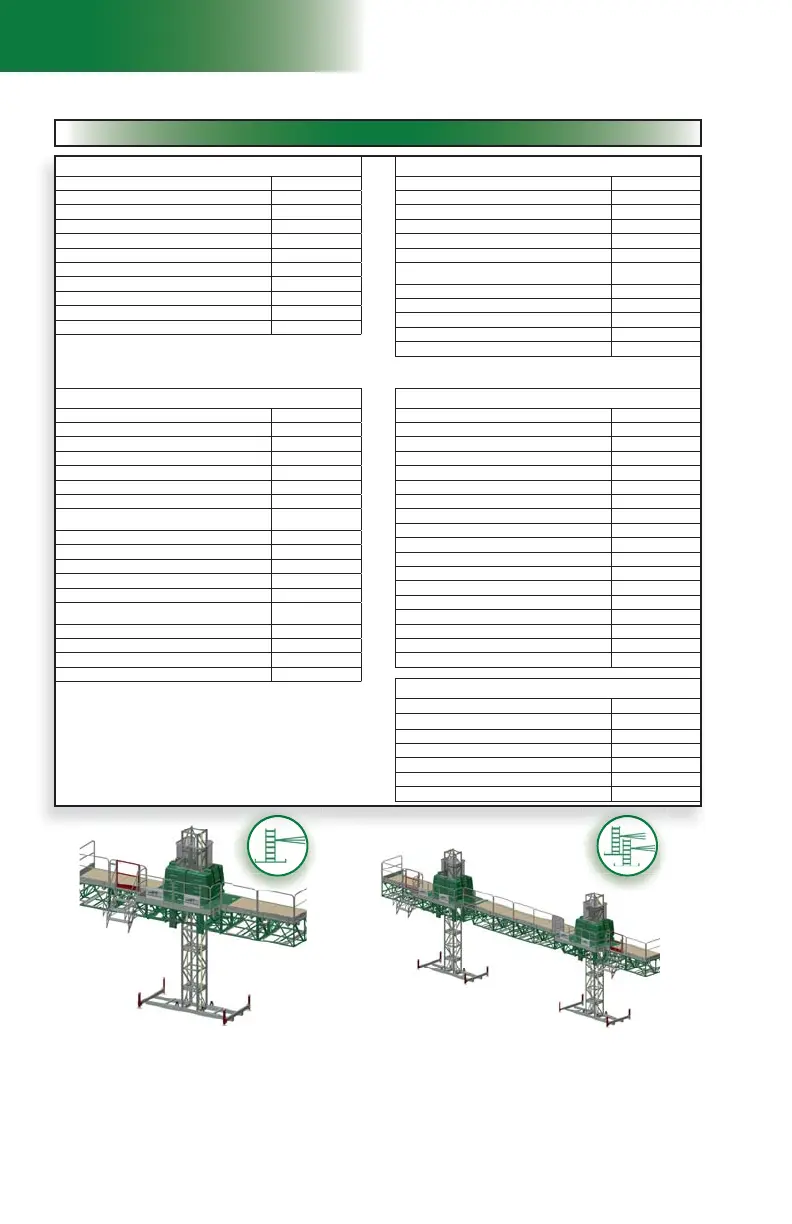

1 - M U
Motorized Unit Specifi cations
BRIDGES (including guardrails)
Description Weight
30" (76 cm) bridge assembly 290 lb (132 kg)
5' (1,5 m) bridge assembly 390 lb (177 kg)
10' (3 m) bridge assembly 720 lb (327 kg
Swivel bridge assembly 800 lb (363 kg)
33" (84 cm) multi purpose bridge 310 lb (141 kg)
Twin mast adapter assembly
(without guardrail)
330 lb (150 kg)
30" (76 cm) deck extension (with outrigger) 96 lb (44 kg)
33" (84 cm) deck extension (with outrigger) 102 lb (46 kg)
60" (1,5 m) deck extension (with outrigger) 124 lb (56 kg)
Swivel bridge counterweight adapter 175 lb (79 kg)
Swivel bridge outrigger adapter 60 lb (27 kg)
UNITS and components
Description Weight
F300 Motorized unit (gas-powered, as shipped) 8400 lb (3810 kg)
F200 Motorized unit (gas-powered, as shipped) 6700 lb (3030 kg)
F300 Motorized unit (electrical, as shipped) 9400 lb (4264 kg)
F200 Motorized unit (electrical, as shipped) 7200 lb (3266 kg)
Base extension 275 lb (125 kg)
Base with extensions and one full mast section 1235 lb (560 kg)
Trolley link 60 lb (27 kg)
Link bridge (
LEFT or RIGHT) 165 lb (75 kg)
Mast guard 30 lb (14 kg)
Mast head 125 lb (57 kg)
GUARDRAILS and OUTRIGGERS
Description Weight
27" (69 cm) guardrail (without adapter bracket) 32 lb (15 kg)
30" (76 cm) guardrail (without adapter bracket) 32 lb (15 kg)
33" (84 cm) guardrail (without adapter bracket) 33 lb (15 kg)
60" (1,5 m) guardrail (without adapter bracket) 50 lb (23 kg)
60" (1,5 m) door guardrail 100 lb (45 kg)
Guardrail adapter bracket 4 lb (2 kg)
Twin mast adapter guardrail 45 lb (20 kg)
Movable guardrail 65 lb (29 kg)
Plank-end guardrail 25 lb (11 kg)
Link bridge guardrail 59 lb (27 kg)
Swivel bridge “A” guardrail 16 lb (7 kg)
Swivel bridge “B” guardrail 42 lb (19 kg)
Swivel bridge “C” guardrail 49 lb (22 kg)
63" (1,6 m) outrigger 17 lb (8 kg)
72" (1,8 m) outrigger 27 lb (12 kg)
84" (2,1 m) outrigger 45 lb (20 kg)
120" (3,04 m) outrigger 55 lb (25 kg)
ACCESSORIES
Description Weight
Access stairs assembly 83 lb (38 kg)
Access stairs handrail 21 lb (10 kg)
Access stairs extension 25 lb (11 kg)
Jib arm complete assembly 140 lb (63 kg)
Jib arm top assembly 108 lb (49 kg)
Jib arm bottom assembly 32 lb (14 kg)
Hoist support structure
(including beam; hoist not included)
485 lb (220 kg)
Weather protection – X brace (all lengths) 10 lb (4 kg)
Weather protection – frame truss extension 15 lb (7 kg)
Weather protection – frame assembly 85 lb (39 kg)
Weather protection – frame with extension 100 lb (45 kg)
Weather protection – center frame assembly 44 lb (20 kg)
Weather protection – frame truss extension
for monorail
17 lb (8 kg)
Junction plate assembly 19 lb (9 kg)
Monorail beam 85 lb (42 kg)
Adapter base for freestanding installation 2500 lb (1134 kg)
Adapter base for sidewalk canopy installation 2000 lb (907 kg)
Mast and Mast Ties
Description Weight
Mast assembly (2 racks) 365 lb (166 kg)
Mast assembly (1 rack) 330 lb (150 kg)
Mast tie frame 50 lb (23 kg)
Mast tie 36" (91 cm) 16 lb (7 kg)
Mast tie extension 36” (91 cm) 13 lb (6 kg)
Mast tie extension 60" (1,5 m) 20 lb (9 kg)
Weight of Components
Typical single unit installation
• One F2 Series motorized unit
• Two (2) 10' (3 m) bridges
Typical multiple unit installation
• Two F2 Series motorized units
• Two (2) twin mast adapters
• Four (4) 10' (3 m) bridges
Note: Access stairs and ramps shown in illustrations above are optional
