4 - P P C
1- Make sure that the motorized unit has been installed following the installation instructions
starting on p. 17 in the Motorized Unit section and that it can be operated safely.
Make sure also that the overspeed safety device is not engaged. For more information
on the overspeed safety device, refer to p. 46 of the Safety Devices section.
2- Check the hydraulic oil level to make sure it is in the
FULL range on the dipstick. If
necessary, remove the left plastic hood next to the control panel (fi g. 4.2) and replenish
with hydraulic oil. It is important to use a hydraulic oil recommended by Hydro Mobile.
3- Check the gasoline level and refi ll if necessary. During the operation of the motorized
unit, if the low gasoline level alert is displayed on the screen of the control panel (see
p. 77 of the Control Panel section), the gasoline tank must be refi lled immediately.
4- Lift the left power pack access panel and check the engine oil level (fi g. 4.8). If necessary,
refi ll in accordance with the specifi cations in the Honda engine user’s manual. Put the
access panel back in place.
5- Lift the right power pack access panel and turn the gasoline supply shutoff valve to
the
ON (operating) position, in line with the hose (fi g. 4.6). Put the access panel back
in place.
6- For a confi guration using an F300 unit model, perform steps 1 through 5 on each side.
7- If the motorized unit is brand-new, was transported from one job site to another or was
stored for a signifi cant length of time, connect the battery.
8- If the motorized unit is used in cold weather, it is recommended to use the optional
hydraulic oil heater/recirculator. For instructions on the use of the optional hydraulic
oil heater/recirculator, refer to p. 129 of the Accessories section.
Startup preparation instructions

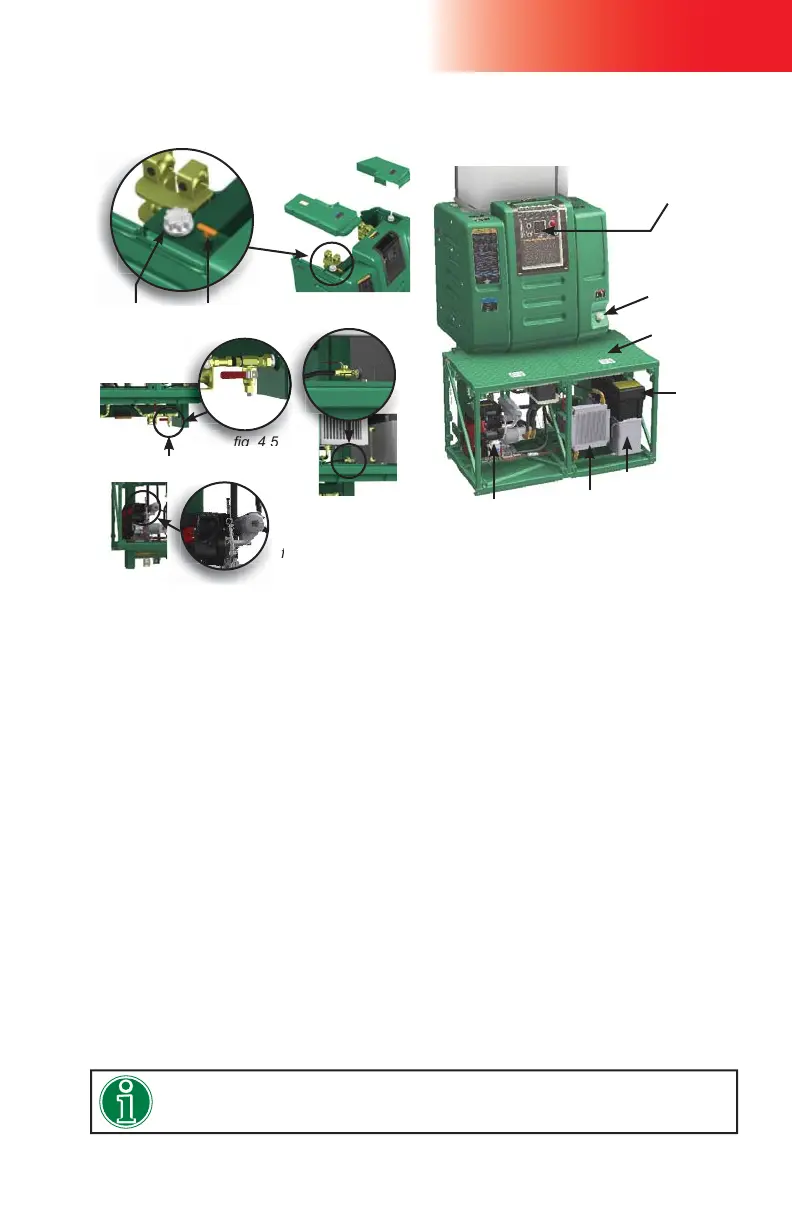

Power Pack and Components
Gas-powered unit
Control panel and
engine controls
Gasoline tank
fi ller cap
Power pack
access panel
Toolbox
Gas tank
Oil cooler
Engine
Engine oil dipstick
Hydraulic tank drain valve
Hydraulic
tank fi ller
cap
Hydraulic
oil dipstick
Gasoline supply
shutoff valve
NOTE
If the motorized unit is used in cold weather, it is recommended to use the
optional hydraulic oil heater/recirculator.
