Hydro Mobile F200 - Mast Tie Requirements for Plank Confi Gurations; Wind Speeds

90
A
B
C
E
F
D
E
A
A
fi g. 6.20 fi g. 6.21
fi g. 6.22
fi g. 6.23
D
E
C
D
6 - M  M T
Mast Ties

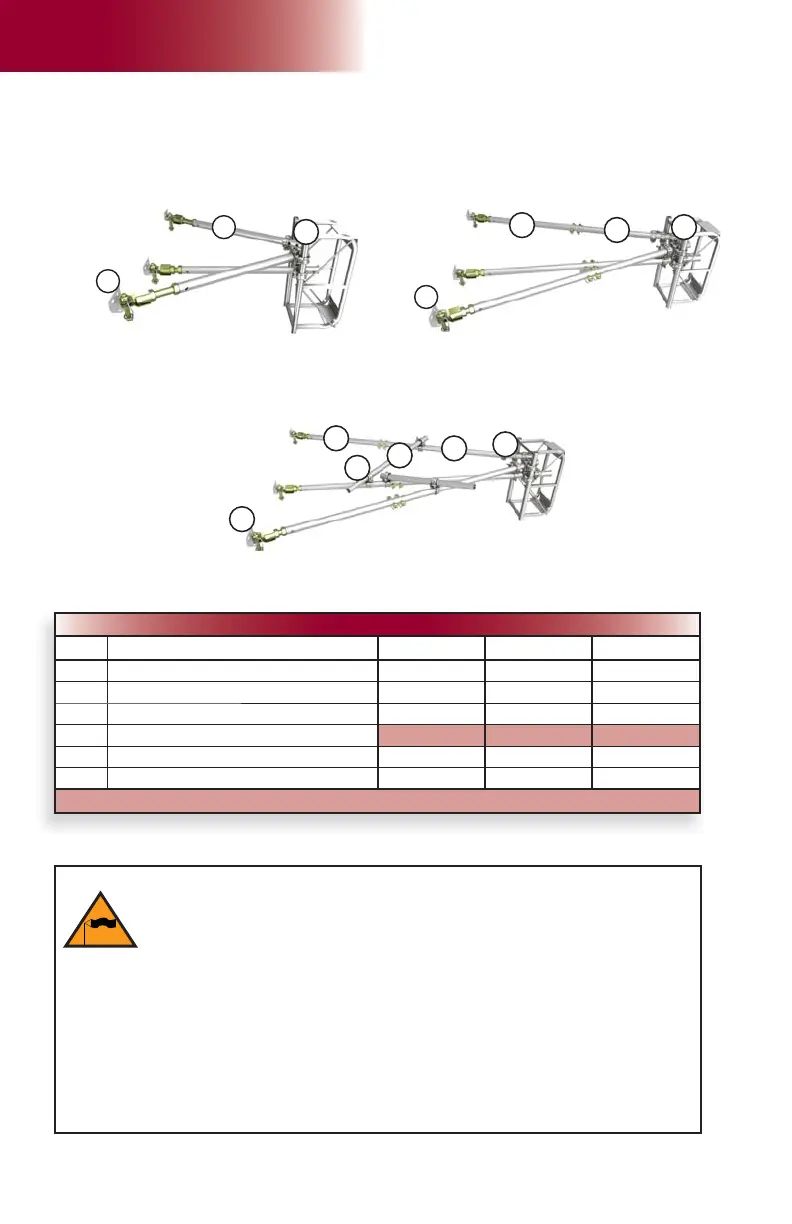

Mast tie requirements according to plank confi guration
0-3 planks 4-5 planks
6-8 planks
g
MAST TIE REQUIREMENTS FOR PLANK CONFIGURATION
Ref Component 0-3 PLANKS 4-5 PLANKS 6-8 PLANKS
A 36" (91,4 cm) mast tie assembly 3 3 3
B 60" (1,5 m) mast tie extension assembly 3
C 36" (91,4 cm) mast tie extension assembly 3 2
D rigid dual clamps 3 9 9
E wall tie brackets 3 3 3
F swivel dual clamps 4
Note: The quantity of rigid dual clamps required will vary according to the type of confi guration.
WARNING - WIND SPEEDS
The erection and dismantling of a motorized unit setup (including the base, the
bridges, the masts, the mast ties and all the other components) must not be conducted
when wind speeds exceed 28 mph (45 km/h). Freestanding installations and setups
equipped with weather protection, when allowed, must not be used with wind
speeds exceeding 28 mph (45 km/h). Weather protection, when allowed, must not
be used when work is performed on an open air structure. A motorized unit setup
with mast ties must not be operated when wind speeds exceed 35 mph (56 km/h).
If wind speeds are expected to exceed 102 mph (164 km/h), the motorized unit must
be brought down to base level.
When a freestanding installation is not in use:
• The motorized unit must be brought down to base level
When a tied installation is not in use:
• It is mandatory to leave the platform between two tie levels
• All loads must be removed from the setup, except all counterweights applied on
the setup
