103
1000 lb
454 kg
Total 2000 lb
907 kg
10' (3 m)
1000 lb
454 kg
1500 lb
680 kg
1000 lb
454 kg
Total 2500 lb
1134 kg
500 lb
227 kg
1000 lb
454 kg
10' (3 m)
fi g. 6.18
fi g. 6.19
7 - L C
Load Capacities

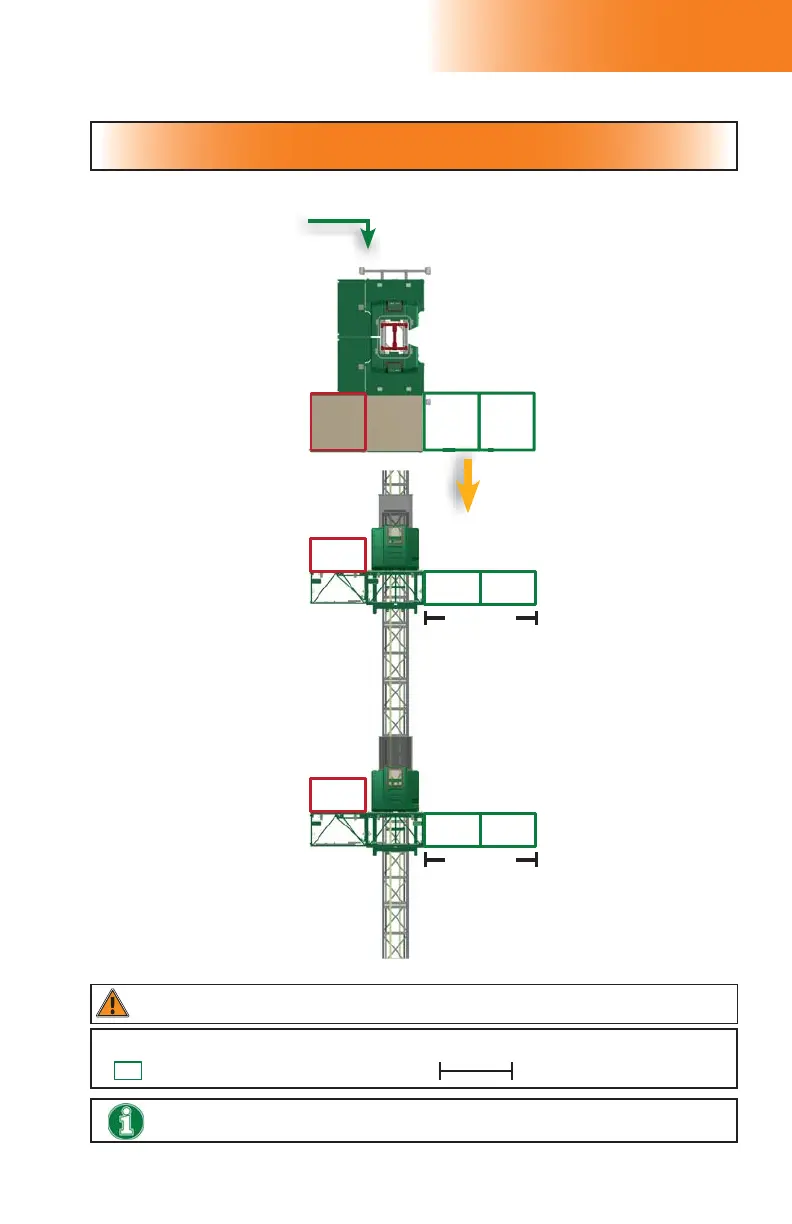

Swivel bridge installation with counterweight adapter – two bridges
Swivel bridge installation with counterweight adapter – two bridges
(linked or unlinked)
To ensure safety at all times, refer to load calculation guidelines and warnings on p. 94.
LEGEND
5' (1,5 m) bridge assembly Length of bridge setup
View from top
Side view
At this end, it is mandatory to install a
bridge
. The only bridge confi gurations
allowed at this end are the following:
Any cantilever configuration (see
p. 95 for a linked cantilever or
p. 97 for an unlinked cantilever)
— OR —
any bearing bridge confi guration (see
p. 96 for a linked confi guration or
p. 98 for an unlinked confi guration.
— OR —
any swivel bridge confi guration
shown in this chart.
WARNING
The use of weather protection is
NOT ALLOWED for swivel bridge installations.
NO CONFIGURATION OTHER THAN
THOSE ABOVE ALLOWED AT THIS
END
