Hypertherm HyPerformance Plasma HPR400 User Manual

OperatiOn

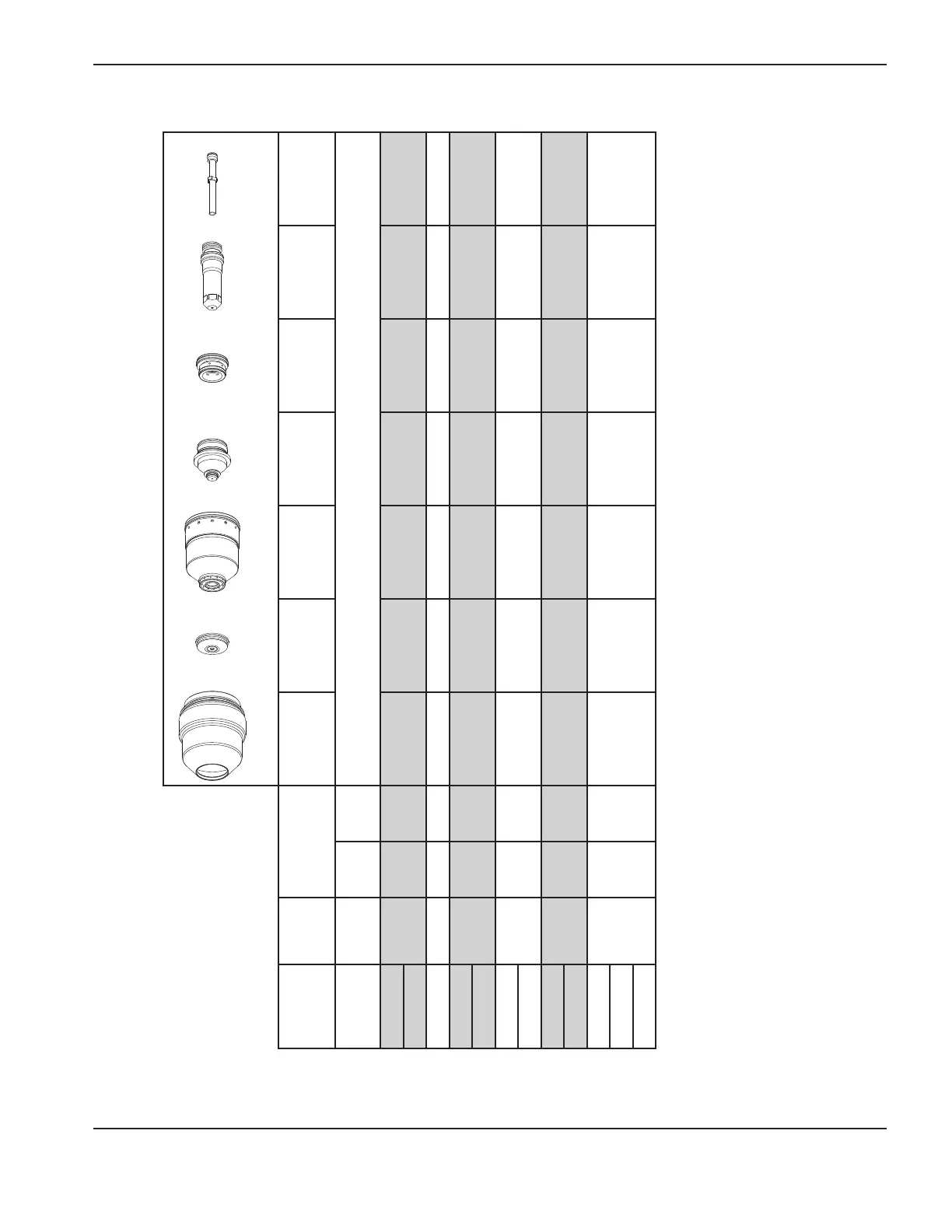

HPR400XD Auto Gas – 806160 4-39
Mild steel Fine Feature Consumables
30 A to 260 A
English
Material
Thickness
Current Select Gases Shield Cap Shield
Nozzle
Retaining
Cap
Nozzle Swirl Ring Electrode Water Tube
in Amps
Plasma
gas
Shield
gas
Part Number
0.135
30 O
2
O
2
220747 220194 220754 220193 220180 220192 220340
3/16
1/4 50 O
2
O
2
220747 220555 220754 220554 220553 220552 220340
5/16
80 O
2
Air 220747 220189 220756 220188 220179 220187 220340
3/8 3/8
130 O
2
Air 220747 220183 220756 220182 220179 220181 220340
1/2 5/8
200 O
2
Air 220637 220761 220757 220354 220353 220352 220340
3/4 3/4
260 O
2
Air 220637 220764 220760 220439 220436 220435 2203407/8
1

Hypertherm HyPerformance Plasma HPR400 Specifications

General

Duty Cycle	100% at 400 A
Cutting Capacity	up to 50 mm (2 in)
Output Current	30-400 A
Input Voltage	200 – 480 V, 3-PH, 50/60 Hz
Gas Supply	Oxygen, Air, Nitrogen
