Hypertherm XPR170 Replacement Part Procedures

Torch
4
XPR170 Field Service Bulletin 810410 129

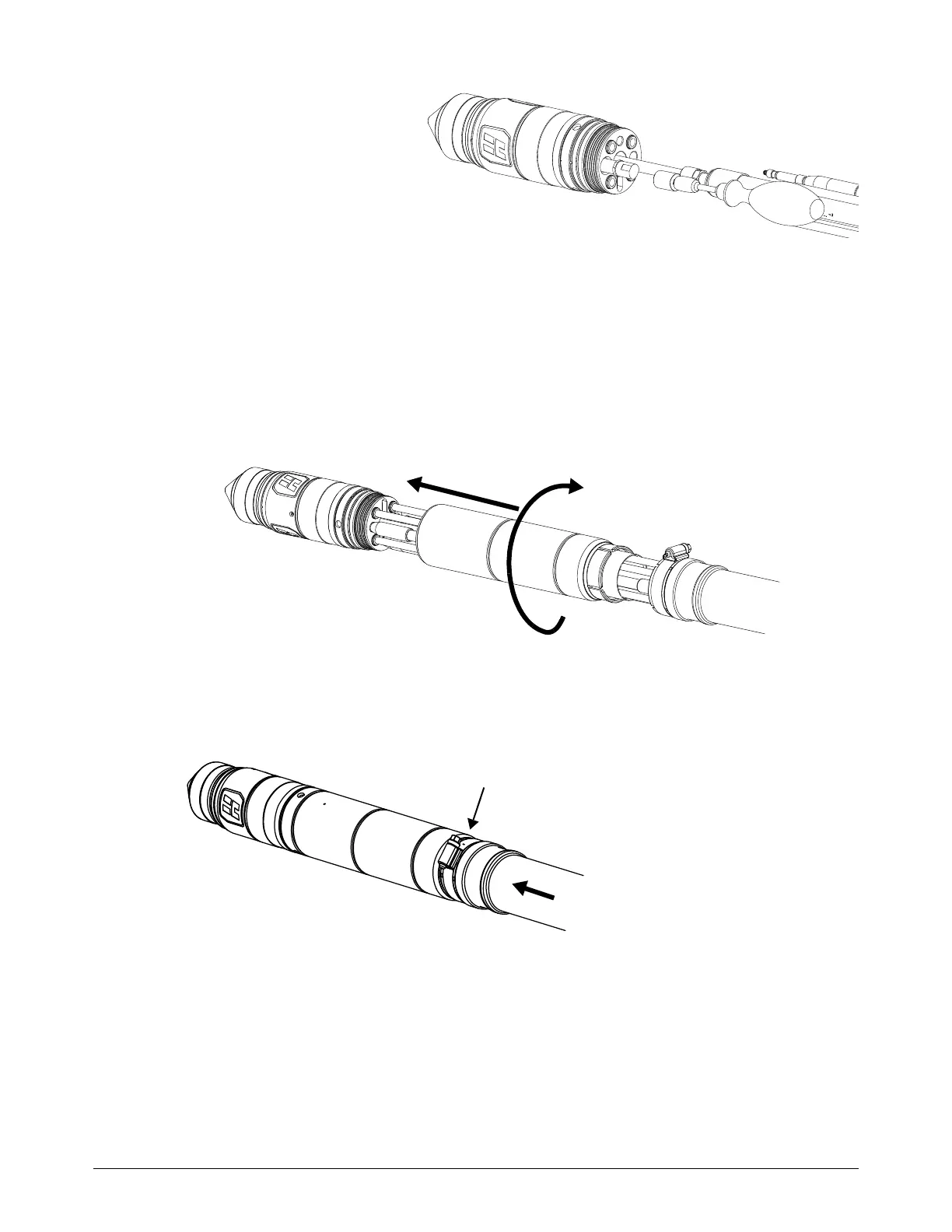

5. Use the tool (229918) to remove
the solenoid valve.
6. Use the tool (229918) to install
the solenoid valve.
7. Connect the plasma valve
connector.
8. Install the torch mounting sleeve:
a. Move the torch mounting sleeve in the direction of the torch.
b. Use your hands to tighten the torch mounting sleeve connection.

A spanner wrench (104879) comes with all 4 of the consumable parts kits
(428616, 428617, 428618, 428619). Do not over tighten the torch
mounting sleeve if you use the spanner wrench to stabilize the torch
during mounting sleeve installation.
9. Reposition the collar on the torch-end of the torch lead:
a. Move the collar in the direction of the torch-end of the torch lead assembly.
b. Tighten the hose clamp that holds the collar in position.
Tighten the clamp
Move the collar in the direction of the torch
