Hypertherm XPR170 Replacement Part Procedures

Parts List
5
XPR170 Field Service Bulletin 810410 165

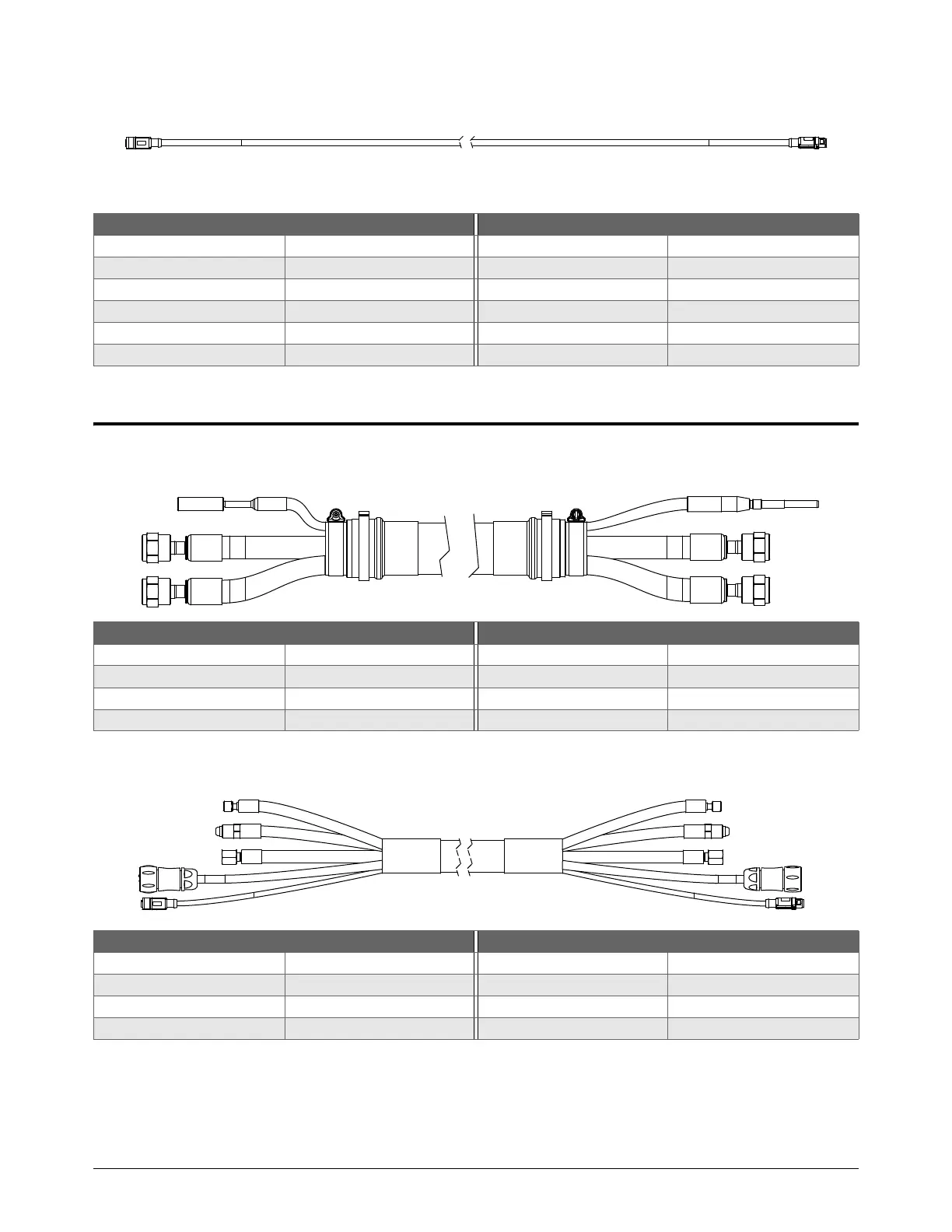

CAN cable
Description: 5-position, male-female
Gas connect console to torch connect console connections
Pilot arc and coolant hose set assembly (Core)
Power, CAN, and 3-gas assembly (Core)
Part number Length Part number Length
223417 3 m (9.8 feet) 223427 25 m (82 feet)
223418 4.5 m (14.8 feet) 223428 35 m (114.8 feet)
223420 7.5 m (24.6 feet) 223429 45 m (147.6 feet)
223422 10 m (32.8 feet) 223430 60 m (196.9 feet)
223425 15 m (49.2 feet) 223431 75 m (246.1 feet)
223426 20 m (65.6 feet) – –
Part number Length Part number Length
428454 3 m (9.8 feet) 428458 10 m (32.8 feet)
428455 4.5 m (14.8 feet) 428459 15 m (49.2 feet)
428456 6 m (19.7 feet) 428083 18 m (59.1 feet)
428457 7.5 m (24.6 feet) – –
Part number Length Part number Length
428464 3 m (9.8 feet) 428468 10 m (32.8 feet)
428465 4.5 m (14.8 feet) 428469 15 m (49.2 feet)
428466 6 m (19.7 feet) 428082 18 m (59.1 feet)*
428467 7.5 m (24.6 feet) – –
* The 18 meter (59.1 feet) assembly is compatible only with the 2 meter (6.6 feet) or 2.5 meter (8.2 feet) torch lead.
