Hypertherm XPR170 Replacement Part Procedures

Parts List
5
XPR170 Field Service Bulletin 810410 155

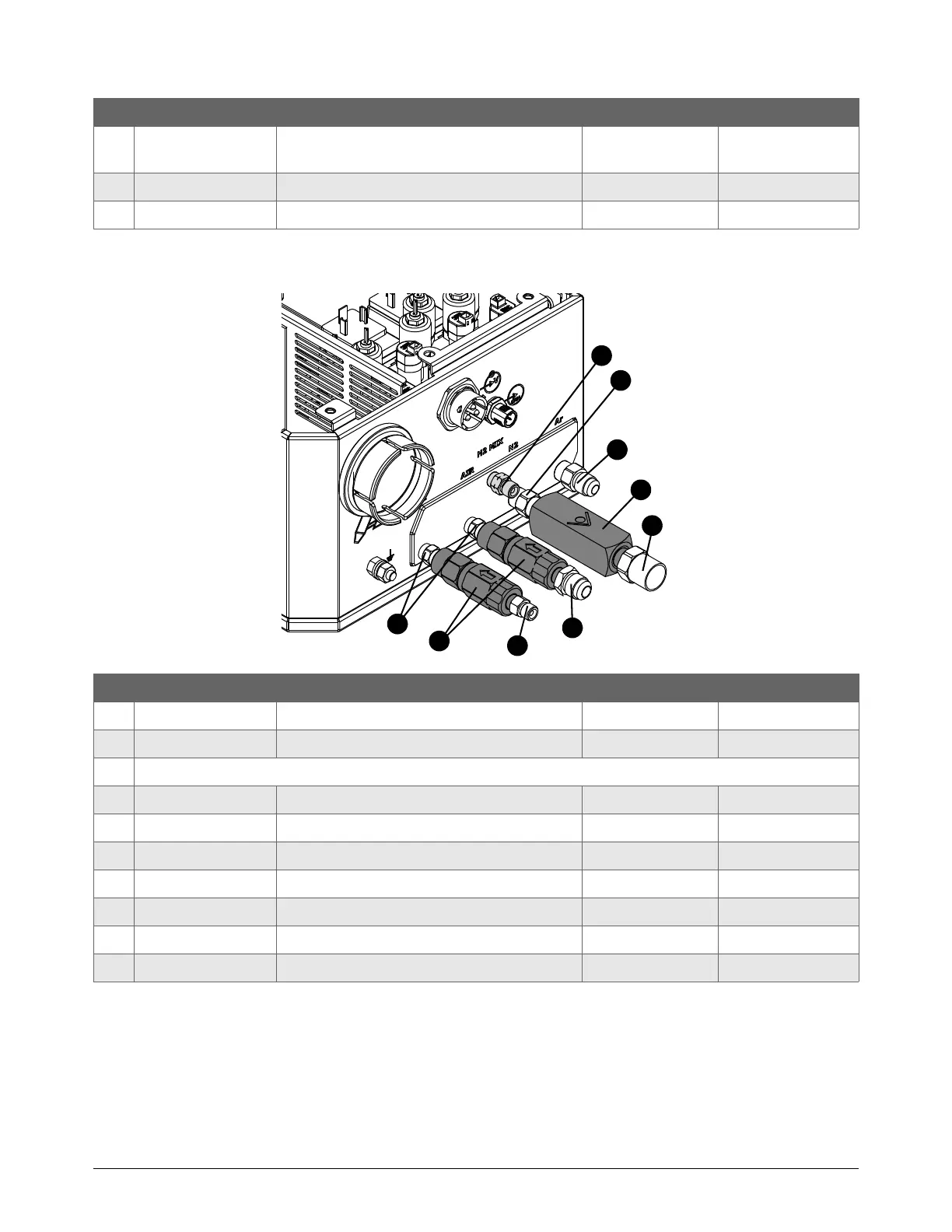

Front adapters and valves
5
104406 Adapter: 1/8 inch FPT X1/8 inch NPT
X1-5/8 inch
–1
6 006167 Proportional valve B1 – B3 3
044508 O-ring 7
Part number Description Designator Quantity
1 006077 Check valve: 1/8 inch FPT – 2
2 006157 Check valve: 1/4 inch NPT female – 1
Threaded adapters with thread sealant applied
3 015517 1/8 inch hexagonal collar – 2
4 015116 1/8 inch NPT X RH ‘A’ – 1
5 015226 1/8 inch NPT X #6 male – 1
6 015103 1/4 inch NPT X RH ‘B’ inert female – 1
7 015007 1/4 inch NPT X #5 male – 1
8 015922 1/4 inch hexagonal collar – 1
9 015210 1/8 inch NPT X LH ‘A’ male – 1
Part number Description Designator Quantity
4
1
5
2
6
7
8
9
3
