Hypertherm XPR170 Replacement Part Procedures

Parts List
5
168 810410 Field Service Bulletin XPR170

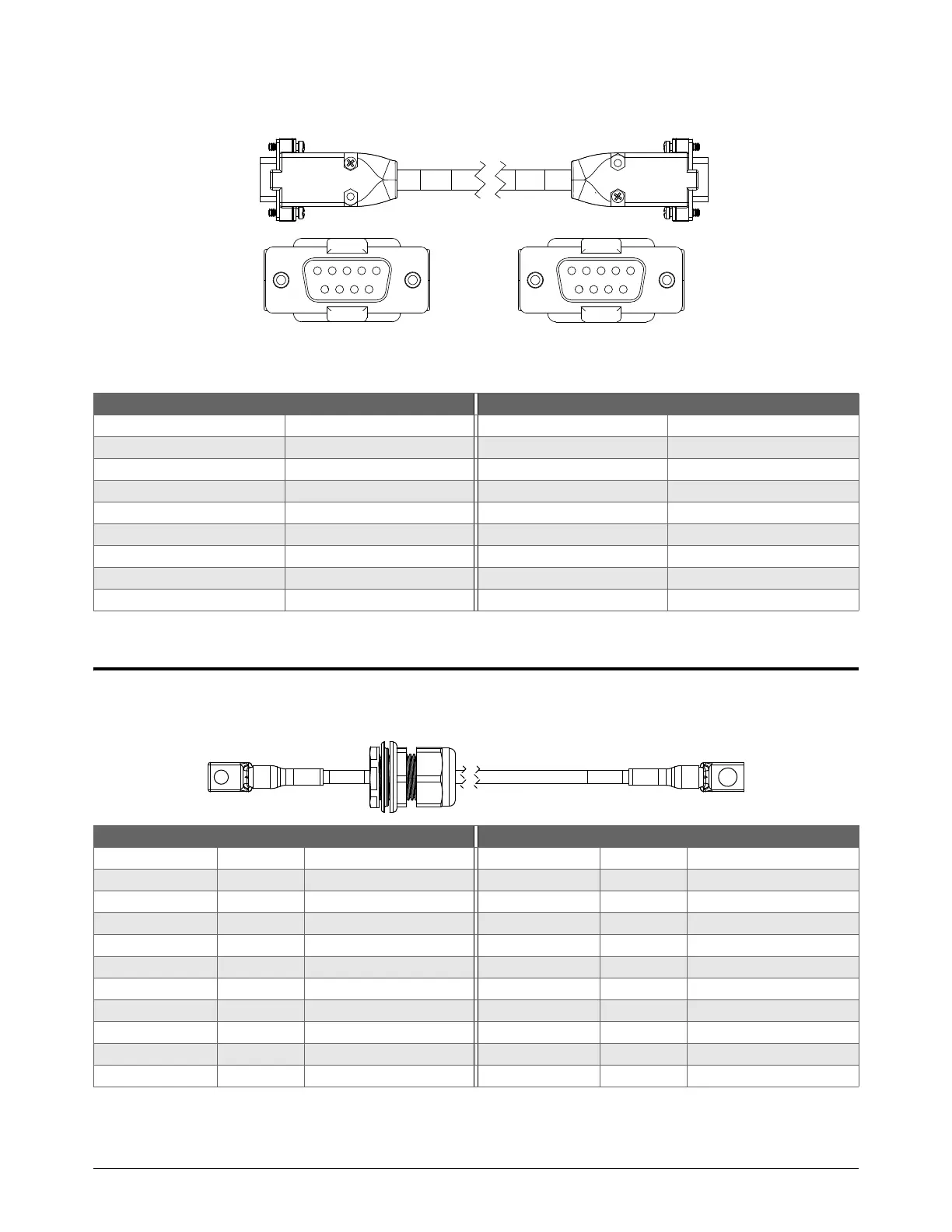

Serial CNC interface cable
Description: 9-position, D-subminiature (D-sub) connector, male-male, RS-422
Plasma power supply to cutting table connection
Work lead
* Leads labeled with CCC mark only.
32
7
5
4
7
2
35
4
Part number Length Part number Length
223673 3 m (9.8 feet) 223682 20 m (65.6 feet)
223674 4.5 m (14.8 feet) 223683 22.5 m (73.8 feet)
223675 6 m (19.7 feet) 223684 25 m (82.0 feet)
223676 7.5 m (24.6 feet) 223685 30 m (98.4 feet)
223677 10 m (32.8 feet) 223686 35 m (114.8 feet)
223678 12 m (39.4 feet) 223687 37.5 m (123 feet)
223679 13.5 m (44.3 feet) 223688 45 m (147.6 feet)
223680 15 m (49.2 feet) 223689 60 m (196.9 feet)
223681 16.5 m (54.1 feet) 223690 75 m (246.1 feet)
Part number Type Length Part number Type Length
223617 1/0 3 m (9.8 feet) 223650* 1/0 3 m (9.8 feet)
223618 1/0 4.5 m (14.8 feet) 223651* 1/0 4.5 m (14.8 feet)
223619 1/0 7.5 m (24.6 feet) 223652* 1/0 7.5 m (24.6 feet)
223620 1/0 10 m (32.8 feet) 223653* 1/0 10 m (32.8 feet)
223621 1/0 15 m (49.2 feet) 223654* 1/0 15 m (49.2 feet)
223622 1/0 20 m (65.6 feet) 223655* 1/0 20 m (65.6 feet)
223623 1/0 25 m (82 feet) 223656* 1/0 25 m (82 feet)
223635 2/0 35 m (114.8 feet) 223668* 2/0 35 m (114.8 feet)
223636 2/0 45 m (147.6 feet) 223669* 2/0 45 m (147.6 feet)
223637 2/0 60 m (196.9 feet) 223670* 2/0 60 m (196.9 feet)
223638 2/0 75 m (246.1 feet) 223671* 2/0 75 m (246.1 feet)
