Hypertherm XPR170 Replacement Part Procedures

Parts List
5
XPR170 Field Service Bulletin 810410 167

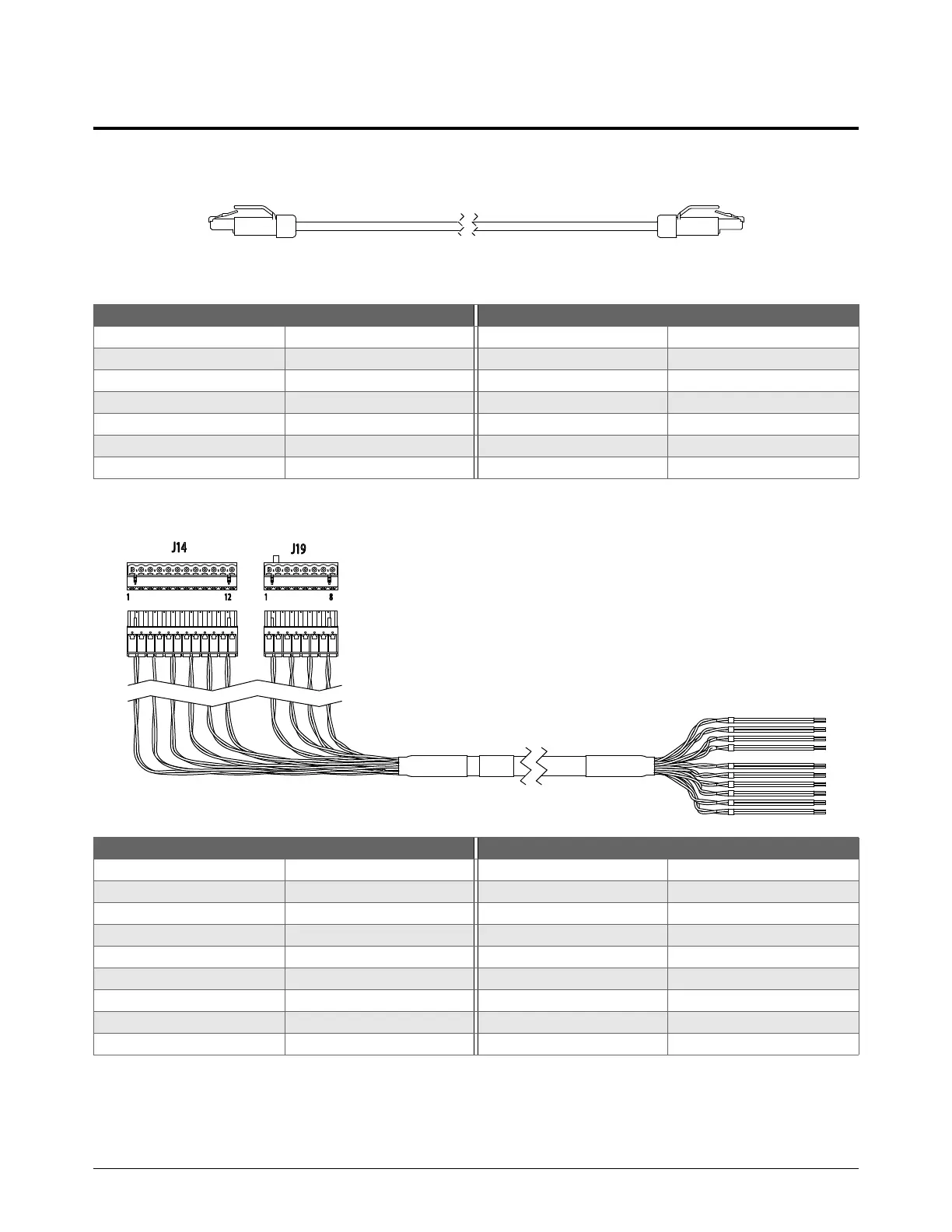

Plasma power supply to CNC connections
EtherCAT CNC interface cable
Description: RJ-45 connector, male-male, SF/UTP shield, 2 twisted pairs, 22 AWG
Discrete CNC interface cable
Part number Length Part number Length
223506 0.3 m (1 foot) 223512 10 m (32.8 feet)
223507 0.6 m (2 feet) 223513 15 m (49.2 feet)
223508 1.5 m (4.9 feet) 223514 22.5 m (73.8 feet)
223672 2.5 m (8.2 feet) 223515 30 m (98.4 feet)
223509 3 m (9.8 feet) 223516 45 m (147.6 feet)
223510 6 m (19.7 feet) 223517 60 m (196.9 feet)
223511 7.5 m (24.6 feet) 223714 75 m (246.1 feet)
1 12 1 8
J14
J19
Part number Length Part number Length
223691 3 m (9.8 feet) 223700 20 m (65.6 feet)
223692 4.5 m (14.8 feet) 223701 22.5 m (73.8 feet)
223693 6 m (19.7 feet) 223702 25 m (82 feet)
223694 7.5 m (24.6 feet) 223703 30 m (98.4 feet)
223695 10 m (32.8 feet) 223704 35 m (114.8 feet)
223696 12 m (39.4 feet) 223705 37.5 m (123 feet)
223697 13.5 m (44.3 feet) 223706 45 m (147.6 feet)
223698 15 m (49.2 feet) 223707 60 m (196.9 feet)
223699 16.5 m (54.1 feet) 223708 75 m (246.1 feet)
