Hypertherm XPR170 Replacement Part Procedures

Parts List
5
156 810410 Field Service Bulletin XPR170

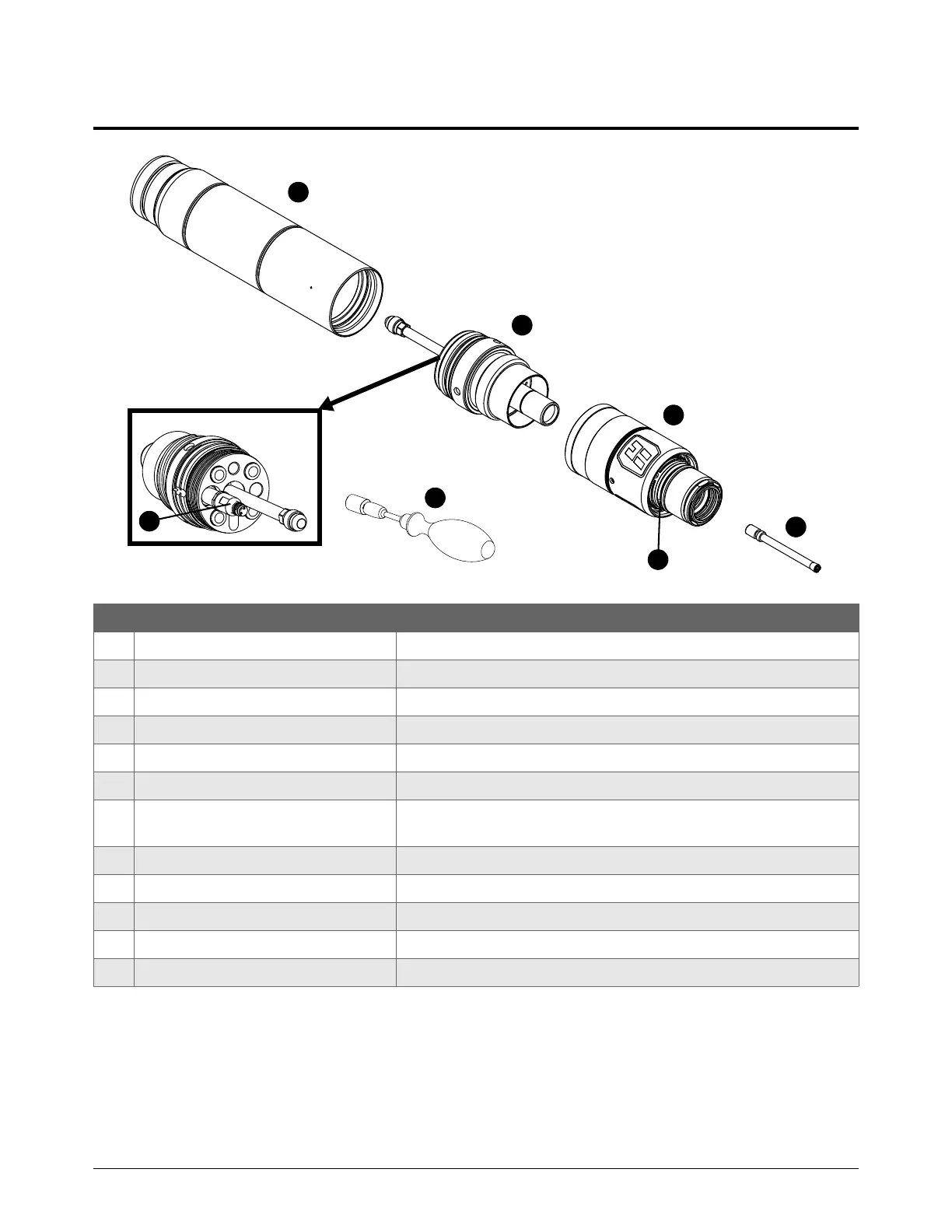

Torch assembly
Part number Description
1 420500 Torch mount sleeve assembly: Standard
420501 Torch mount sleeve assembly: Short
420502 Torch mount sleeve assembly: Extended
2 420220 Quick-disconnect/torch receptacle
3 420221 Quick-disconnect torch
4 420368 Water tube
5 044028
O-ring for quick-disconnect torch (Refer to Preventive maintenance
kits on page 171.)
6 006155 Torch solenoid valve (V1)
7 229918 Torch solenoid valve (V1) tool
006169 Torch solenoid valve connector
428846 Torch assembly, 170 A mild steel consumables
104879 2.25 inch spanner wrench
1
2
3
4
5
6
7
