Hypertherm XPR170 Replacement Part Procedures

Parts List
5
XPR170 Field Service Bulletin 810410 135

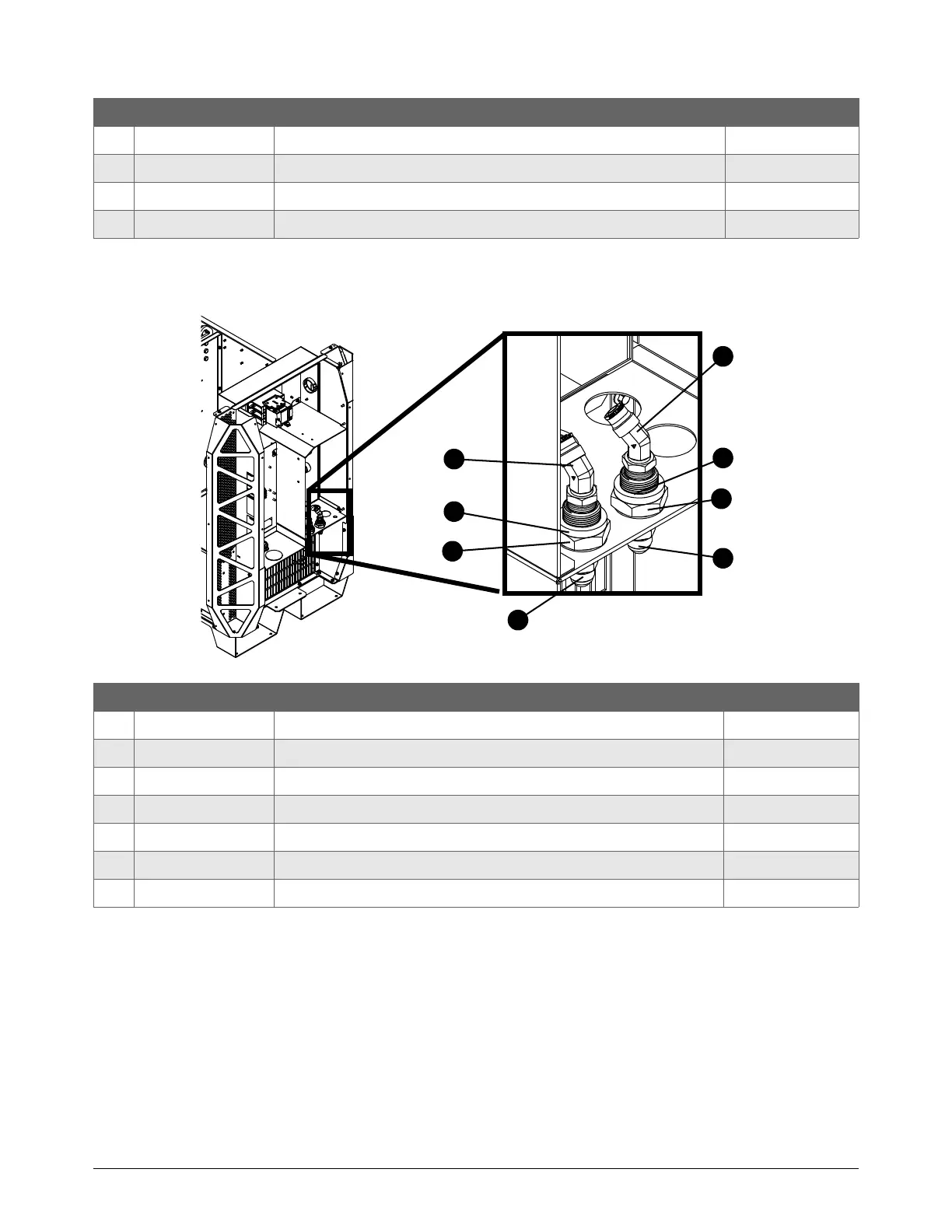

Coolant adapters in the rear compartment
12 229843 Plug and O-ring 1
13 002561 Coolant reservoir 1
14 006113 Coolant check valve 1
428766 Kit: Tubing (1 inch hose not included) 1
Part number Description Quantity
1 015889 Elbow adapter: 1/2 inch NPT X 1/2 inch tube, 45° swivel 2
2 015903 Red ring: 1.13 inches inner diameter 1
3 015888 Adapter: 1/2 inch FNPT X 1-1/2 inch length bulkhead 2
015899 Red ring: 0.87 inch inner diameter (not shown) 1
4 015029 Adapter: 1/2 inch NPT X #8 male 2
015898 Green ring: 0.87 inch inner diameter (not shown) 1
5 015902 Green ring: 1.13 inch inner diameter 1
Part number Description Quantity
1
2
3
4
5
4
3
1
