Hypertherm XPR170 Replacement Part Procedures

Plasma Power Supply
1
52 810410 Field Service Bulletin XPR170

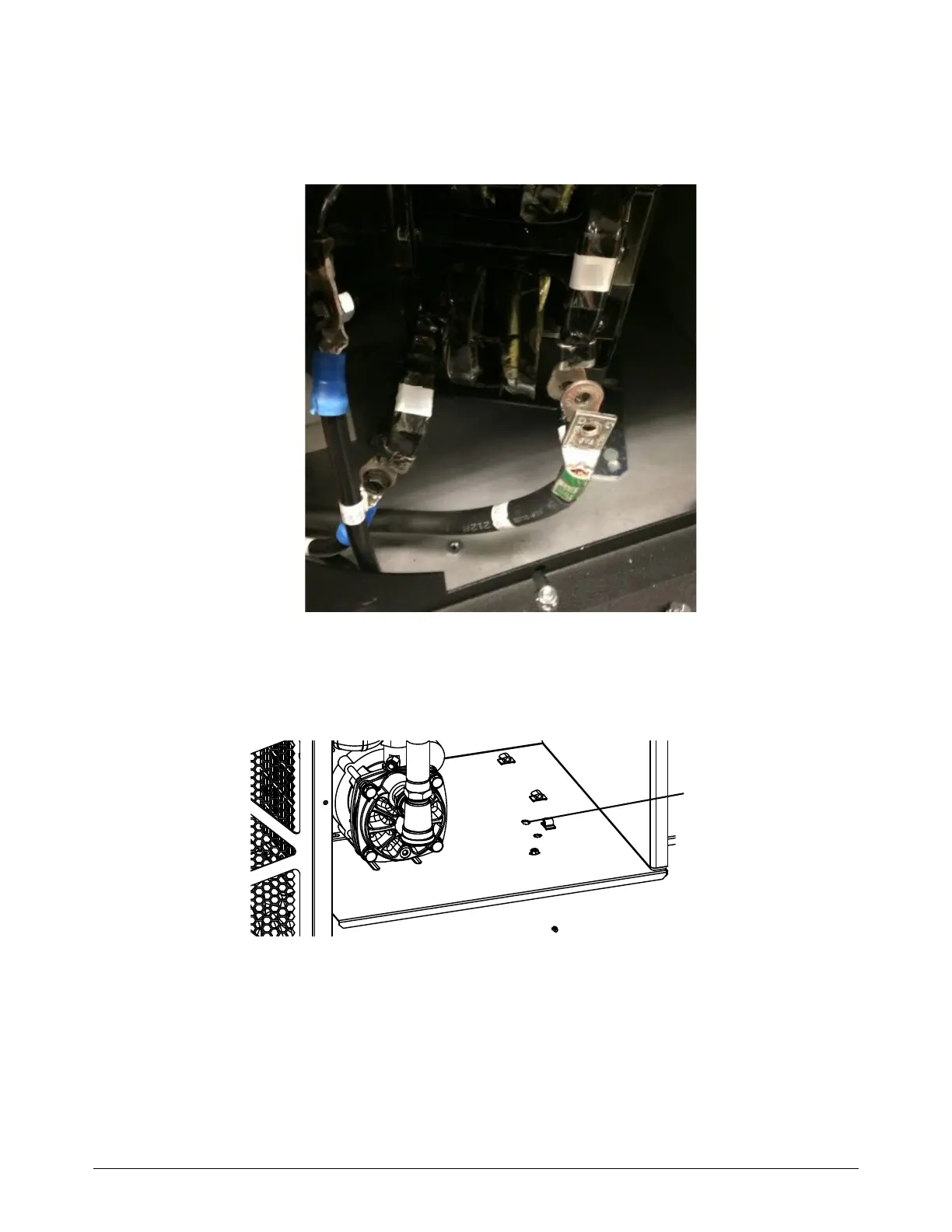

10. Use a 10 mm, hexagonal-socket wrench to remove the 3 screws from the inductor terminal.

Take a picture of the order of the wiring terminals to help when you install
the new inductor.
11 . Remove the blue/white twisted pair wires from the cable holders.
12. Push the 2 side bars and then push the connector through the hole in the sheet metal to
disconnect the connector for the thermal switches on the inductor.
 J1 for Inductor 1 (L1)
J1
