2.3 How to Install
2-10
2. Installation

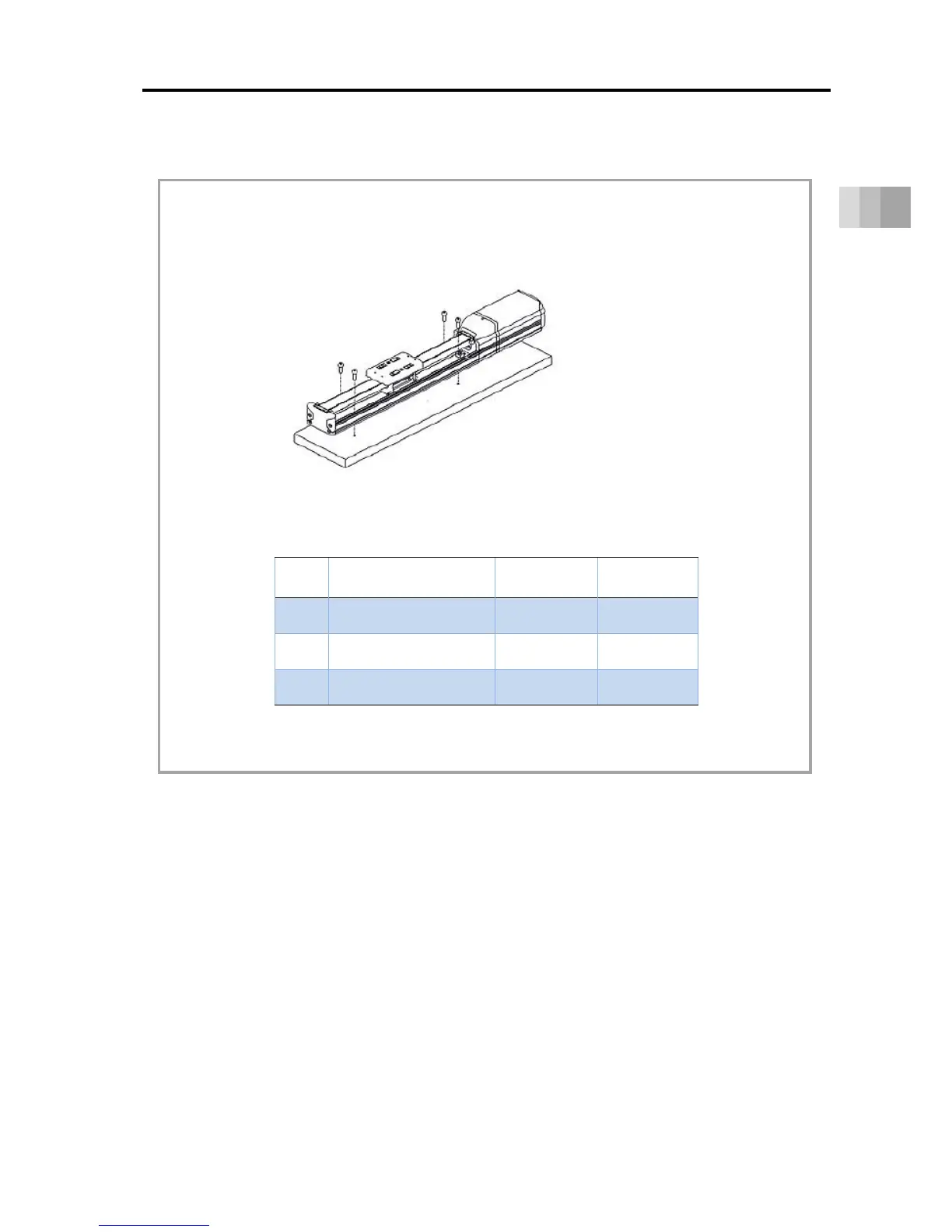

[Using the Through Holes on the Top of the Base]
As SA4, SA6 and SA7 are equipped with through holes on the base for purpose of
installation from the top, it is available to screw in from the top side.
Detach the side covers on the sides when installing.
For mounting bolts, use hexagonal socket head bolts indicated in the following
table depending on the platform material.
Model
Name
Through Hole Mounting Bolt
Tightening
Torque
SA4C
SA4R
φ3.4 drilled hole, 6.5 counter
boring depth 3.5
M3
0.83N•m
(0.085kgf•m)
SA6C
SA6R
φ4.5 drilled hole ,8 counter
boring depth 4.5
M4
1.76N•m
(0.18kgf•m)
SA7C
SA7R
φ6 drilled hole, 9.5 counter
boring depth 5.5
M5
3.42N•m
(0.35kgf•m)
