2.3 How to Install
2-14
2. Installation

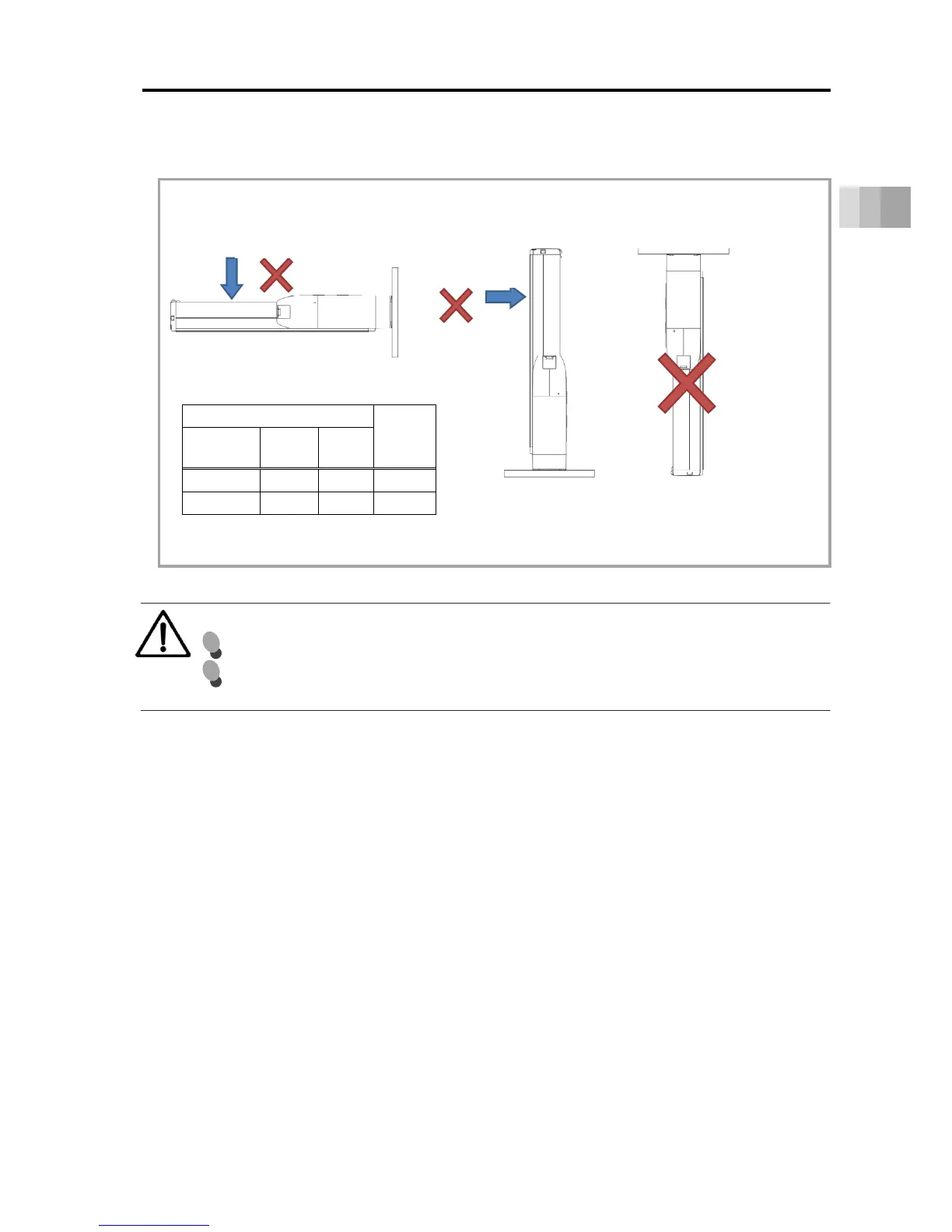

[Precautions when using reversing brackets]
● Availability of installation for each installation posture is as shown below:
Caution
Do not attempt to affix the unit only with the tapped holes on the side-mounted bracket.
Do not apply external force to the actuator body after installation.
External force may cause malfunctions or damage to parts.
Installation Posture
Support
Horizontal Vertical
Ceiling
Mount
× × × No
○ ○ × Yes
天吊り
外力
外力
垂直
水平
取付不可
External Force
External Force
Horizontal
Vertical Ceiling Mount
Unmountable
