2.3 How to Install
2-13
2. Installation

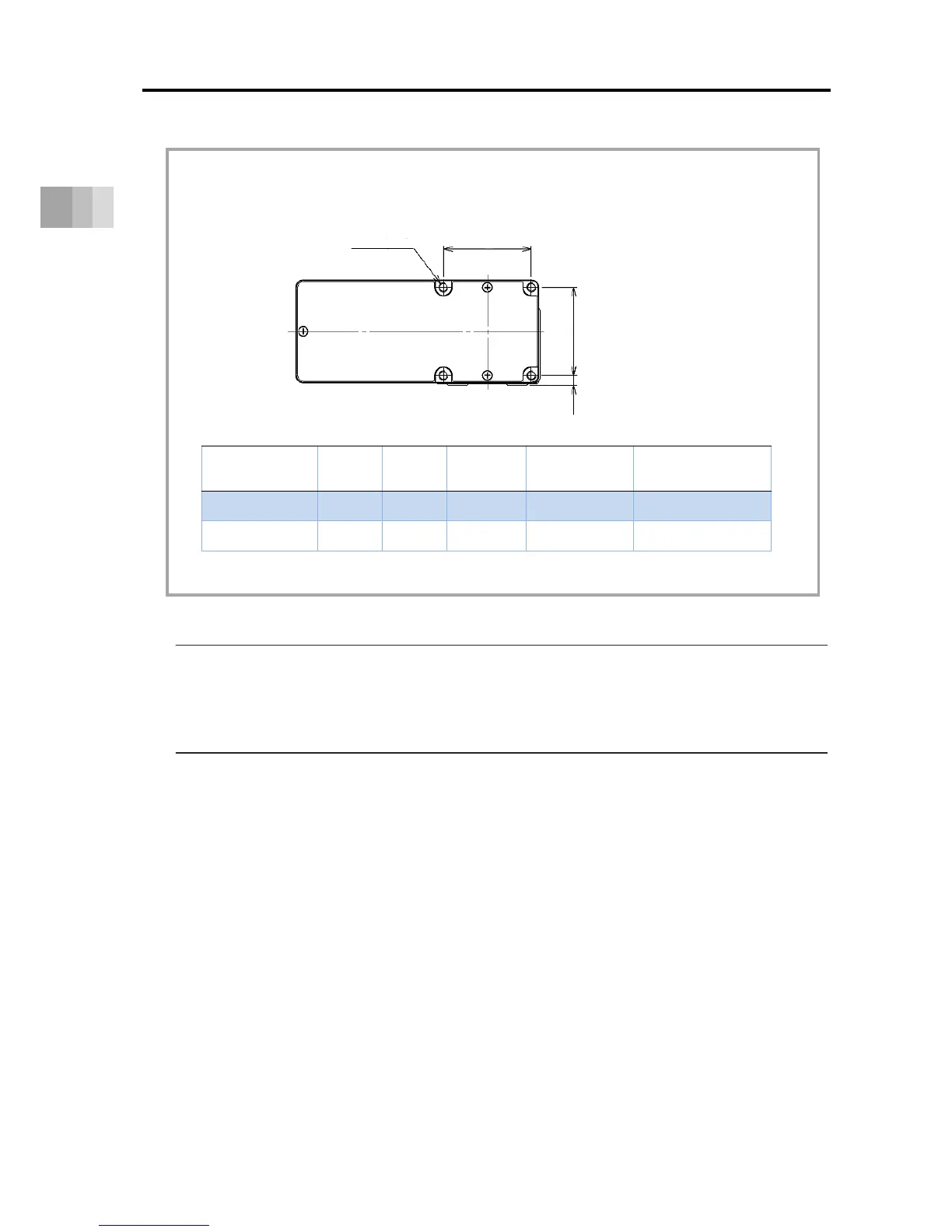

● For SA7R and SA8R
Notice
● The use of high-strength bolts of ISO-10.9 or higher is recommended.
● Make sure the internal thread and bolt effective engagement length is
approximately 1.8 times the nominal diameter or more.
Model Name A B
Attachment
Hole
Diameter
Attachment Hole
Depth
Tightening Torque
SA7R 58 6.5 M6 12mm
5.4N•m
(0.55kgf•m)
SA8R 58 8 M6 12mm
5.4N•m
(0.55kgf•m)
４M
A
A
B
