IAI ROBO Cylinder RCS4- SA4C - Page 69

2.3 How to Install
2-12
2. Installation

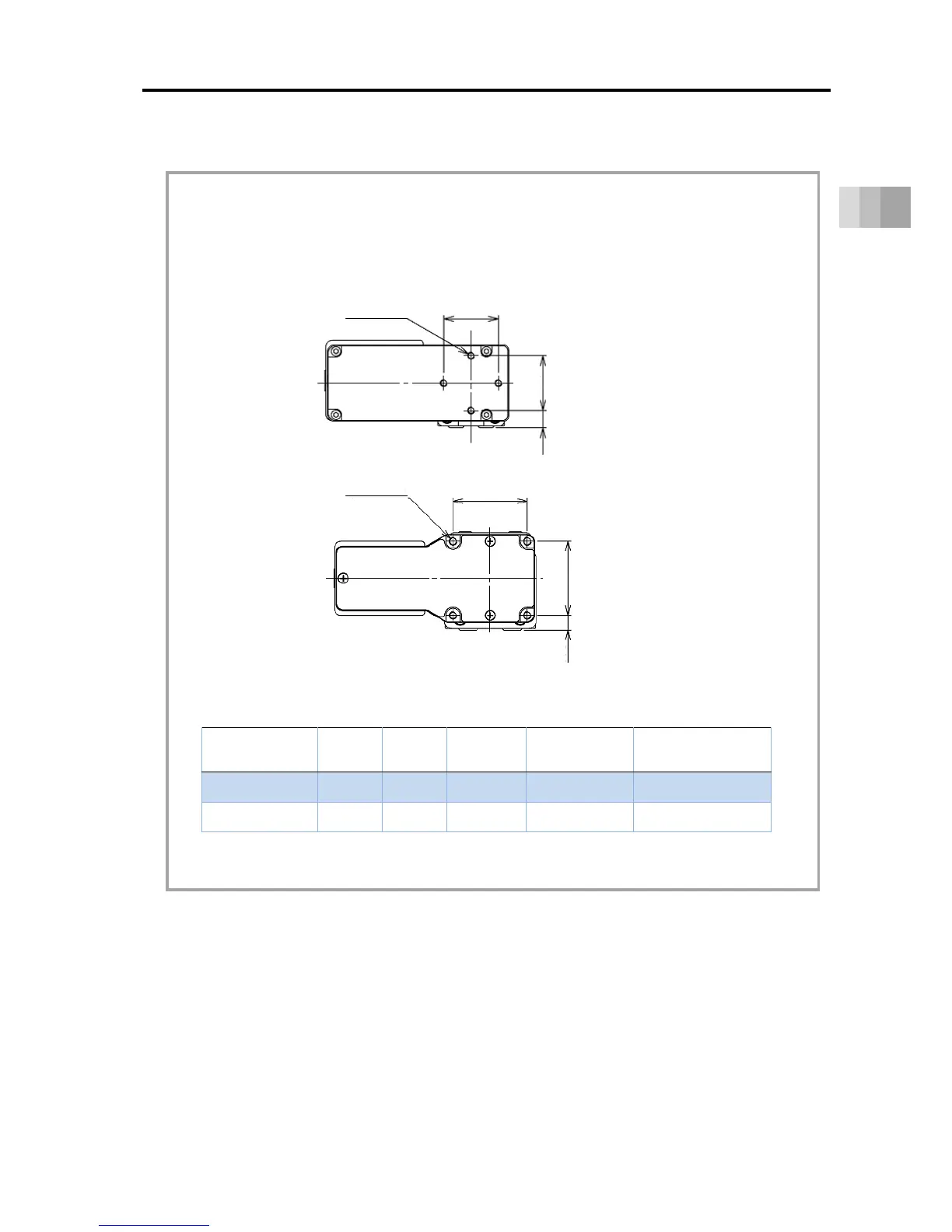

[When Using Attachment Holes on Bracket in Motor Reversing Type]
As there are tapped holes on the reversing bracket, it is available to screw in from the back.
It should be an option (Model: RP) for SA4R.
● For SA4R (Option)
● For SA6R
Model Name A B
Attachment
Hole
Diameter
Attachment Hole
Depth
Tightening Torque
SA4R 32 10 M４ 8mm
1.76N•m
(0.18kgf•m)
SA6R 47 9.5 M５ 10mm
3.42N•m
(0.35kgf•m)
４M A
A
B
４M
A
A B
