Note: The EXP5060 and the EXP5000/EXP810 storage expansion enclosures are
connected to different ports of the same drive channel in each controller.
1A 1B
1A
1B
2A 2B
2A
2B
1A
EXP5060

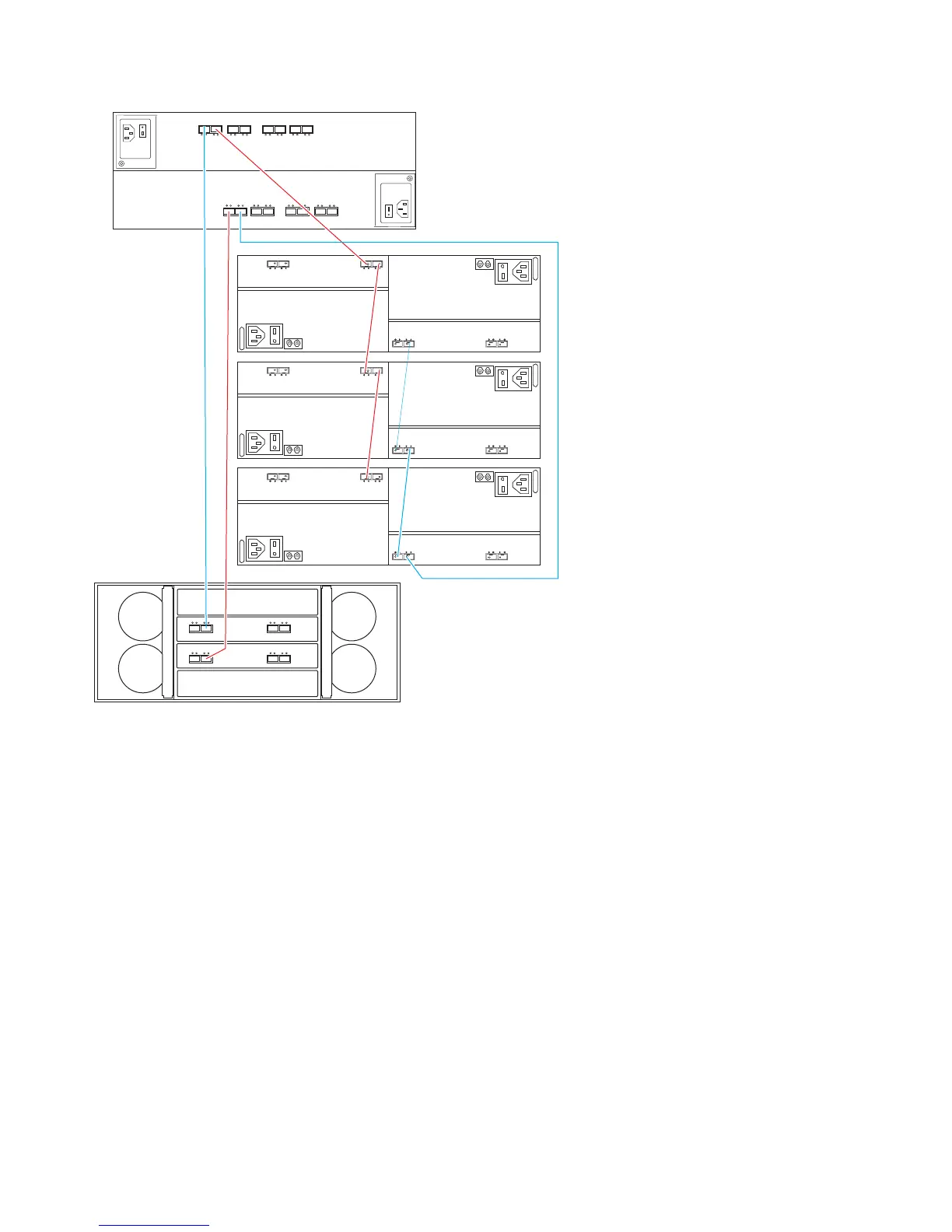

Figure 61. Cabling for DS5100 and DS5300 storage subsystem and one EXP5060 intermixed with a maximum of three
EXP810/EXP5000 storage expansion enclosures without trunking (example 1)
92 IBM System Storage DS5100 and DS5300 Storage Subsystem: Installation, User’s, and Maintenance Guide
