Table 53. Description of Figure 112
Number Description
1 Cover thumbscrews
2 Two host interface cards with alignment slots
3 Host interface card thumbscrews
4 Controller card sockets for connecting the host interface cards
5 Host interface card alignment pins
6 Host interface card port covers
15. Locate the host interface card that you want to replace. See Figure 113 on
page 181.
ds50_7620401
2
3
4
5
1
6

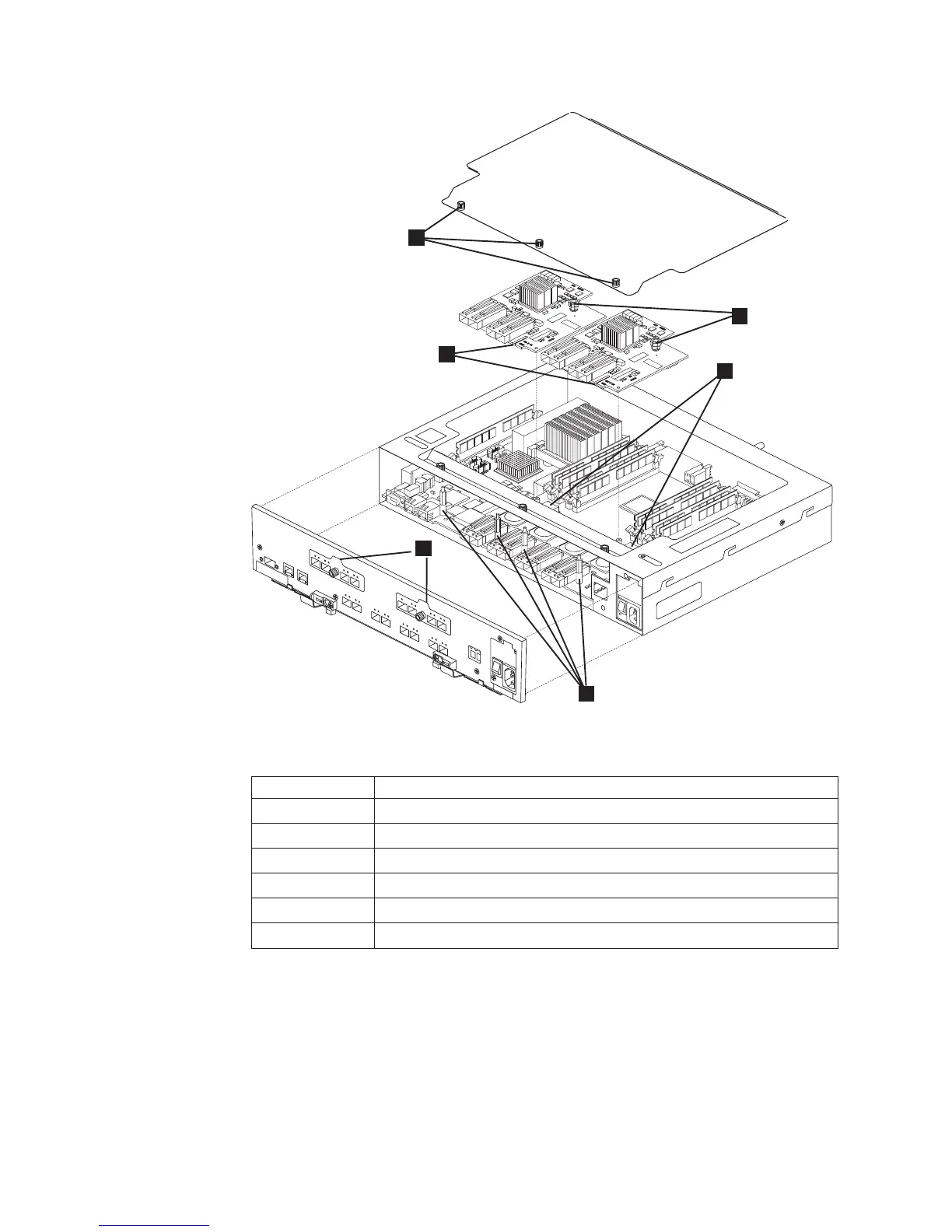

Figure 112. Removing controller cover and replacing host interface card
180 IBM System Storage DS5100 and DS5300 Storage Subsystem: Installation, User’s, and Maintenance Guide
