1. Remove the protective cap from the fiber-optic cable. See Figure 23.
2. Connect the fiber-optic cable to the installed SFP, as shown in Figure 24.
3. Check the LEDs on the RAID controller. When the RAID controller is operating
properly, the amber Needs Attention LED is off. For information about the status
of the RAID controller LEDs, see “RAID controller LEDs” on page 145.
4. To remove the fiber-optic cables, gently pull the fiber-optic cable from the SFP;
then replace the protective caps.
Using LC-LC fibre-channel cables
The LC-LC fibre-channel cable is a fiber-optic cable that you use to connect
DS5100 and DS5300 fibre channel ports to one of the following devices:
v An SFP module installed in a fibre channel switch port
v An SFP module of the host bus adapter port
Protective cap
Fiber-optic
cable
F10ug011

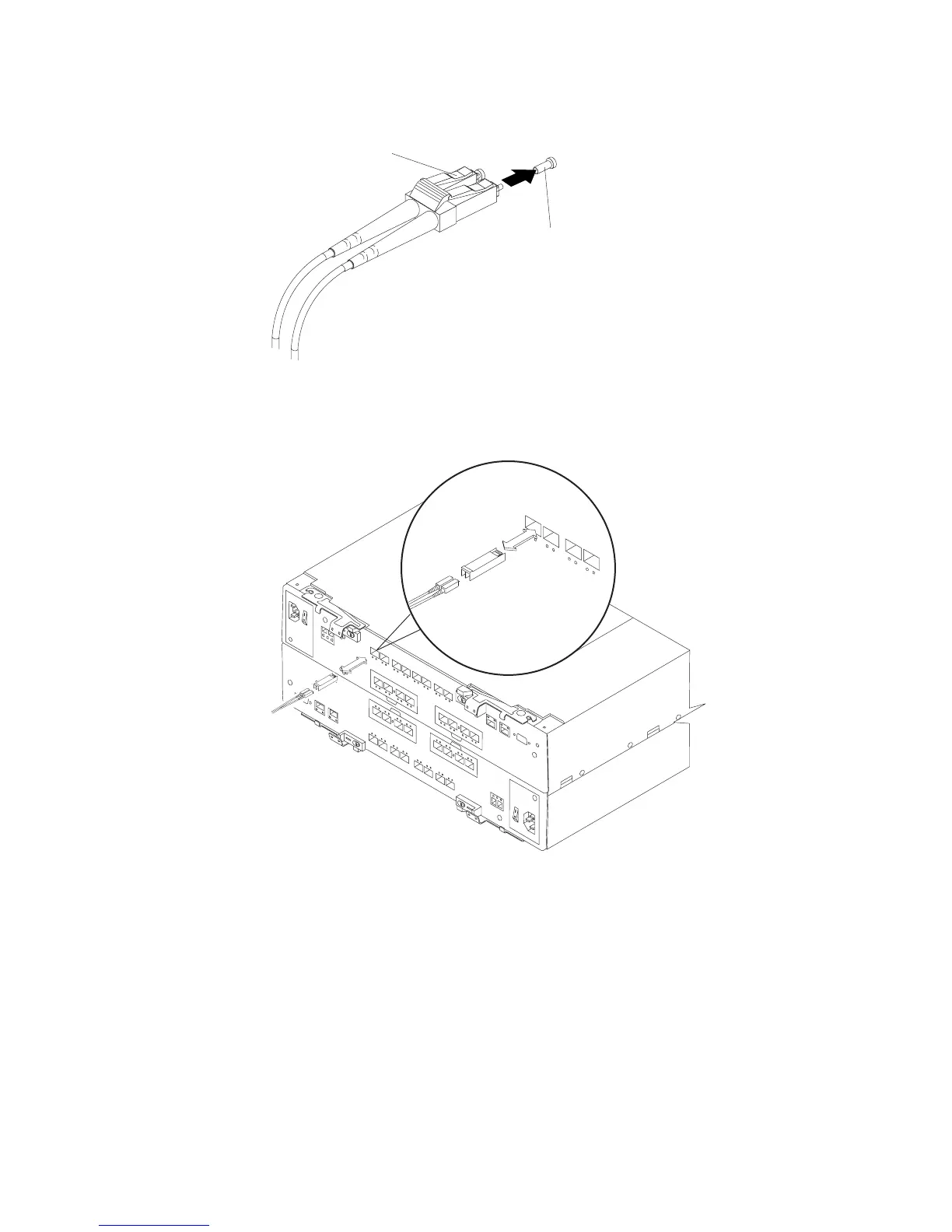

Figure 23. Removing caps from fiber-optic cables
ds50031
Figure 24. Connecting fiber-optic cable to SFP
Chapter 3. Cabling the storage subsystem 53
