Note: The EXP5060 and the EXP5000/EXP810 storage expansion enclosures are
connected to the same port of the same drive channel in each controller.
Group together the EXP5000/EXP810 storage expansion enclosures.
1A 1B
1A
1B
2A 2B
2A
2B
1A

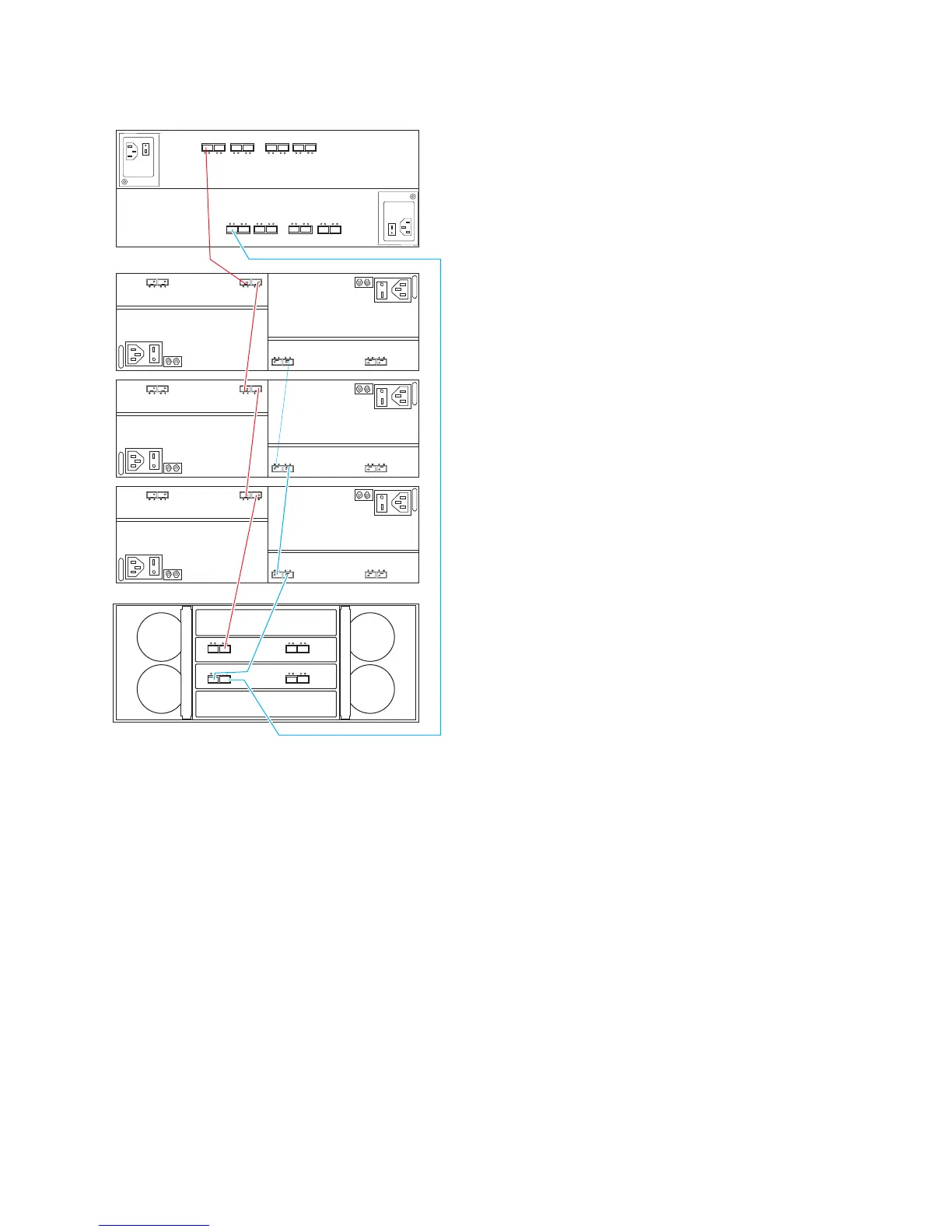

Figure 62. Cabling for DS5100 and DS5300 storage subsystem and one EXP5060 intermixed with a maximum of three
EXP810/EXP5000 storage expansion enclosures without trunking (example 2)
Chapter 3. Cabling the storage subsystem 93
