Table 57. Parts list (System Storage DS5100 and DS5300 Storage Subsystem)
Index DS5100 and DS5300 Storage Subsystem FRU P/N
1 DS5100 and DS5300 bezel assembly 46C4483
2 DS5100 and DS5300 power supply and fan
unit
46C8871
3 DS5100 and DS5300 interconnect-battery unit
(with plate and without batteries)
46C8875
4 DS5100 RAID controller, Model 51A 46C8879
DS5300 RAID controller, Model 53A 44E5610
5 DS5100 and DS5300 mounting rail assembly 23R0538
6 DS5100 and DS5300 battery cover/plate with
4 screws
46C8886
DS5100 and DS5300 battery 46C8872
DS5100 and DS5300 4 Gbps FC host
interface card
46C4482
DS5100 and DS5300 8 Gbps FC host
interface card
49Y4124
DS5100 and DS5300 1 Gbps iSCSI host
interface card
59Y5059
DS5100 and DS5300 1 GB cache memory 46C8888
2 GB cache memory 59Y5097
4 GB cache memory 59Y5098
DS5100 and DS5300 4 GB flash memory 46C8890
8 GB flash memory 59Y5099
LC wrap plug assembly 39M5914
LC-SC fibre channel cable adapter 23R0539
1
2
3
5
ds50006
5
4
6

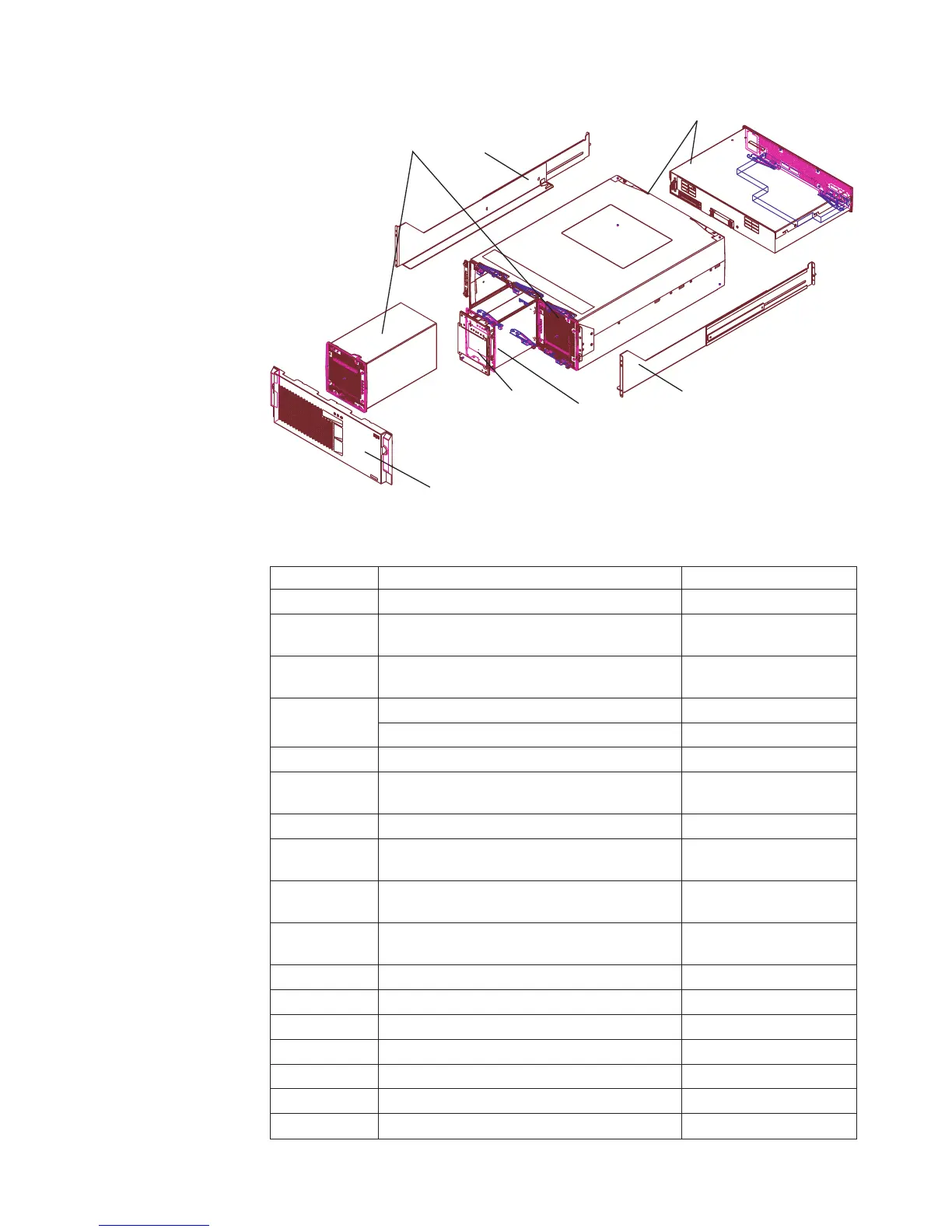

Figure 126. DS5100 and DS5300 parts list
Chapter 6. Hardware maintenance 209
