Figure 39 on page 64 shows an example of connecting two EXP5060s behind
controller A drive ports P8 and P6 and controller B drive ports P1 and P3.
Note: This is an example to illustrate the capability to connect more than one
EXP5060 behind a storage subsystem controller drive port. This is not the
recommended cabling scheme when you have only two EXP5060s in a
storage subsystem configuration.
36
63
EXP810/EXP5000
2
1
36
63
EXP810/EXP5000
9
10
36
63
EXP810/EXP5000
36
63
EXP810/EXP5000
ds50086

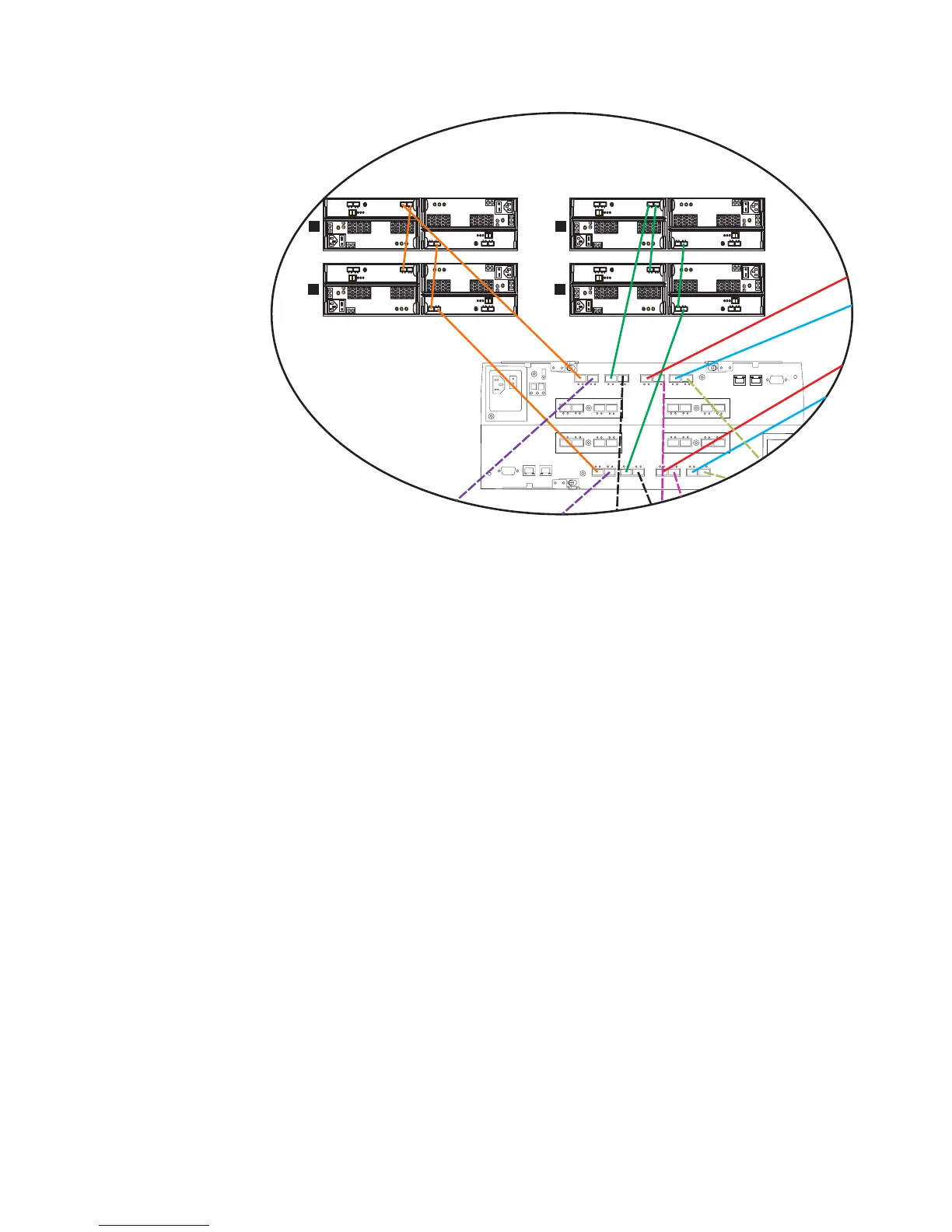

Figure 38. One DS5100 and DS5300 cabled to two EXP5000s behind the same
DS5100/DS5300 drive channel port using a non-trunking cabling scheme
Chapter 3. Cabling the storage subsystem 63
