Specifications
This section provides site specifications for the DS5100 and DS5300. Before
installing a storage subsystem, you must either verify that your planned installation
site meets these requirements, or prepare the site so that it does meet these
requirements. Preparations might involve meeting area requirements, environmental
requirements, and electrical requirements for DS5100 and DS5300 installation,
service, and operation.
Area requirements
The floor space at the installation site must provide enough strength to support the
weight of the storage subsystem and associated equipment; sufficient space to
install, operate, and service the storage subsystem; and sufficient ventilation to
provide a free flow of air to the unit.
Dimensions
Figure 10 shows the dimensions of the DS5100 and DS5300, which conform to the
19-inch rack standard.
Weight
The total weight of the storage subsystem depends on the number of components
installed. Table 8 lists the maximum, empty, and shipping weights for the storage
subsystem in different configurations. Table 9 on page 26 lists the weight of each
component.
Table 8. DS5100 and DS5300 Storage Subsystem weights
Unit
Weight
Maximum
1
Empty
2
Shipping
3
DS5100 and DS5300
Storage Subsystem
36.8 kg (81.1 lb) 13.2 kg (29.0 lb) 49.4 kg (109 lb)
6.87 in.
24.25 in.
17.75 in.
ds50007

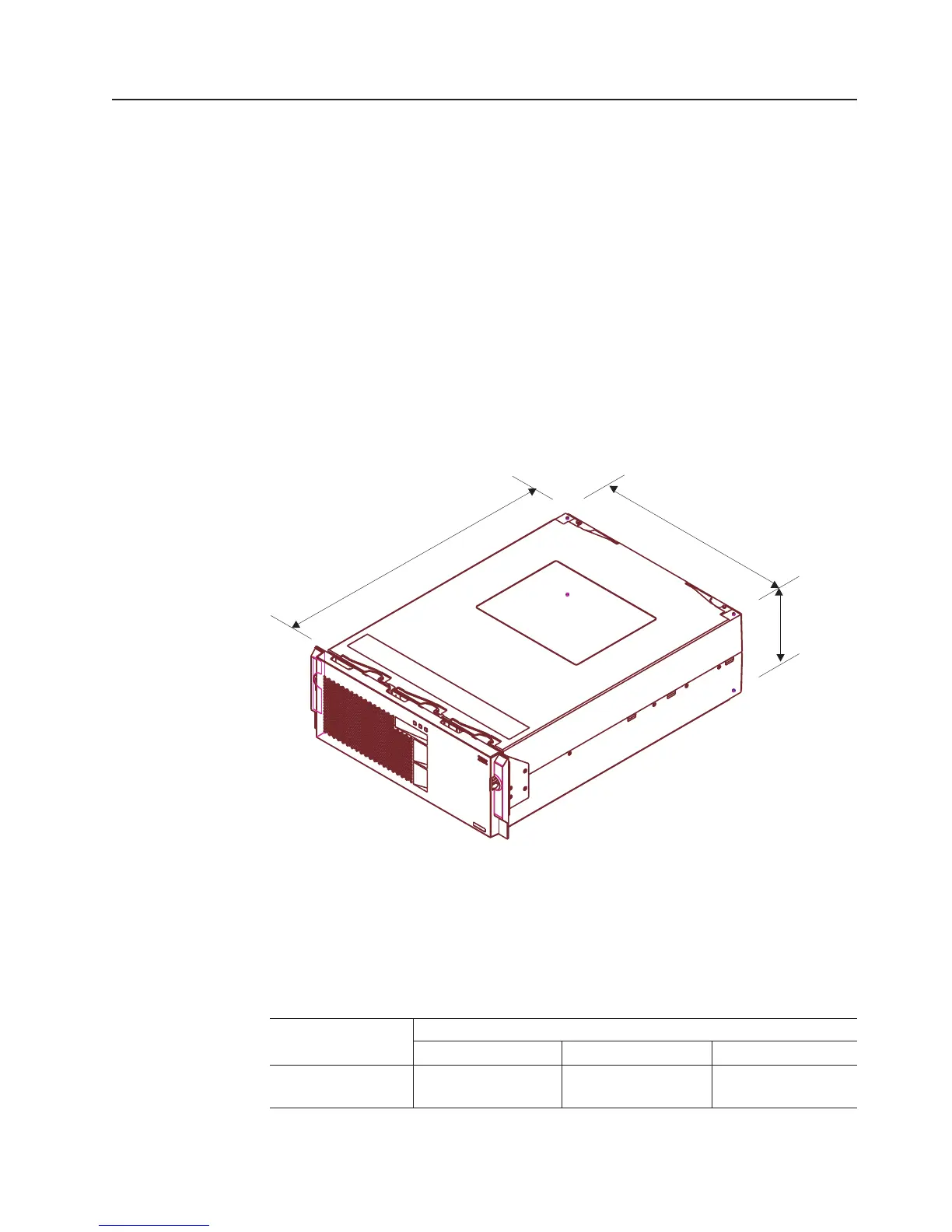

Figure 10. DS5100 and DS5300 Storage Subsystem dimensions
