DS5100 and DS5300 storage subsystem and one EXP5060
intermixed with a maximum of seven EXP810/EXP5000 storage
expansion enclosures
1A 1B
1A
1B
2A 2B
2A
2B
1A

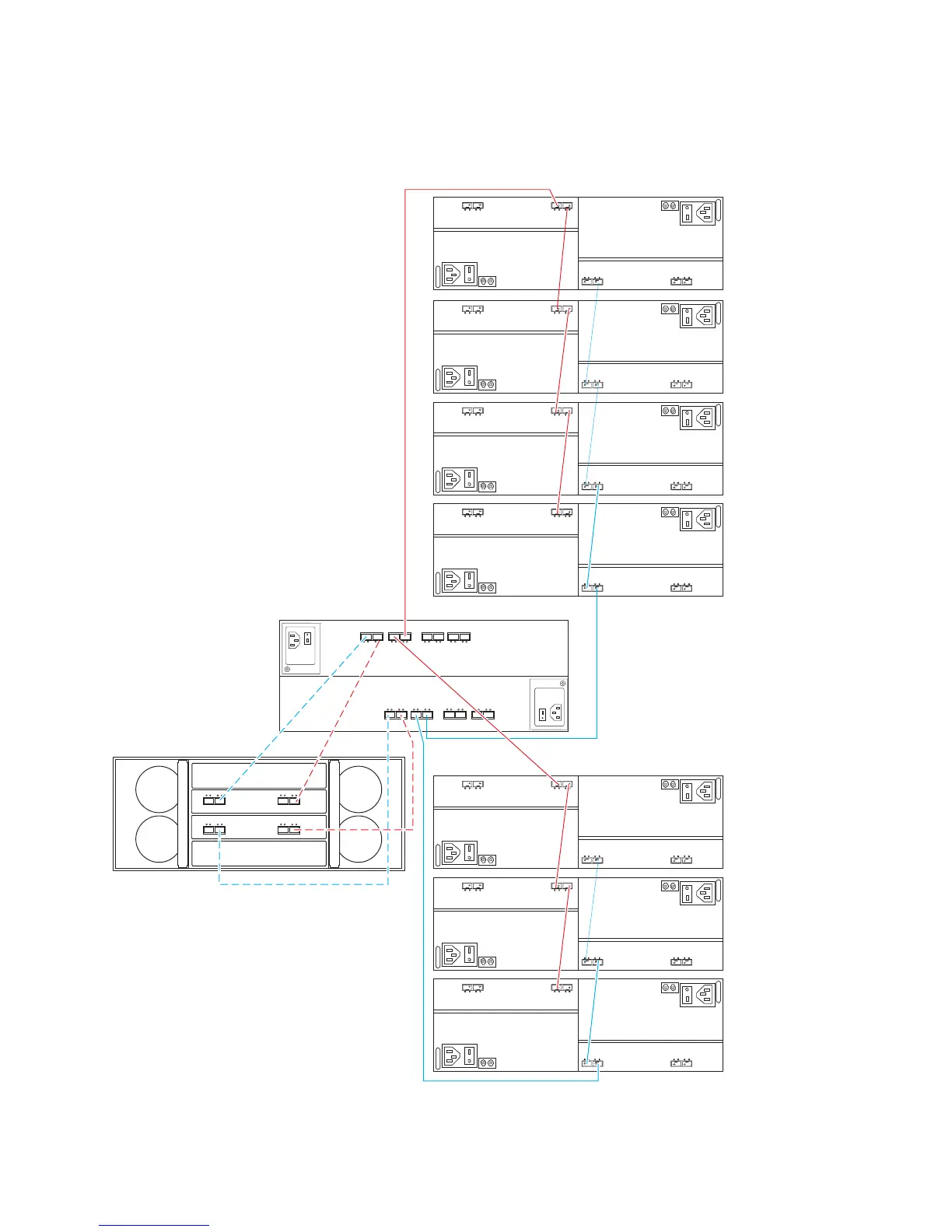

Figure 64. Cabling for DS5100 and DS5300 storage subsystem and one EXP5060 intermixed with a maximum of
seven EXP810/EXP5000 storage expansion enclosures and drive-side trunking
Chapter 3. Cabling the storage subsystem 95
