2. The rack or cabinet must be capable of supporting an average load of 15.9 kg
(35 lb.) of product weight per EIA unit.
Top Front of Rack
EIA Hole Spacing
6.75 mm min.
15.9 mm
15.9 mm
15.9 mm
15.9 mm
12.7 mm
12.7 mm
Hole Diameter =
7.1 +/- 0.1 mm
450 +/- 0.75 mm
Rack Front Opening
465 +/- 0.8 mm
Rack Mounting Holes Center-to-Center
6.75 mm min.
15.9 mm
15.9 mm
12.7 mm
15.9 mm
15.9 mm
12.7 mm
nonibm_topfront

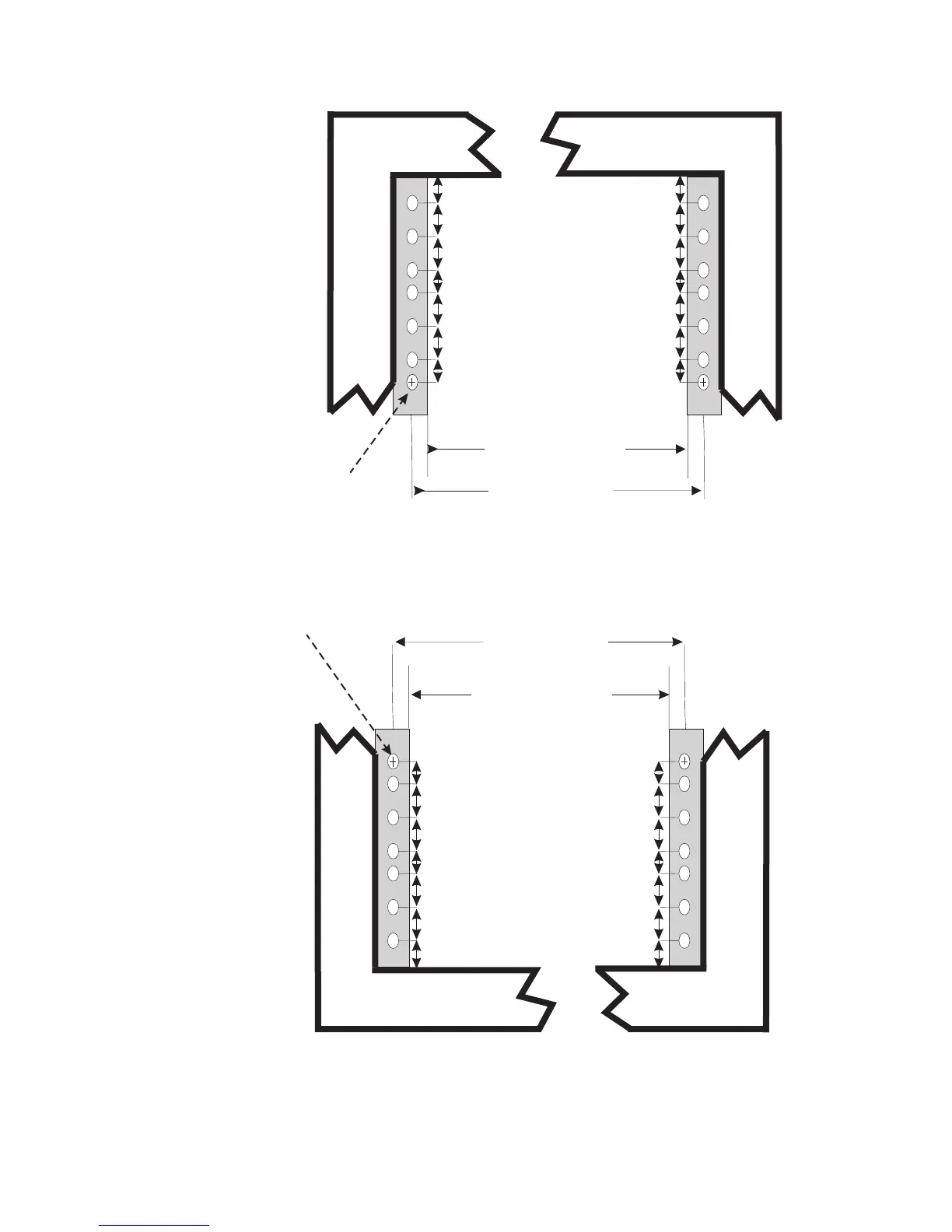

Figure 131. Rack specifications dimensions, top front view
Bottom Front
of Rack
EIA Hole Spacing
6.75 mm min.
15.9 mm
15.9 mm
15.9 mm
15.9 mm
12.7 mm
12.7 mm
Hole Diameter =
7.1 +/- 0.1 mm
450 +/- 0.75 mm
Rack Front Opening
465 +/- 0.8 mm
Rack Mounting Holes Center-to-Center
6.75 mm min.
15.9 mm
15.9 mm
12.7 mm
15.9 mm
15.9 mm
12.7 mm
nonibm_botview
Figure 132. Rack specifications dimensions, bottom front view
Appendix D. Specifications for non-IBM rack installation 233
