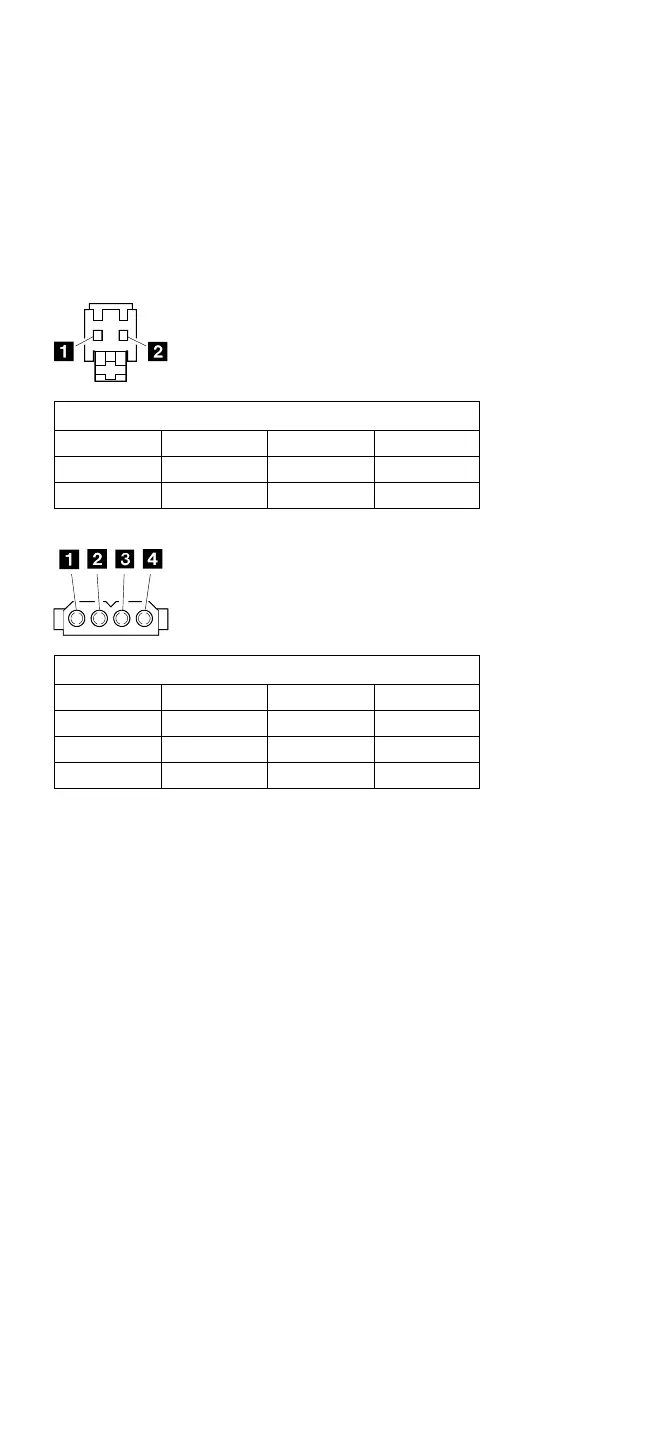

Power Supply Connector P3
SCSI Power Supply Connector
Table 4. Power Supply Connector P3
Pin Signal V dc Min. V dc Max.
1 CVCC +19 +21
2 Ground – –
Table 5. SCSI Power Supply Connector
Pin Signal V dc Min. V dc Max.
1 +12 volts +11.46 +12.6
2, 3 Ground – –
4 +5 volts +4.8 +5.25
Dock I (3545) 349
