IBM N51 Series User Manual

Locations

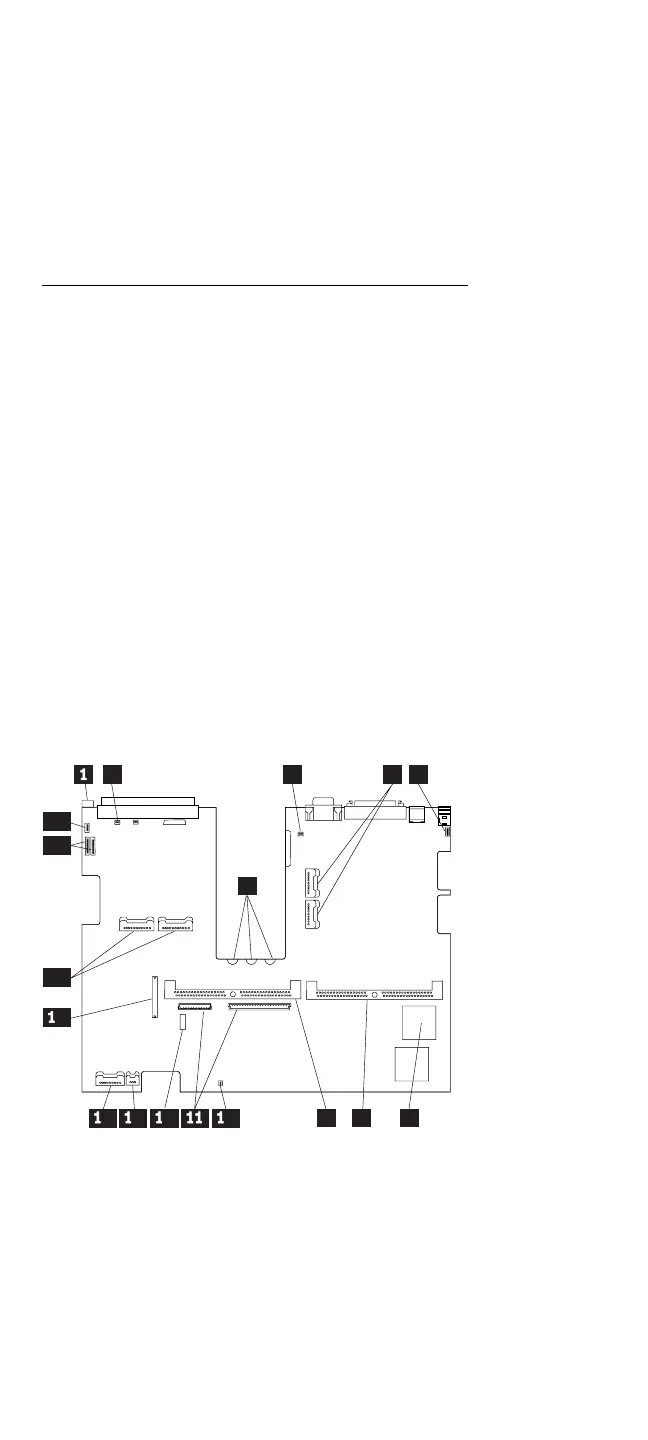

System Board
.1/ Suspend/Resume Switch
.2/ Backup Battery Connector
.3/ Battery Contacts
.4/ Standby-Battery Connector
.5/ Diskette-Drive Connectors
.6/ Display Power Connector
.7/ Math Coprocessor Connector
.8/ Memory-Module Connector 1
.9/ Memory-Module Connector 2
.1ð/ Speaker Connector
.11/ Keyboard Connectors
.12/ Password-Override Connector
.13/ Switch-Assembly Connector
.14/ System-Status Display Connector
.15/ Option Connector
.16/ Hard-Disk Drive Connectors
.17/ Display Signal Connectors
.18/ Suspend/Resume Switch Connector
(Top View)
2
3
4 5 6
78902
5
16
17
18
4 3
42 IBM Mobile Systems HMM - Volume 1

IBM N51 Series Specifications

General

Brand	IBM
Model	N51 Series
Category	Laptop
Language	English
