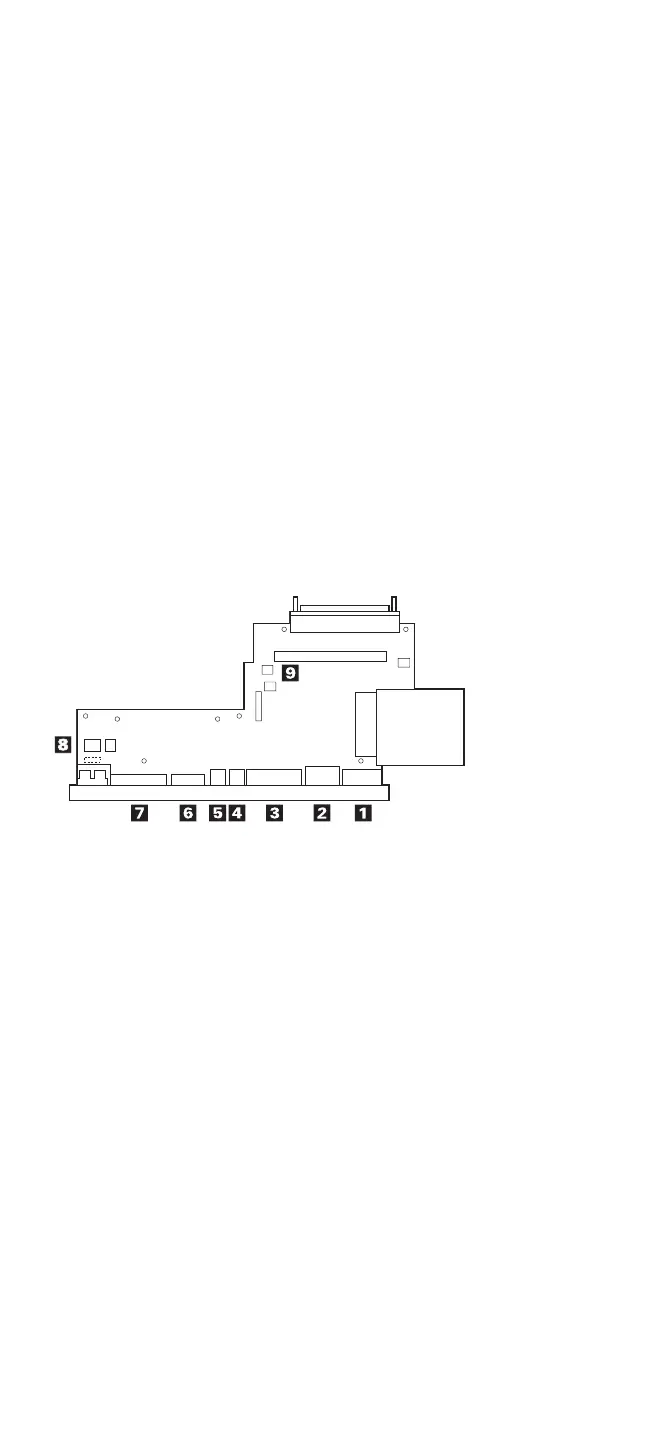

Main Card
.1/ External Diskette Drive Connector (26-pin)
.2/ External Display Connector (15-pin)
.3/ External SCSI Connector
.4/ Keyboard/Numeric Keyboard Connector
.5/ Mouse/Pointing Device Connector (6-pin)
.6/ Serial Connector (9-pin)
.7/ Parallel Connector (25-pin)
.8/ Power Supply Connector (CN25)
.9/ Power Supply Connector (CN26)
Dock II (3546) 453
