About this task
This task assumes that the following conditions are met:
v You removed the PSU, following the procedure described in “Removing a power
supply: 2076-92F” on page 100.
v You removed the fascia that covers the PSU from the front of the expansion
enclosure, as described in “Removing the fascia: 2076-92F” on page 82.
v You are aware of the procedures for handling static-sensitive devices.
Procedure
1. Read all safety information.
2. Rotate the handles on the PSU outward, as shown in Figure 72.
3. Slide the PSU forward into the chassis until it clicks in to place, as shown in
Figure 73 on page 81.

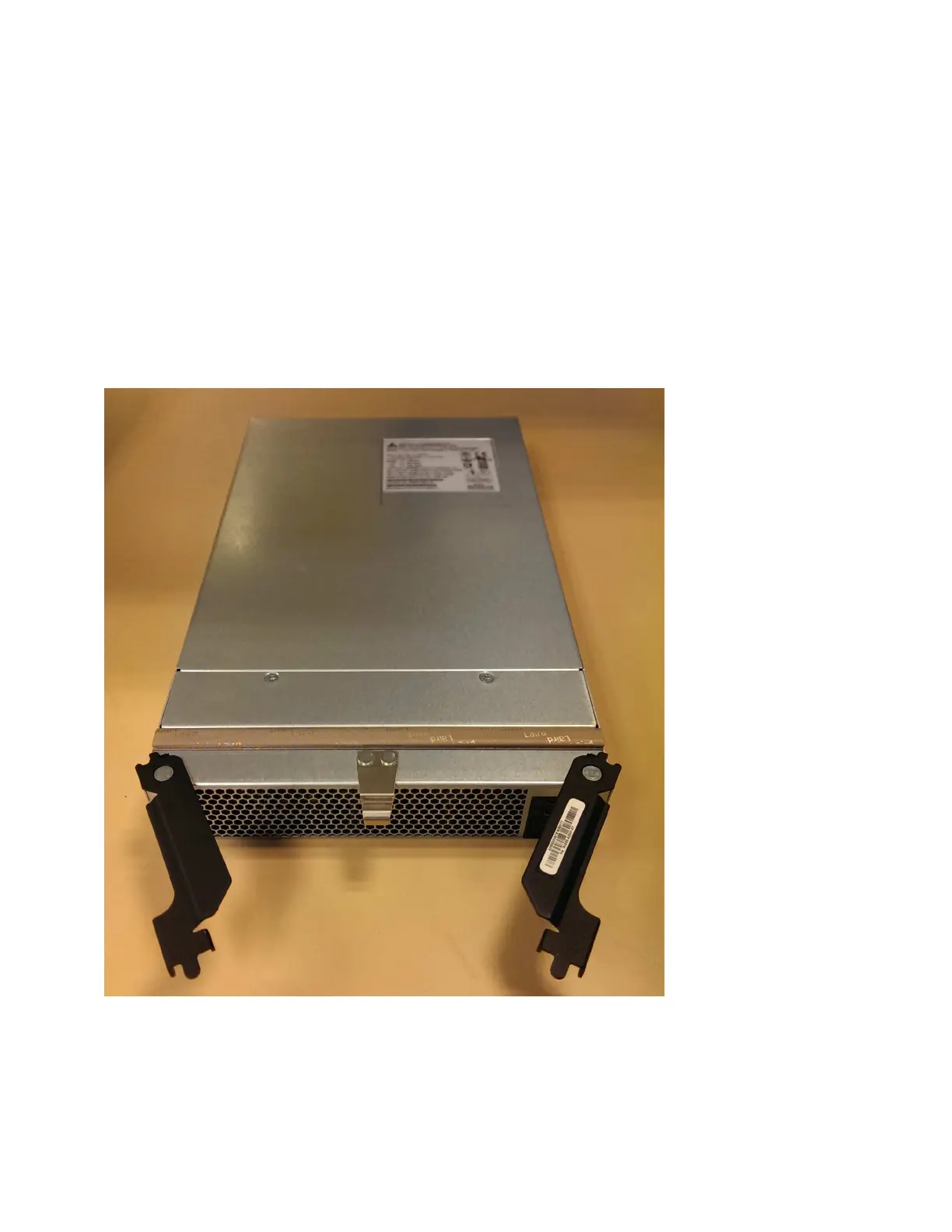

Figure 72. Preparing to install the power supply
80 Storwize V7000 Gen2 and Gen2+: Quick Installation Guide
