2. Move the upper CMA to the left to swing it out of the way.
a. To reattach the upper CMA to the rail, reverse the procedure.
3. To release the lower CMA, push the latch on the support rail connector ▌11▐ to
release it from the connector base ▌12▐ on the left rail.
4. Move the lower CMA to the right to swing it out of the way.
a. To reattach the lower CMA to the rail, reverse the procedure.
Installing or replacing the cable-management arm: 2076-92F
Use these procedures to install the cable-management arm (CMA) for the 2076-92F
expansion enclosure. You can also use these procedure to replace a faulty CMA
assembly.
About this task
As part of the initial installation of the 2076-92F expansion enclosure, you must
attach the CMA. You might also need to replace a faulty CMA with a new one
from FRU stock.
The cable management arm (CMA) consists of an upper arm and a lower arm
assembly, as Figure 51 on page 64 shows.

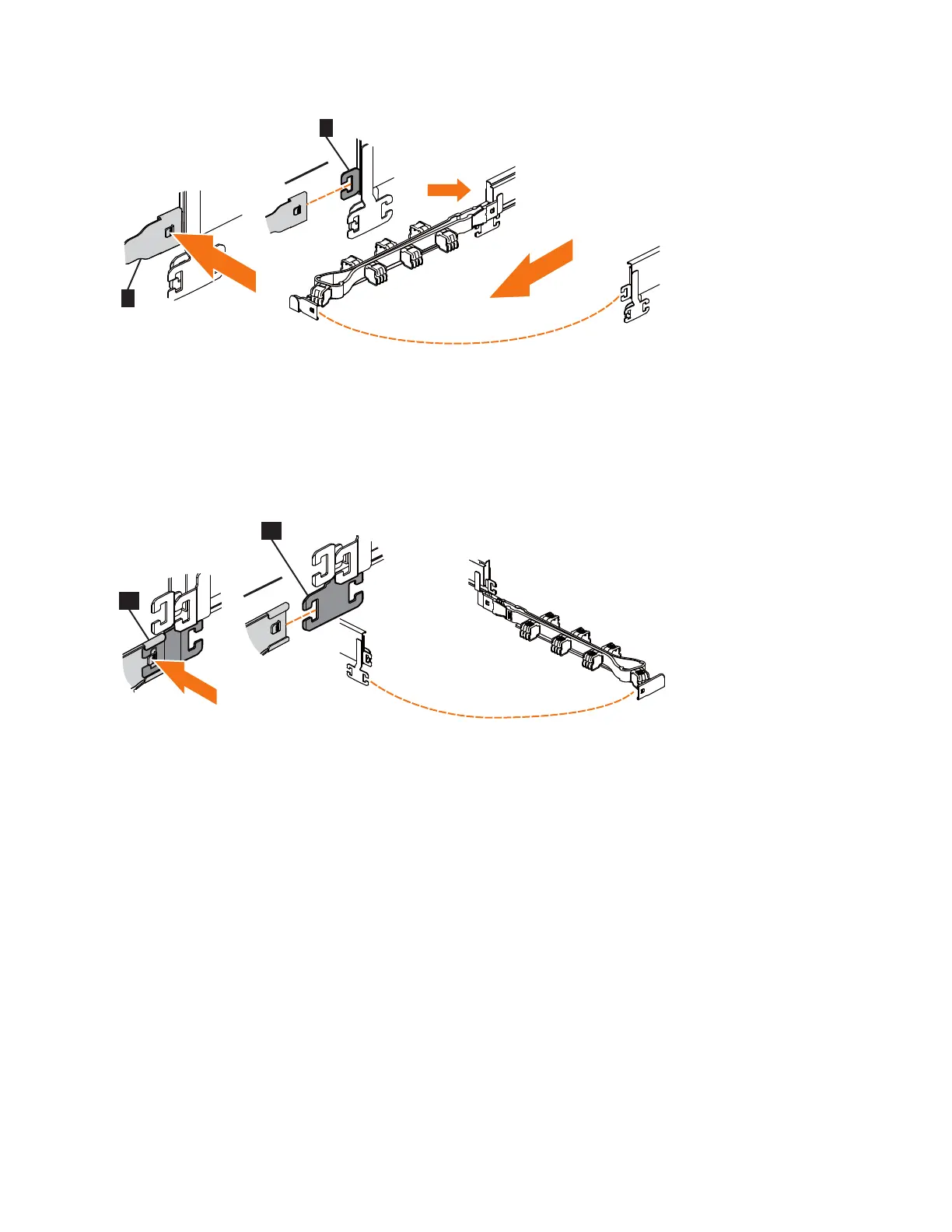

Figure 49. Release the upper CMA assembly
Figure 50. Release the lower CMA assembly
Chapter 2. Installing the Storwize V7000 Gen2 and Storwize V7000 Gen2+ hardware 63
