4.
Close
the
handles
on
the
PSU
and
ensure
the
handle
lock
clicks
in
to
place.
5.
V
erify
that
the
AC
input
and
the
DC
power
indicators
are
lit
on
the
front
of
the
PSU,
as
shown
in
Figure
74
on
page
82.

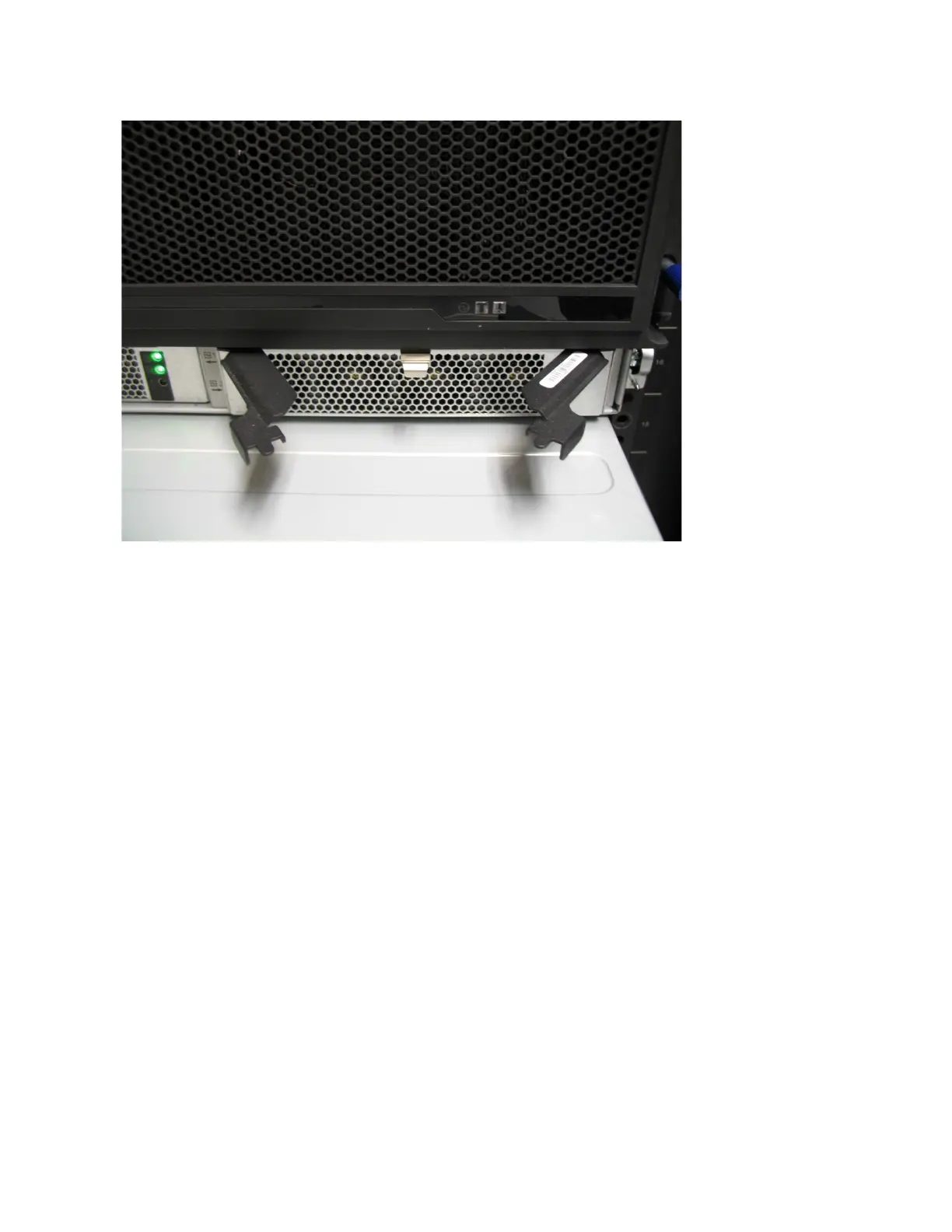

svc01033
Figure
73.
Install
the
power
supply
Chapter
2.
Installing
the
Storwize
V7000
Gen2
and
Storwize
V7000
Gen2+
hardwar
e
81
