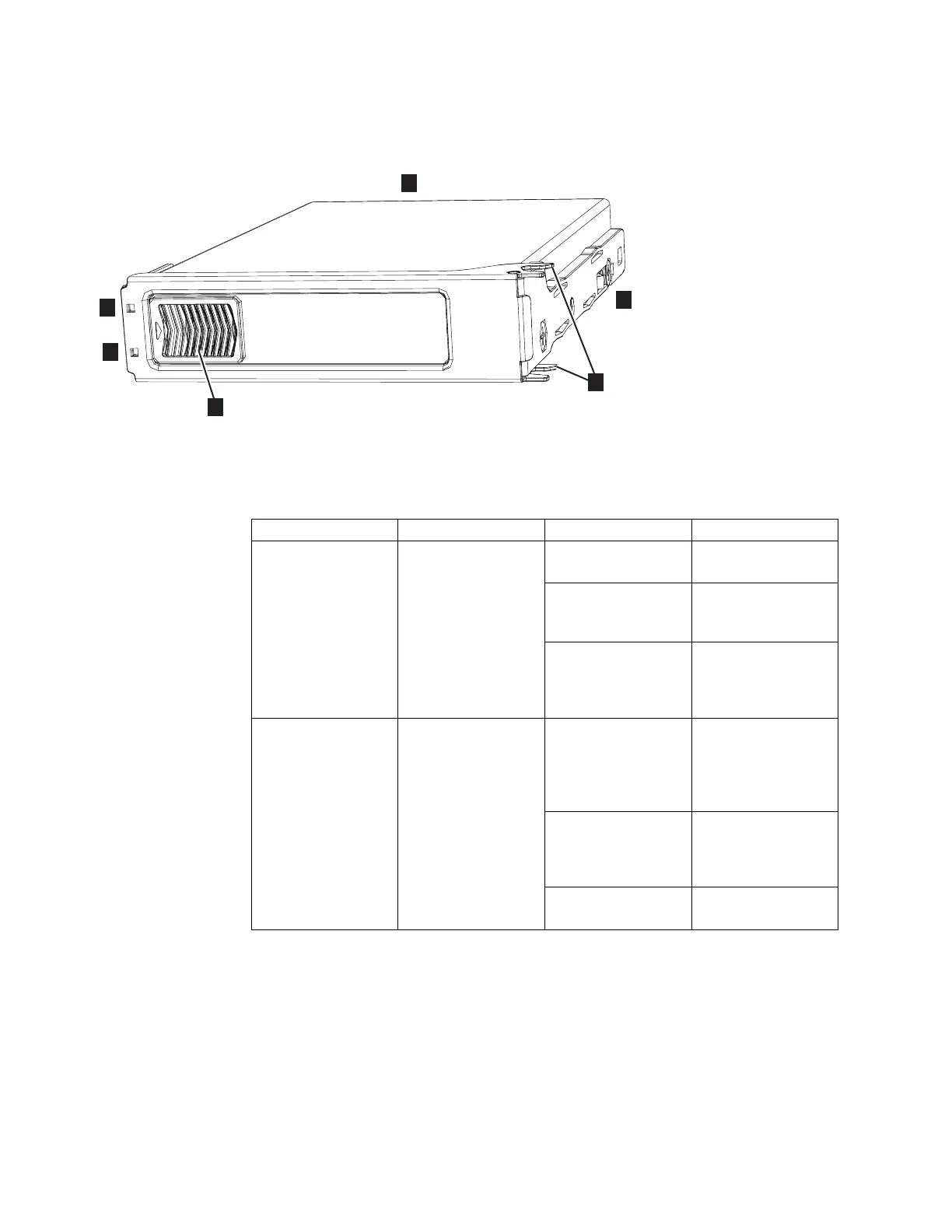

Figure 122 shows the components of a drive assembly. Each drive has an online
indicator (2) and fault indicator (3).
Table 17 describes the meaning of the LEDs on each drive.
Table 17. LED indicators on drives
Function Color Status Description
2 Activity Green On The drive is ready to
be used.
Flashing The drive is
operating and I/O is
occurring.
Off The drive is not
installed or an
installed drive is not
ready to be used.
3 Fault Amber On A fault occurred on
the drive. The LED is
turned off when the
drive is removed and
replaced.
Flash The drive is being
identified; a fault
might or might not
be detected.
Off The installed drive is
operating normally.
Figure 123 on page 135 shows the LEDs on a secondary expansion module.
1
2
3
6
svc01056
4
5
Figure 122. LEDs on a drive assembly
134 Storwize V7000 Gen2 and Gen2+: Quick Installation Guide
