5. Reconnect all the SAS cables to the appropriate SAS ports on the expansion
canister, as described in “Removing and installing a SAS cable: 2076-92F” on
page 85.
6. Reconnect the elbow of the lower cable management arm to the inner member
of the slide rail.
Removing or moving the cable-management arm: 2076-92F
You might need to move the cable-management arm (CMA) aside to complete
service tasks. If needed, you can also remove the CMA from the 2076-92F
expansion enclosure.
About this task
The cable management arm (CMA) consists of an upper and lower arm assembly,
as Figure 44 on page 59 shows. The upper and lower are independent of each
other. They can be installed, moved, or removed from the enclosure individually.

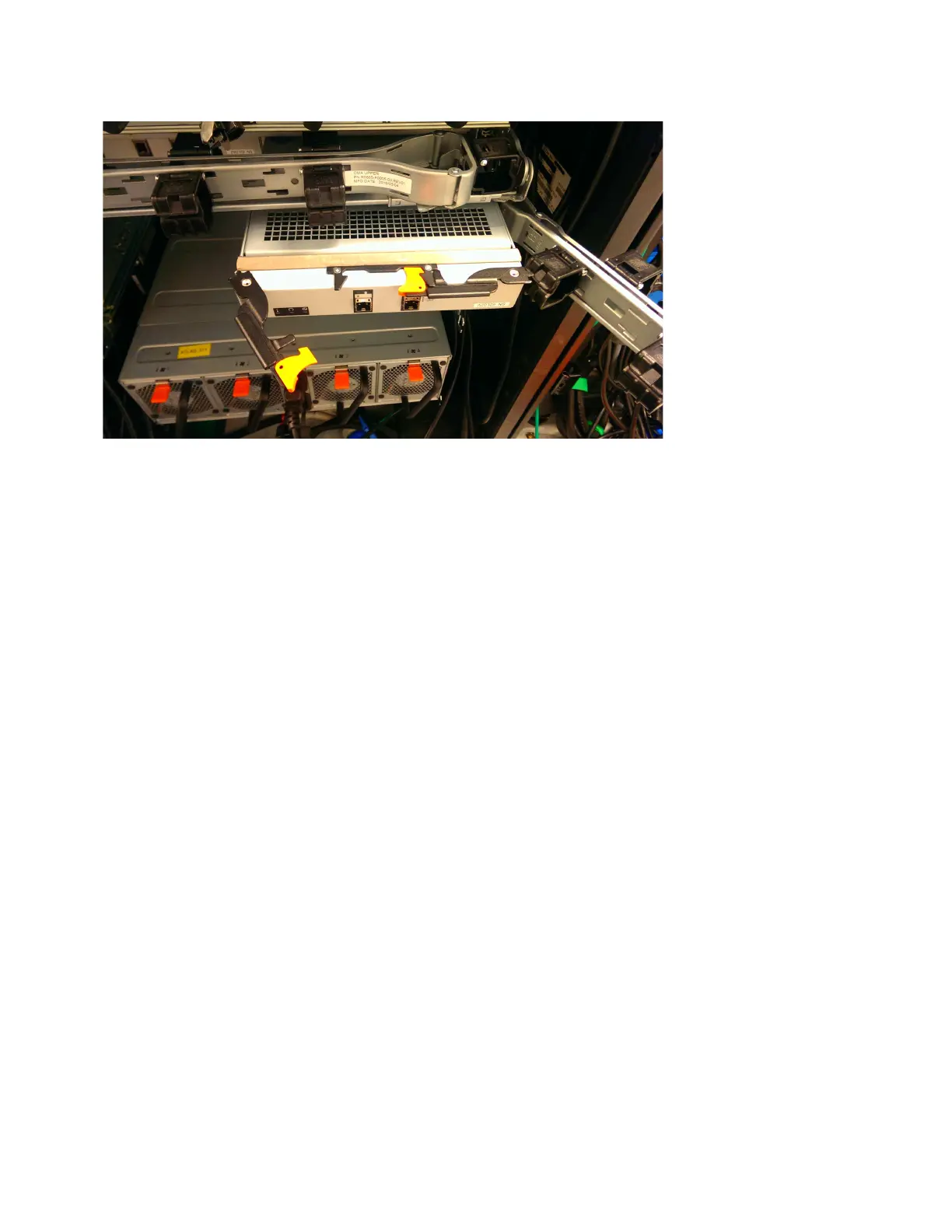

Figure 43. Install the expansion canister
58 Storwize V7000 Gen2 and Gen2+: Quick Installation Guide
