Figure 127 shows an example configuration with a pair of Ethernet cables
connected to port 3 in each canister.
Connecting Fibre Channel cables to a Fibre Channel host interface
adapter
If your Storwize V7000 system has 8 Gbps Fibre Channel 4-port host interface
adapters installed, you can use Fibre Channel cables to connect them to your Fibre
Channel SAN.
Procedure
To install the cables, complete the following steps.
1. Connect the required number of Fibre Channel cables. Refer to the “Planning”
section of the IBM Knowledge Center for instructions on determining the
number of cables required.
Note: Both canisters must have the same number of cables connected.
Figure 128 shows an example configuration with two Fibre Channel cables
connected to each canister.
2. If you want to connect additional Fibre Channel cables, make sure to connect
the same number of cables to each canister. Figure 129 on page 140 shows an
example configuration with four Fibre Channel cables connected to each
canister.
fab10012

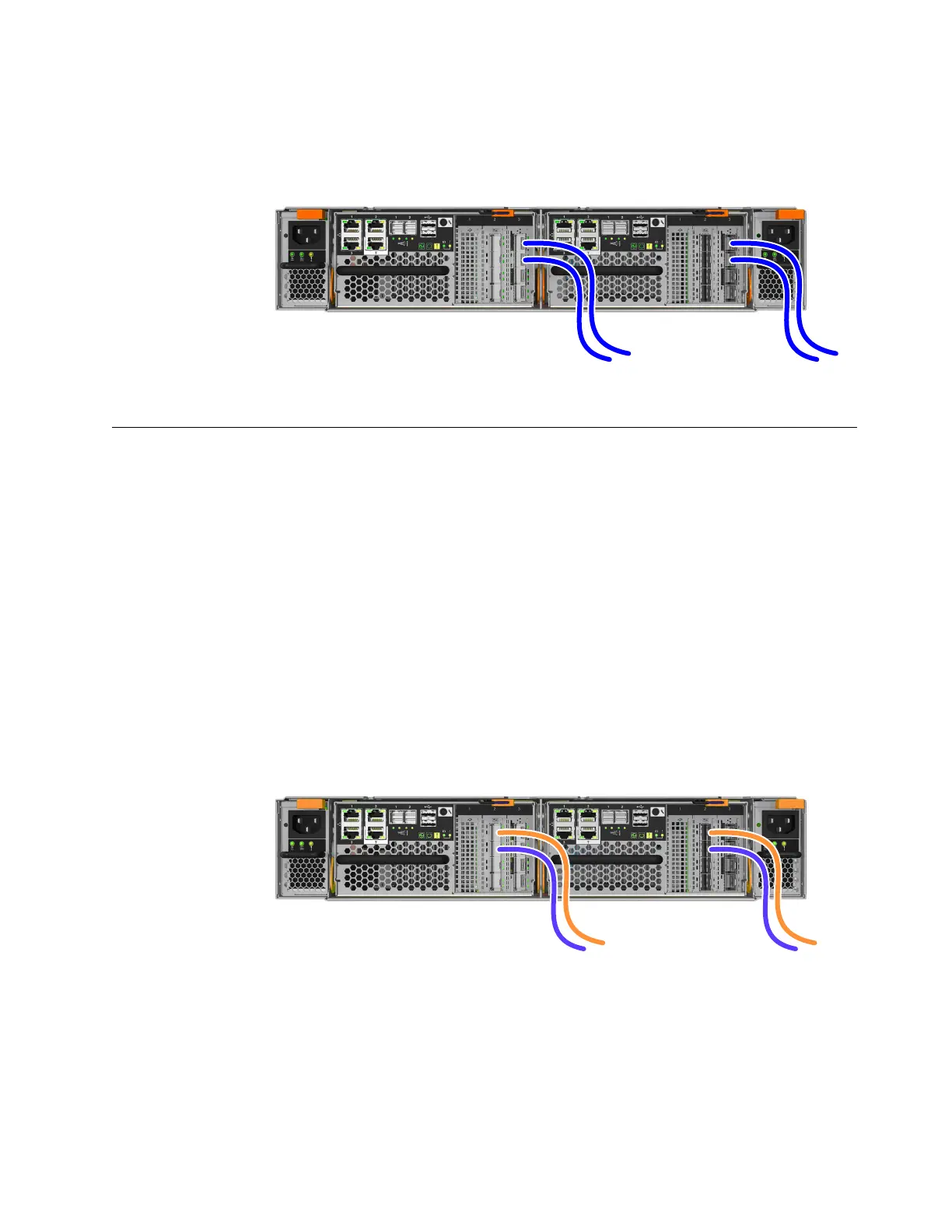

Figure 127. Example configuration with Ethernet cables connected to 10 Gbps iSCSI-FCoE
4-port host interface adapters
fab10013
Figure 128. Example configuration with two Fibre Channel cables per canister
Chapter 2. Installing the Storwize V7000 Gen2 and Storwize V7000 Gen2+ hardware 139

IBM StorVize V7000 Gen2 Specifications

General

Category	Storage
Maximum Drives	504
RAID Levels	0, 1, 5, 6, 10
Operating System	IBM Spectrum Virtualize
Power Supply	Dual redundant power supplies
Input Voltage	100-240 V AC
Humidity	8% to 80% non-condensing
Model	Storwize V7000 Gen2
Drive Interface	SAS
Form Factor	2U
Drive Types Supported	SAS SSDs, SAS HDDs
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI
Nodes	2
Operating Temperature	10°C to 35°C
Non-operating Temperature	-10°C to 50°C
