As Figure 52 shows, the support rail connectors of each CMA assembly are
installed on the rail hooks at the end of the support rails.
Procedure
1. Remove the loop straps from the upper and lower CMA assemblies. The straps
are used only for shipping.
Installing the upper CMA assembly
Figure 53 on page 65 shows the connectors on the upper CMA assembly.

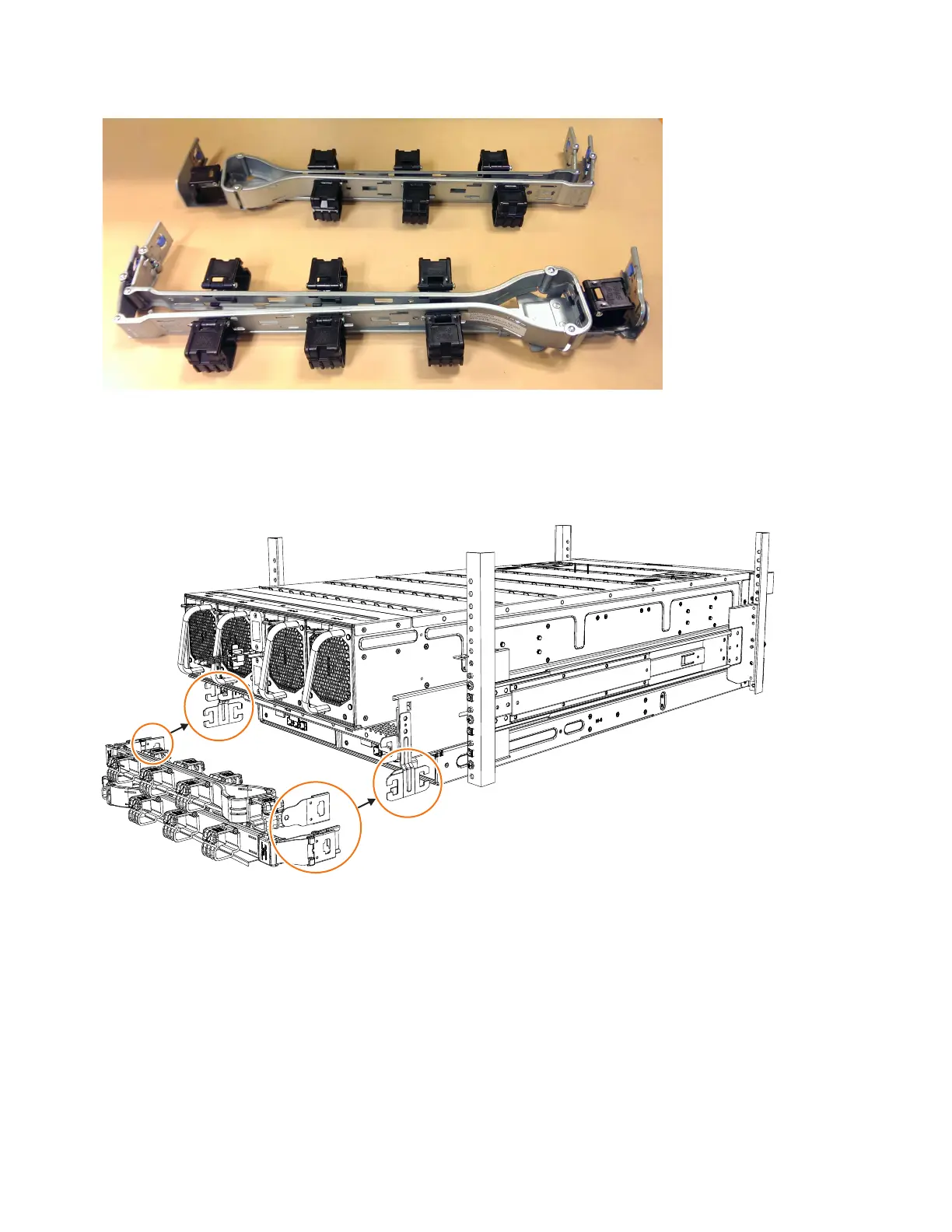

Figure 51. Upper and lower cable-management arms
Figure 52. Upper and lower cable-management arms
64 Storwize V7000 Gen2 and Gen2+: Quick Installation Guide
