Procedure
1. Use the slide rails to pull the enclosure out of the rack, as described in
“Removing an expansion enclosure from a rack: 2076-92F” on page 92. Ensure
that a mechanical lift is available to support the weight of the enclosure.
Remove the front (4U) fascia
2. Remove the front fascia by removing the two screws that attach the fascia to
the flange on each side of the chassis, as shown in Figure 76 on page 84.
x4
svc01042

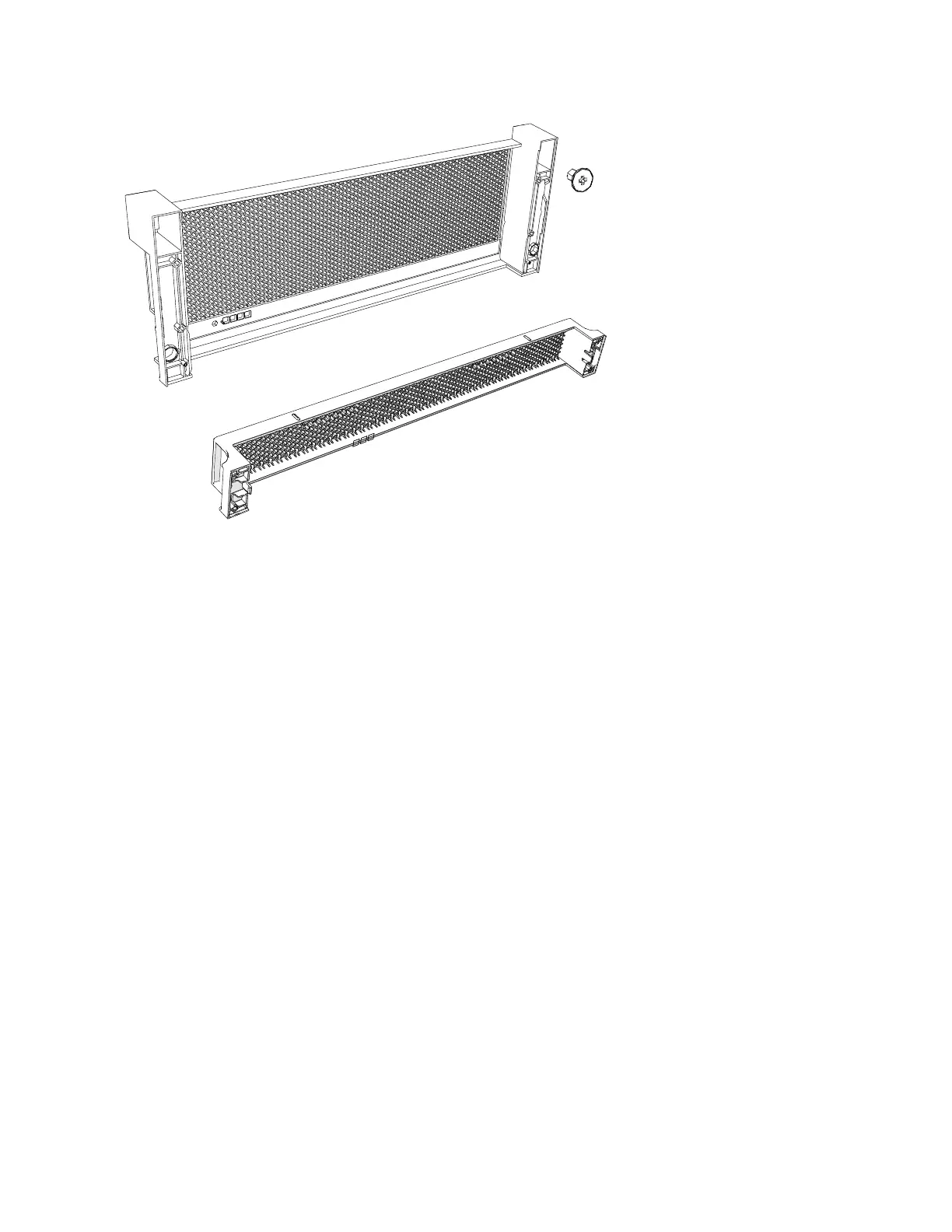

Figure 75. Fascia components on the expansion enclosure
Chapter 2. Installing the Storwize V7000 Gen2 and Storwize V7000 Gen2+ hardware 83

IBM StorVize V7000 Gen2 Specifications

General

Category	Storage
Maximum Drives	504
RAID Levels	0, 1, 5, 6, 10
Operating System	IBM Spectrum Virtualize
Power Supply	Dual redundant power supplies
Input Voltage	100-240 V AC
Humidity	8% to 80% non-condensing
Model	Storwize V7000 Gen2
Drive Interface	SAS
Form Factor	2U
Drive Types Supported	SAS SSDs, SAS HDDs
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI
Nodes	2
Operating Temperature	10°C to 35°C
Non-operating Temperature	-10°C to 50°C
