3. If a control enclosure is already installed, you can optionally add Fibre Channel
connections between all the control enclosures.
v This involves both the physical installation of the cables and configuring the
correct zoning on the Fibre Channel switches.
v Configure the network so that every node canister has at least two
connections to every node canister in a different control enclosure.
v You must configure the network before you attempt to add a control
enclosure to an existing system.
Powering on the system
After you install all hardware components, you must power on the system and
check its status.
About this task
Attention: Do not power on the system with any open bays or slots.
v Every unused drive bay must be occupied by a filler panel.
v Filler panels must be installed in all empty host interface adapter slots.
Open bays or slots disrupt the internal air flow, causing the drives to receive
insufficient cooling.
Procedure
To power on the system, complete the following steps.
1. Power on all expansion enclosures. Use the supplied power cords to connect
both power supply units of the enclosure to their power sources. If the power
sources have circuit breakers or switches, ensure that they are turned on. The
enclosure does not have power switches. Repeat this step for each expansion
enclosure in the system.
Note: Each enclosure has two power supply units. To provide power failure
redundancy, connect the two power cords to separate power circuits.
2. From the rear of the expansion enclosure, check the LEDs on each expansion
canister (see Figure 130 on page 141).

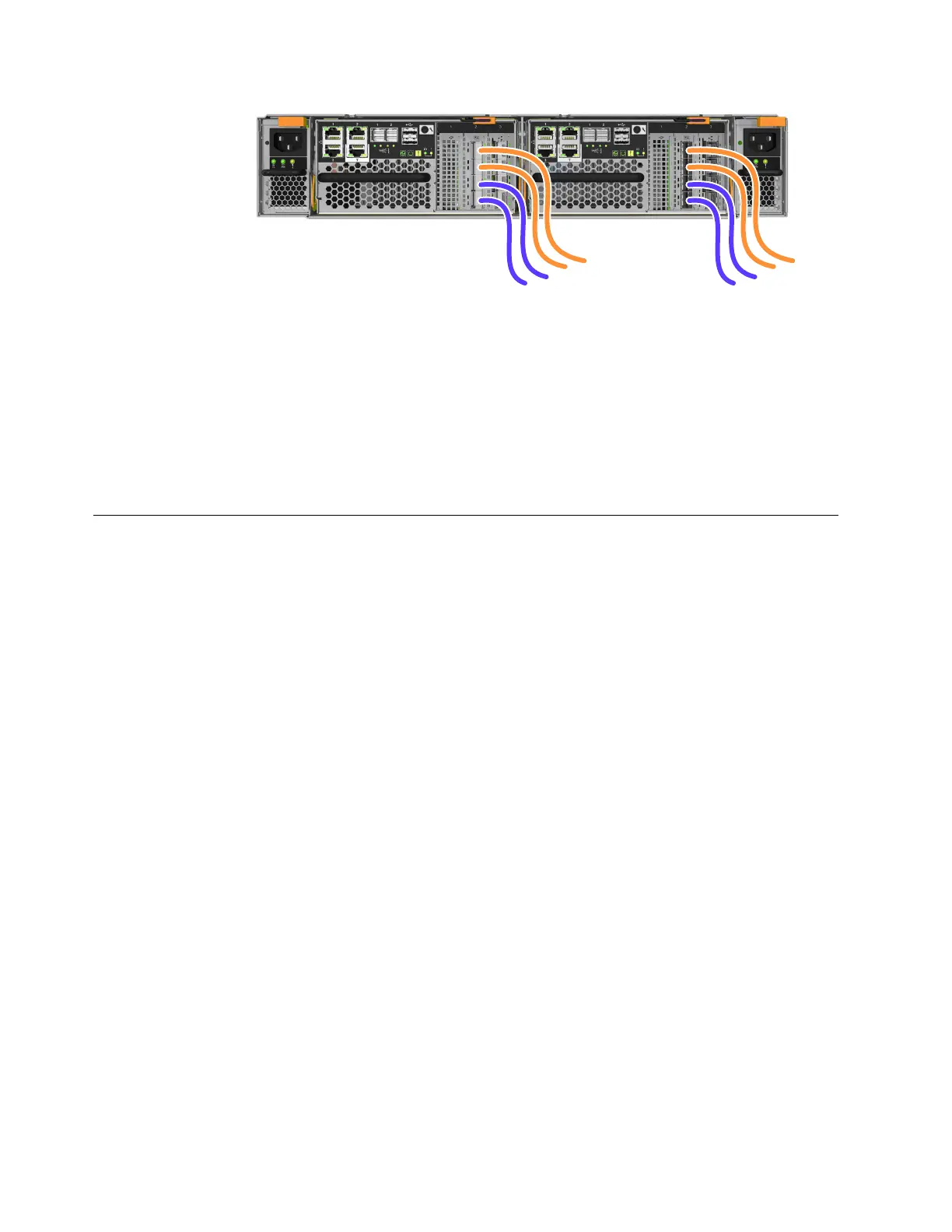

Figure 129. Example configuration with four Fibre Channel cables per canister
140 Storwize V7000 Gen2 and Gen2+: Quick Installation Guide
