IBM StorVize V7000 Gen2 User Manual

Expansion enclosure components
Figure 4 shows the location of the power supply units and expansion canisters.
v ▌1▐ Expansion canisters
v ▌2▐ Power supply units
Figure 5 on page 9 shows the LEDs and SAS port locations from the rear view of
an expansion canister.
v ▌1▐ LEDs
v ▌2▐ SAS ports
Each canister has two SAS ports that are numbered 1 on the left and 2 on the right.
Port 1 is used to connect to a SAS expansion port on a node canister or port 2 of
another expansion canister.
fab10051

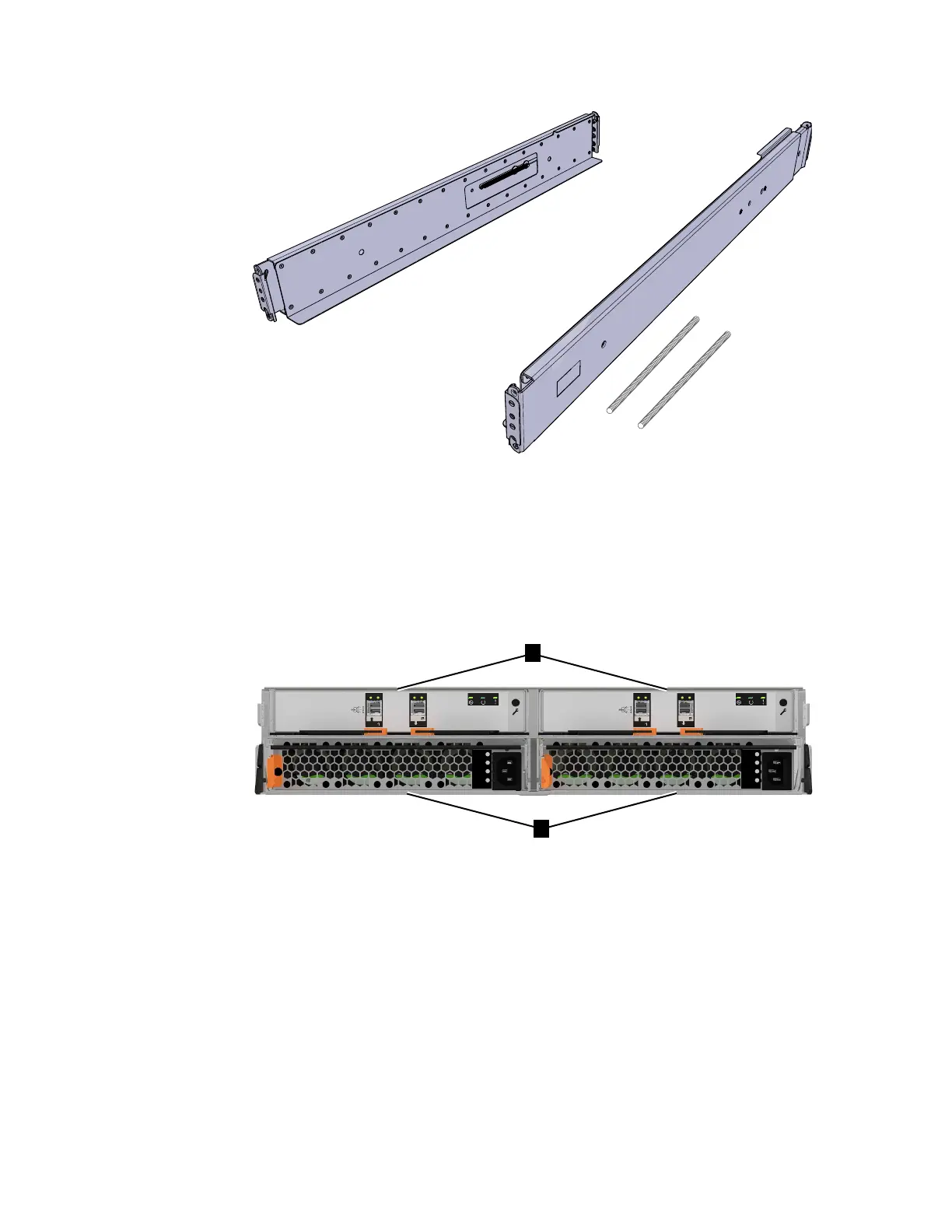

Figure 3. Control enclosure support rails of a Storwize V7000 system
fab10006
2
1
IN
DC
!
OK
IN
DC
!
OK
Figure 4. Rear view of a Storwize V7000 expansion enclosure
8 Storwize V7000 Gen2 and Gen2+: Quick Installation Guide

IBM StorVize V7000 Gen2 Specifications

General

Category	Storage
Maximum Drives	504
RAID Levels	0, 1, 5, 6, 10
Operating System	IBM Spectrum Virtualize
Power Supply	Dual redundant power supplies
Input Voltage	100-240 V AC
Humidity	8% to 80% non-condensing
Model	Storwize V7000 Gen2
Drive Interface	SAS
Form Factor	2U
Drive Types Supported	SAS SSDs, SAS HDDs
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI
Nodes	2
Operating Temperature	10°C to 35°C
Non-operating Temperature	-10°C to 50°C
