6. Use the M5 screws to install the outer rail member and bracket assembly to the
rack, as shown in Figure 38.
For example, Figure 39 on page 49 shows the front of the rail that is attached to
the frame.
click
1
2
M4x6L
locking
svc01081

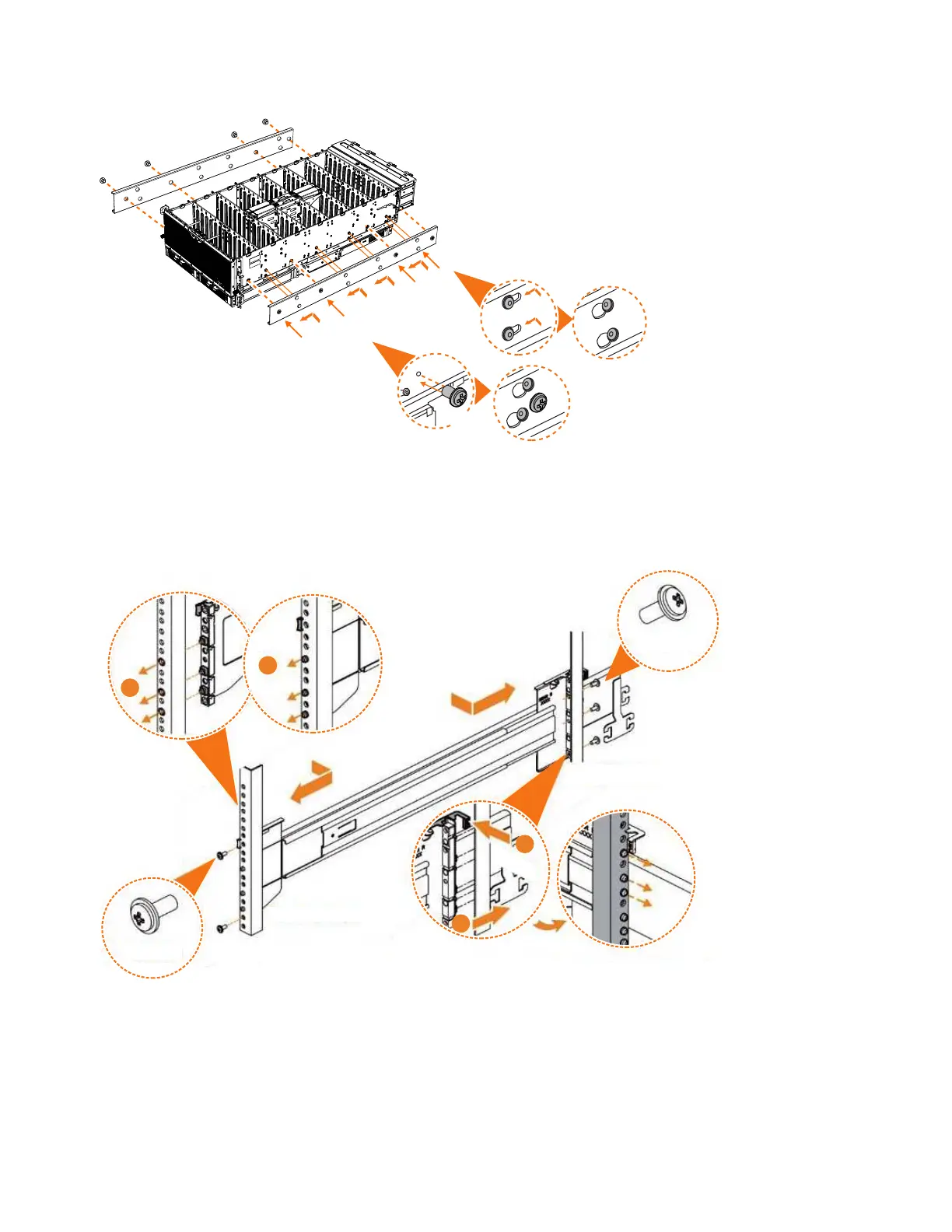

Figure 37. Attaching the inner rail section to the enclosure
1
2
Click!
M5x13L
Rear Bracket
3
1
Click!
1
2
PUSH
Front Bracket
2
M5x13L
svc00966
Figure 38. Installing the rail assembly to the rack frame
48 Storwize V7000 Gen2 and Gen2+: Quick Installation Guide

IBM StorVize V7000 Gen2 Specifications

General

Category	Storage
Maximum Drives	504
RAID Levels	0, 1, 5, 6, 10
Operating System	IBM Spectrum Virtualize
Power Supply	Dual redundant power supplies
Input Voltage	100-240 V AC
Humidity	8% to 80% non-condensing
Model	Storwize V7000 Gen2
Drive Interface	SAS
Form Factor	2U
Drive Types Supported	SAS SSDs, SAS HDDs
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI
Nodes	2
Operating Temperature	10°C to 35°C
Non-operating Temperature	-10°C to 50°C
