Table 13. LEDs on the secondary expander modules (continued)
LED Color Status Description
Fault ▌2▐ Amber On Not used.
Blink The secondary expander
module is being identified.
Off Normal operation.
This task assumes that the following conditions were met:
v The expansion enclosure is slid out from the rack, as described in “Removing an
expansion enclosure from a rack: 2076-92F” on page 92.
v The top cover was removed, as described in “Removing the top cover: 2076-92F”
on page 44.
Procedure
1. Identify the secondary expander module to be replaced; refer to Table 13 on
page 107.
2. Press the release buttons on top of the secondary expander module to release
the handles.
3. Rotate the handles outward to the unlocked position.
4. Carefully lift the secondary expander module out of the enclosure, as shown in
Figure 95.
Important: To avoid electric shock after you remove the secondary expander
module, do not touch the connectors, which are shown in Figure 96 on page
109.

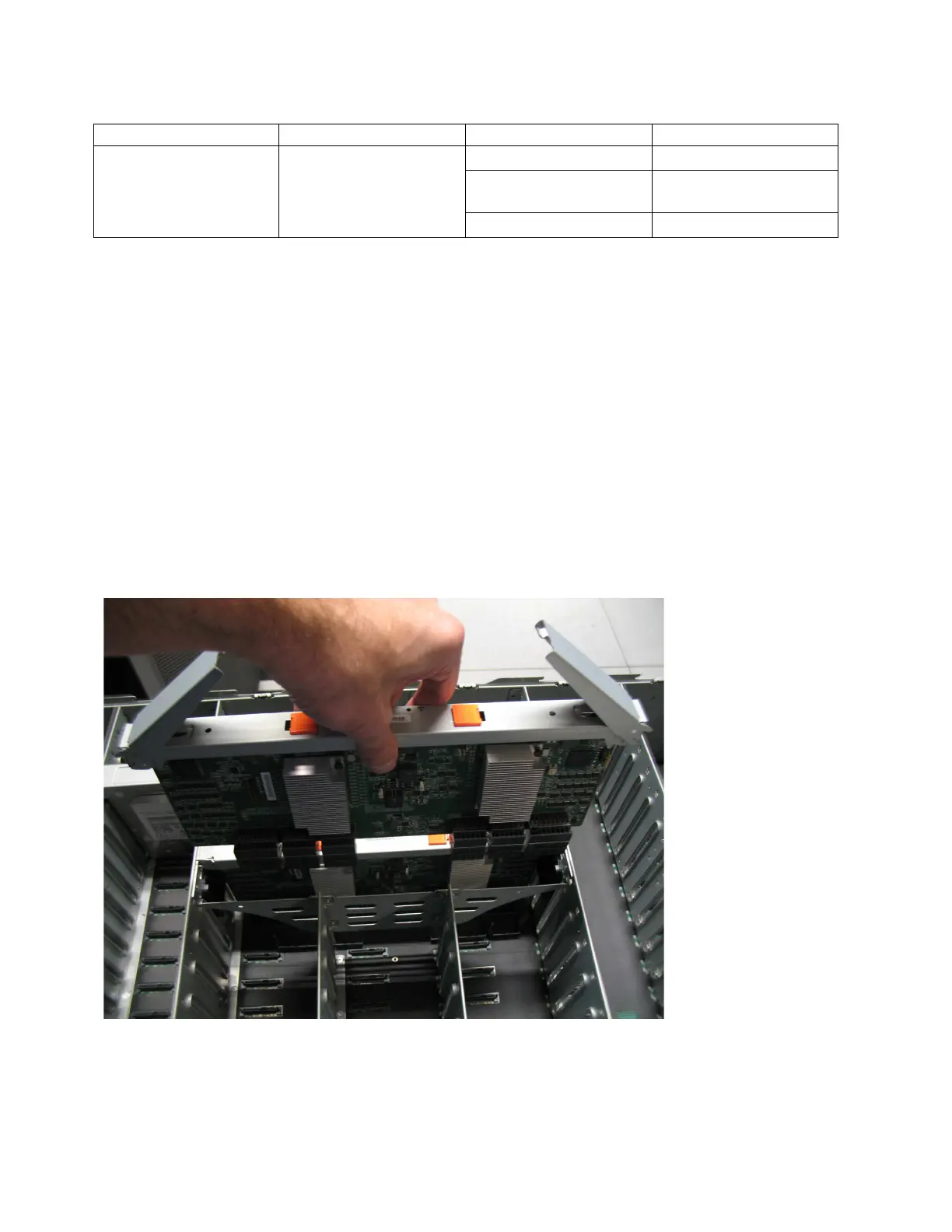

Figure 95. Remove the secondary expander module
108 Storwize V7000 Gen2 and Gen2+: Quick Installation Guide
