IBM StorVize V7000 Gen2 - Front Fascia of the 2076-92 F Expansion; Features on the Rear of the 2076-92 F Expansion

Components on the rear of the enclosure
Figure 26 shows the components on the rear of the 2076-92F expansion enclosure.
Four fan modules and two expansion enclosures are accessible from the back of the
enclosure.
▌1▐ Power cable connector for PSU 2
▌2▐ Power cable retention clamps
x4
svc01042

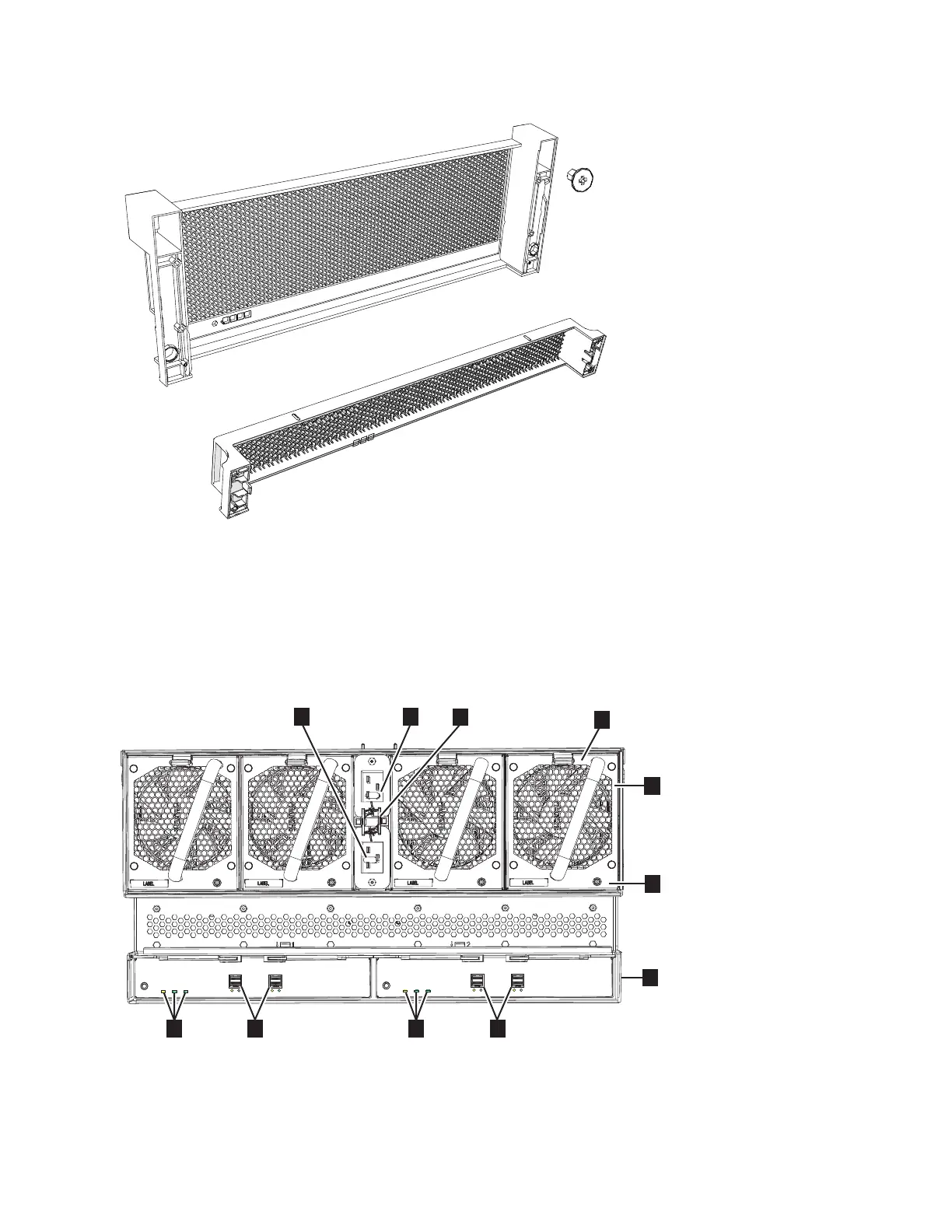

Figure 25. Front fascia of the 2076-92F expansion enclosure
svc01010
8
77
8
1
2
4
5
3
6
9
Figure 26. Features on the rear of the 2076-92F expansion enclosure
Chapter 2. Installing the Storwize V7000 Gen2 and Storwize V7000 Gen2+ hardware 39
