▌1▐ Online indicator
▌2▐ Fault indicator
Table 18 describes the meaning of the LEDs on each secondary expansion module.
Table 18. LED indicators on secondary expansion modules
Function Color Status Description
▌1▐ Power Green On The secondary
expansion module is
receiving power.
Flashing Not used.
Off The secondary
expansion module is
not receiving power.
▌2▐ Fault Amber On Not used.
Flash The secondary
expansion module is
being identified.
Off The secondary
expansion module is
operating normally.
LEDs on the rear of the expansion enclosure
Figure 124 on page 136 shows the rear view of a 2076-92F expansion enclosure.
LEDs on the rear of the enclosure provide information about each fan module,
each expansion canister, and SAS links.

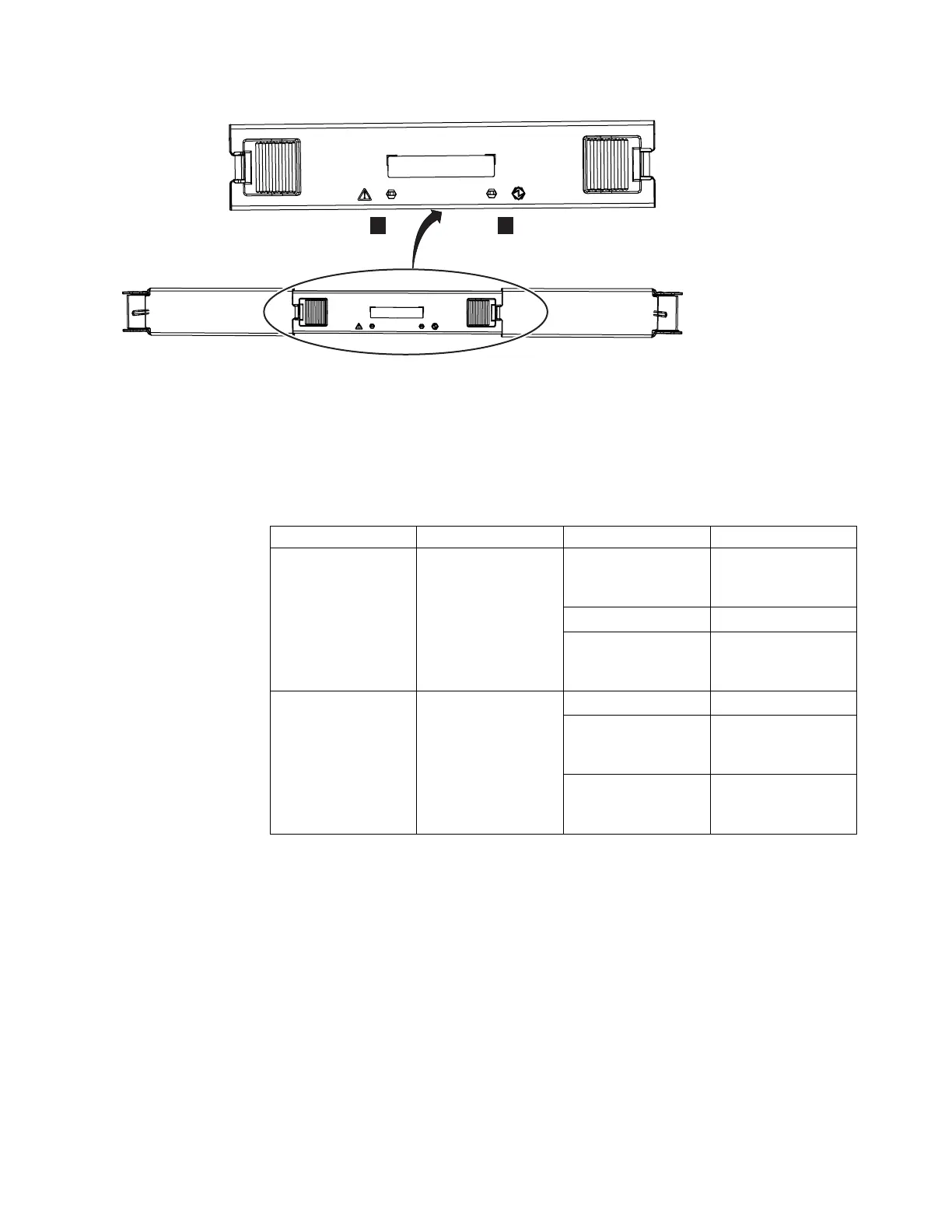

Figure 123. LEDs on a secondary expansion module
Chapter 2. Installing the Storwize V7000 Gen2 and Storwize V7000 Gen2+ hardware 135
