2. Carefully insert the fan module into the chassis until it clicks in place, as shown
in Figure 82.
Replacing all fan modules
3. Repeat steps 1 on page 88 and 2 for each fan module to be replaced.
4. Power on the expansion enclosure.
Installing or replacing a fan interface board: 2076-92F
You can replace a fan interface board (FIB) in a 2076-92F expansion enclosure.
Before you begin
This task assumes that the following conditions are met:
v You have removed the fan interface board, following the process described in
“Removing a fan interface board: 2076-92F” on page 113.
v All power cables were removed from the enclosure, as described in “Powering
off the expansion enclosure: 2076-92F” on page 130.

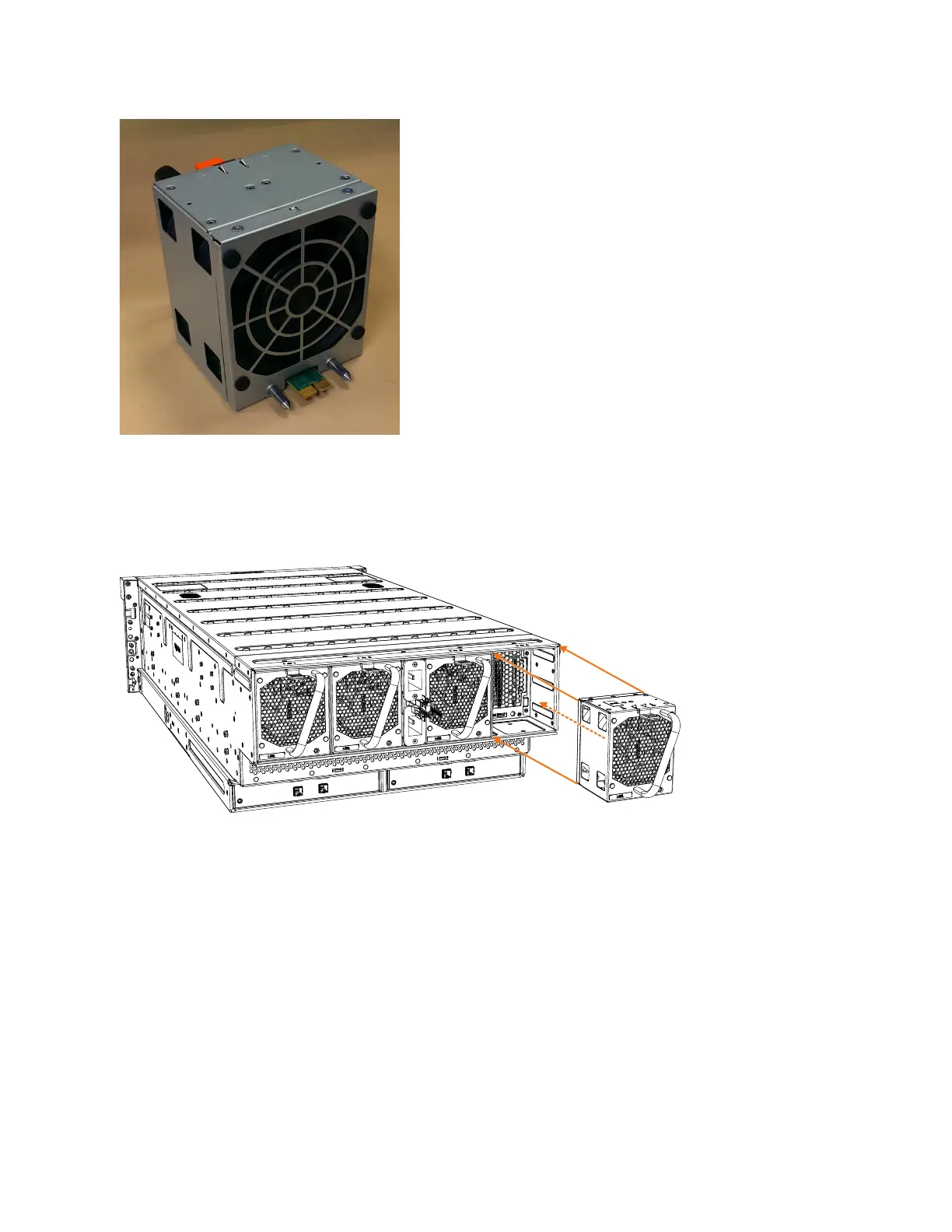

Figure 81. Fan module orientation
Figure 82. Replace fan module
Chapter 2. Installing the Storwize V7000 Gen2 and Storwize V7000 Gen2+ hardware 89
