To complete many service tasks, you can swing the CMA assemblies away from
the expansion enclosure. You do not have to completely remove the CMA
assemblies from the enclosure. For these service tasks, complete step 1 on page 62
through step 4 on page 63 in “Moving the cable management arms” on page 61.
However, you might need to remove a CMA assembly from the 2076-92F
expansion enclosures. To do so, complete step 1 on page 60 through step 8 on page
61 in following procedure.
Procedure
Remove the upper CMA assembly
The connectors of the CMA are installed on the rail hooks at the end of the
support rails. Figure 45 on page 60 shows the connectors on the upper CMA
assembly.
svc01017

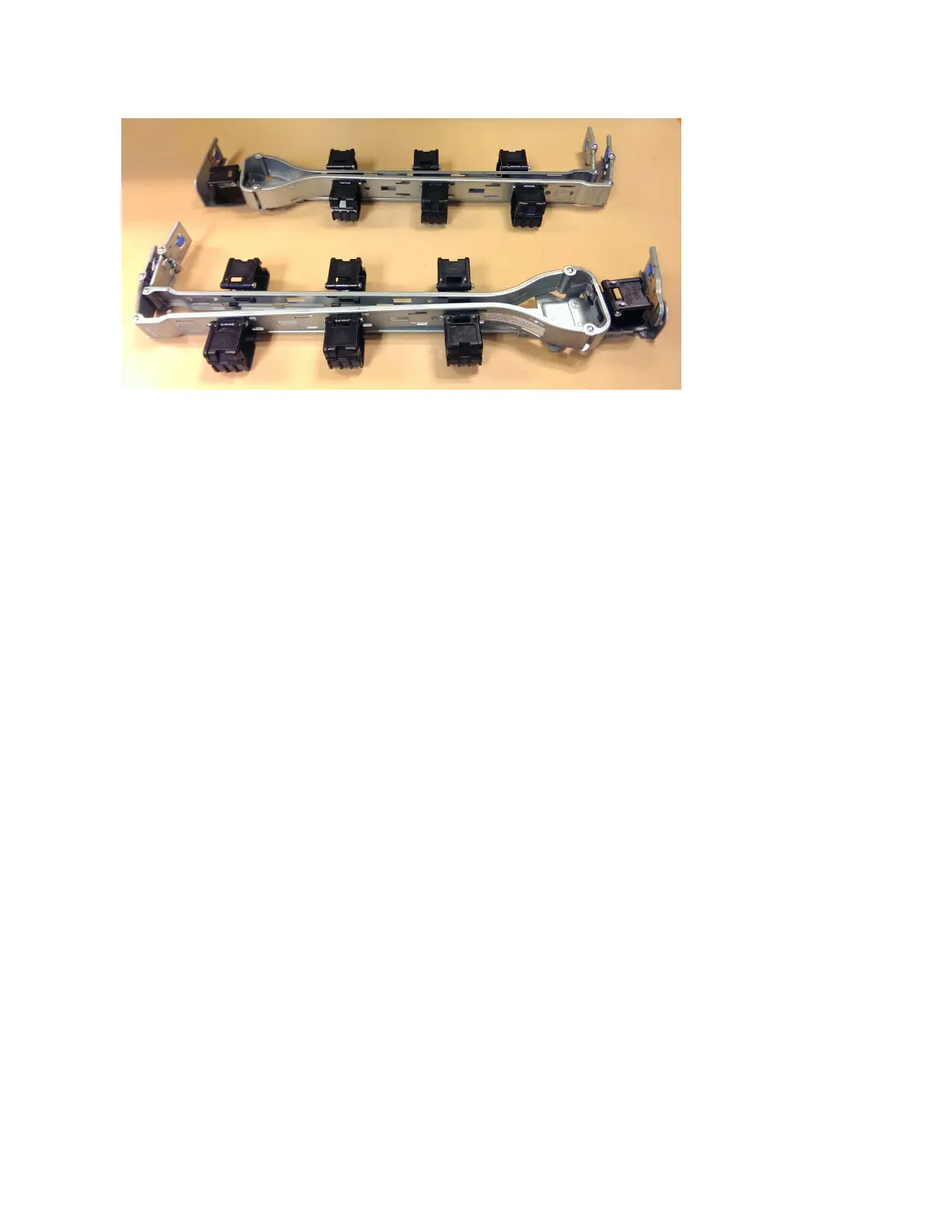

Figure 44. Upper and lower cable-management arms
Chapter 2. Installing the Storwize V7000 Gen2 and Storwize V7000 Gen2+ hardware 59

IBM StorVize V7000 Gen2 Specifications

General

Category	Storage
Maximum Drives	504
RAID Levels	0, 1, 5, 6, 10
Operating System	IBM Spectrum Virtualize
Power Supply	Dual redundant power supplies
Input Voltage	100-240 V AC
Humidity	8% to 80% non-condensing
Model	Storwize V7000 Gen2
Drive Interface	SAS
Form Factor	2U
Drive Types Supported	SAS SSDs, SAS HDDs
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI
Nodes	2
Operating Temperature	10°C to 35°C
Non-operating Temperature	-10°C to 50°C
