IBM StorVize V7000 Gen2 User Manual

▌1▐ Inner connector on upper CMA
▌2▐ Connector base on inner rail member
▌3▐ Outer connector on upper CMA
▌4▐ Connector base on outer rail member
▌5▐ Support rail connector on upper CMA
▌6▐ Connector base on outer rail member
2. Install the inner connector of the upper CMA assembly (▌1▐) to the inner
member of the left support rail (▌2▐), as shown in Figure 54 from the outer and
inner support rails.
3. Install the inner connector of the upper CMA assembly (▌3▐) to the inner
member of the left support rail (▌4▐), as shown in Figure 55 on page 66.
svc01035
1
2
3
4
5
6

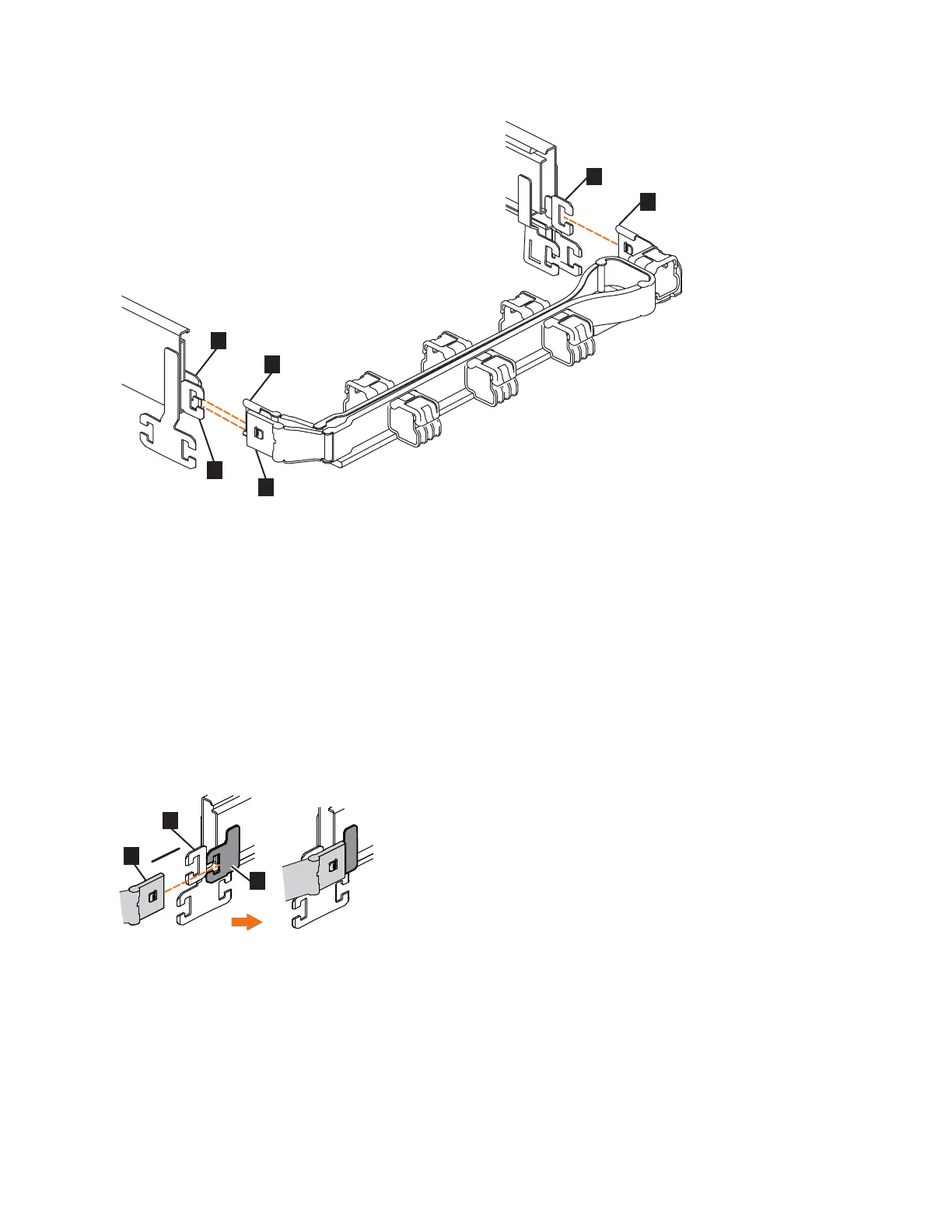

Figure 53. Connectors for the cable management arm
1
4
2
svc01036
Figure 54. Install the inner connector of the upper CMA to the inner member of the support rail
Chapter 2. Installing the Storwize V7000 Gen2 and Storwize V7000 Gen2+ hardware 65
