498 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

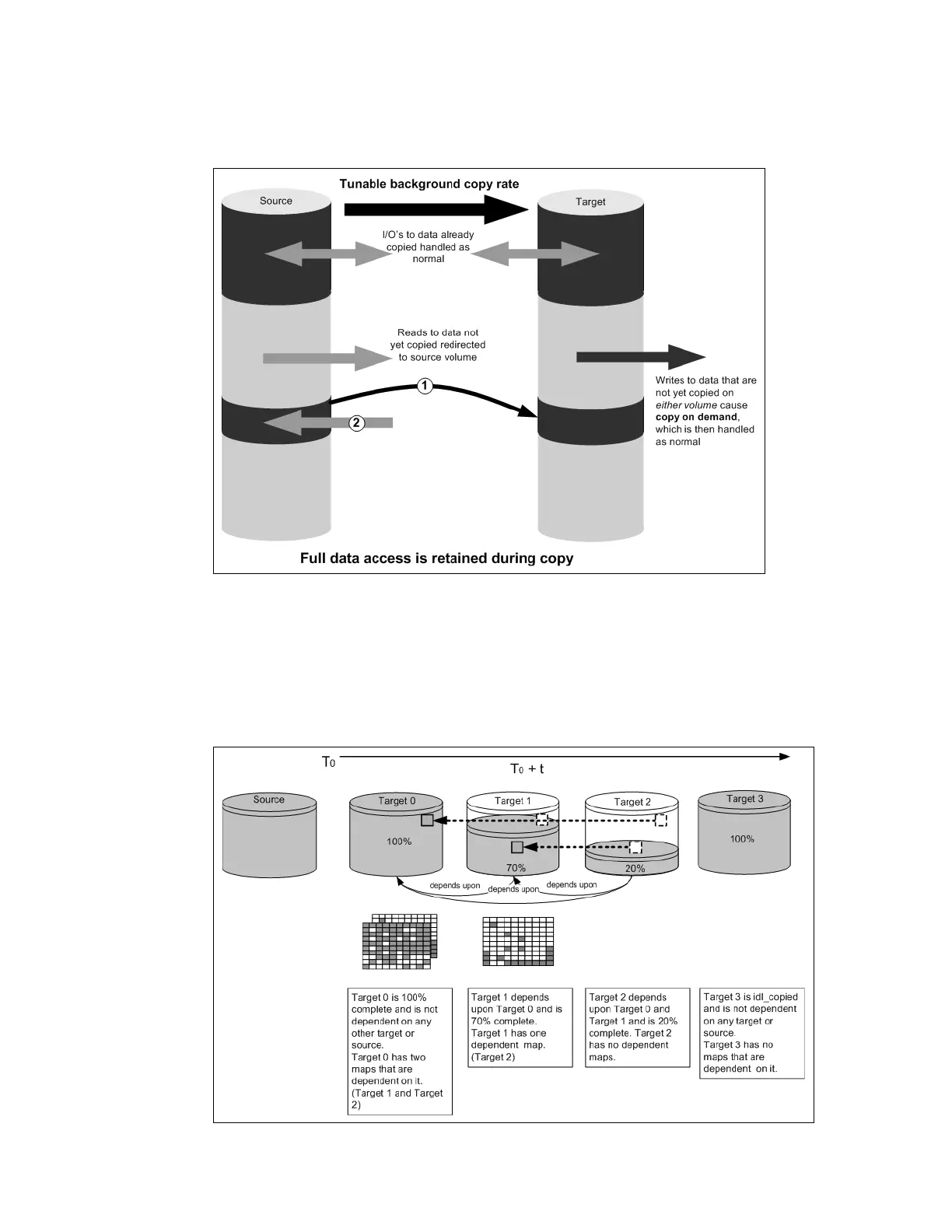

Figure 10-6 shows how the background copy runs while I/Os are handled according to the

indirection layer algorithm.

Figure 10-6 I/O processing with FlashCopy

10.3.6 Interaction and dependency between multiple target FlashCopy

mappings

Figure 10-7 shows a set of four FlashCopy mappings that share a common source. The

FlashCopy mappings target volumes Target 0, Target 1, Target 2, and Target 3.

Figure 10-7 Interactions among multiple target FlashCopy mappings
