378 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

8.1.1 Modifying volume mappings

Complete the following steps:

1. From the Hosts panel, after you select a host and click Actions, select Modify Volume

Mappings to open the Modify Host Mappings panel, as shown in Figure 8-4.

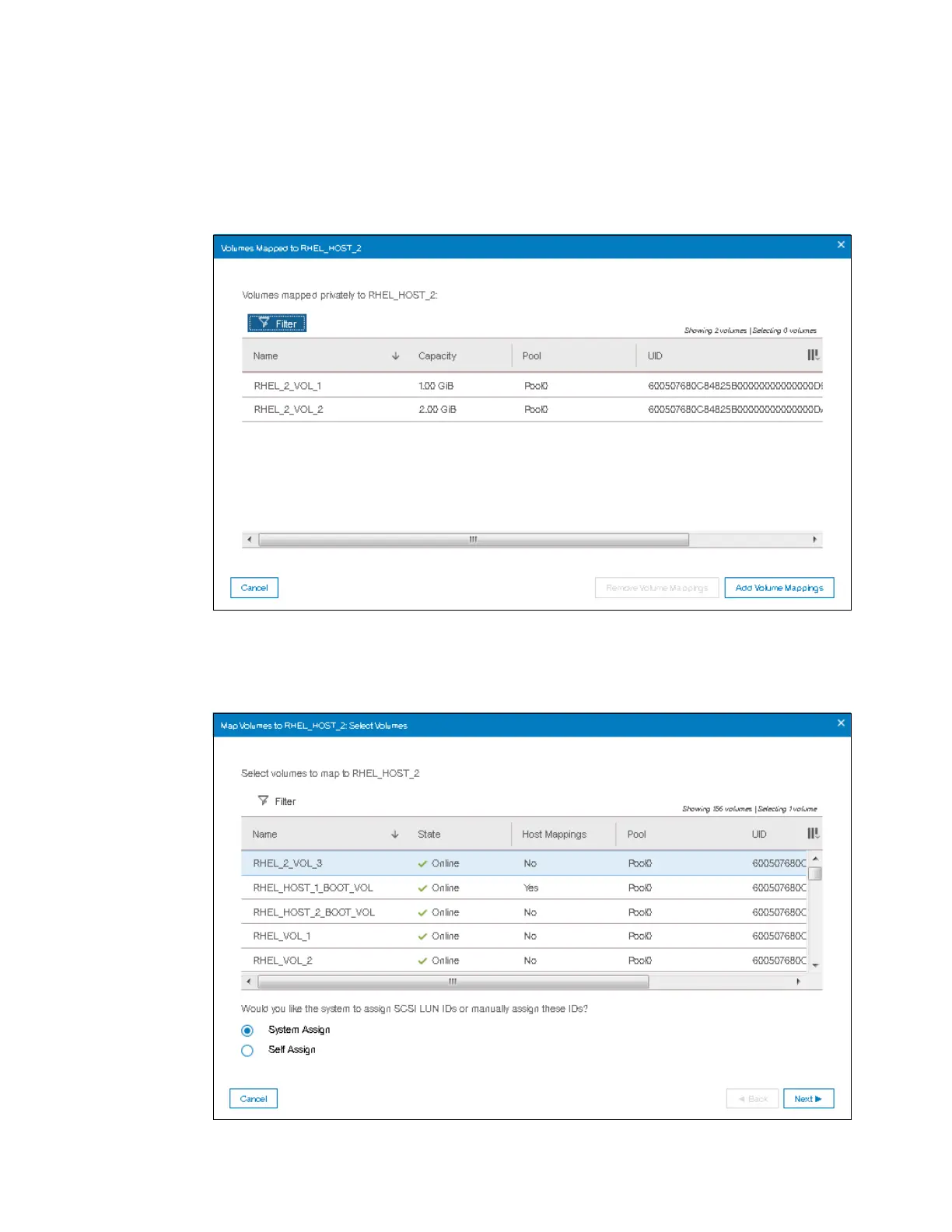

Figure 8-4 Host mappings panel

2. Click Add Volume Mappings. A window will come up listing all the additional volumes that

can be mapped to the selected host as shown in Figure 8-5.

Figure 8-5 Select a host to modify
