172 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

MDisks are managed through the MDisks by Pools panel. To access the MDisks by Pools

panel browse to Pools → MDisks by Pools, as shown in Figure 4-40.

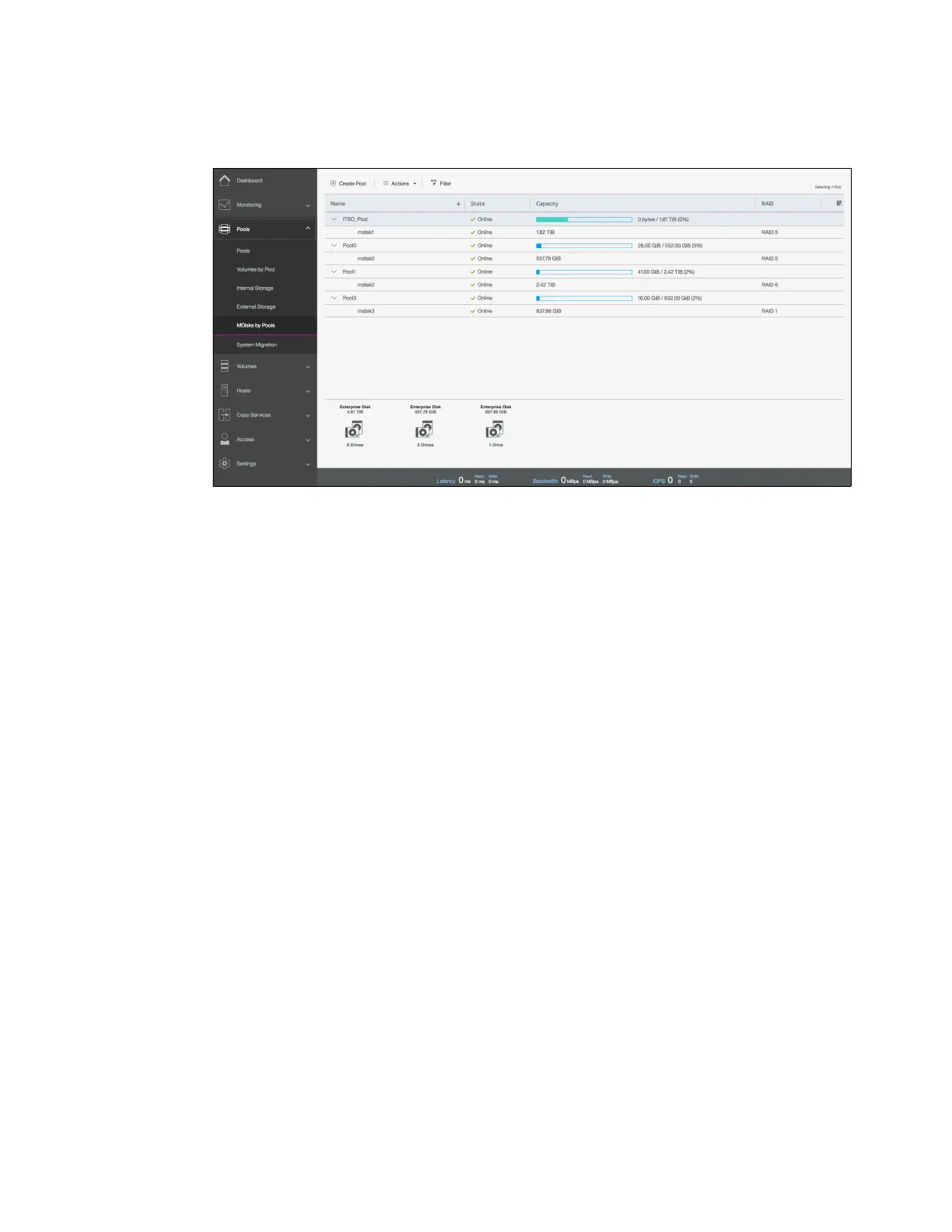

Figure 4-40 MDisks by Pools panel

The panel lists all the MDisks available in the system under the storage pool to which they

belong.

4.3.1 Assigning managed disks to storage pools

MDisks can be assigned to a storage pool at any time to increase the number of extents

available in the pool. The system automatically balances volume extents between the MDisks

to provide the best performance to the volumes.

Arrays are created and assigned to a storage pool at the same time.
