Attention: Do not touch the connectors on the microprocessor and the
microprocessor socket.
7. Install the microprocessor on the microprocessor socket:
a. Touch the static-protective package that contains the new microprocessor
to any unpainted on the chassis or any unpainted metal surface on any
other grounded rack component; then, carefully remove the microprocessor
from the package.

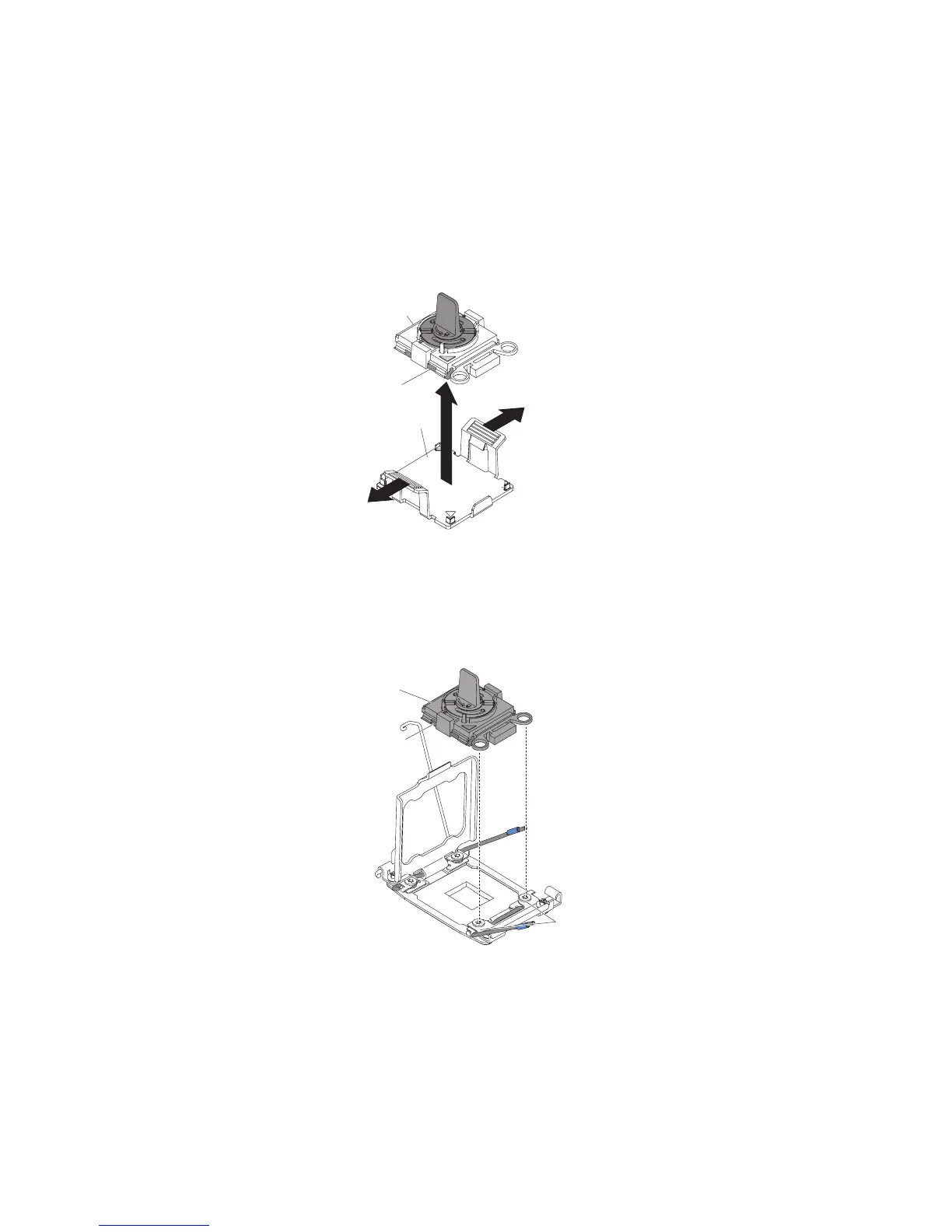

b. Release the sides of the cover and remove the cover from the installation
tool. The microprocessor is preinstalled on the installation tool.
Installation tool
Microprocessor
Cover
Note: Do not touch the microprocessor contacts. Contaminants on the
microprocessor contacts, such as oil from your skin, can cause connection
failures between the contacts and the socket.
c. Align the installation tool with the microprocessor socket. The installation
tool rests flush on the socket only if properly aligned.
Installation tool
Microprocessor
Alignment
pins
d. Twist the handle on the microprocessor tool counterclockwise to insert the
microprocessor into the socket. The microprocessor is keyed to ensure that
the microprocessor is installed correctly. The microprocessor rests flush on
the socket only if properly installed.
284 IBM System x3650 M4 Type 7915: Problem Determination and Service Guide
